VEVOR M9 Portable Power Station with 200W Solar Panel User Manual

Sissejuhatus

This manual provides essential instructions for the safe and efficient operation of your VEVOR M9 Portable Power Station and 200W Solar Panel. This portable power station features a 1008Wh LiFePO4 battery and an 1800W output, designed to provide reliable power for outdoor adventures, emergency backup, and various portable electronic devices. Please read this manual thoroughly before use and retain it for future reference.

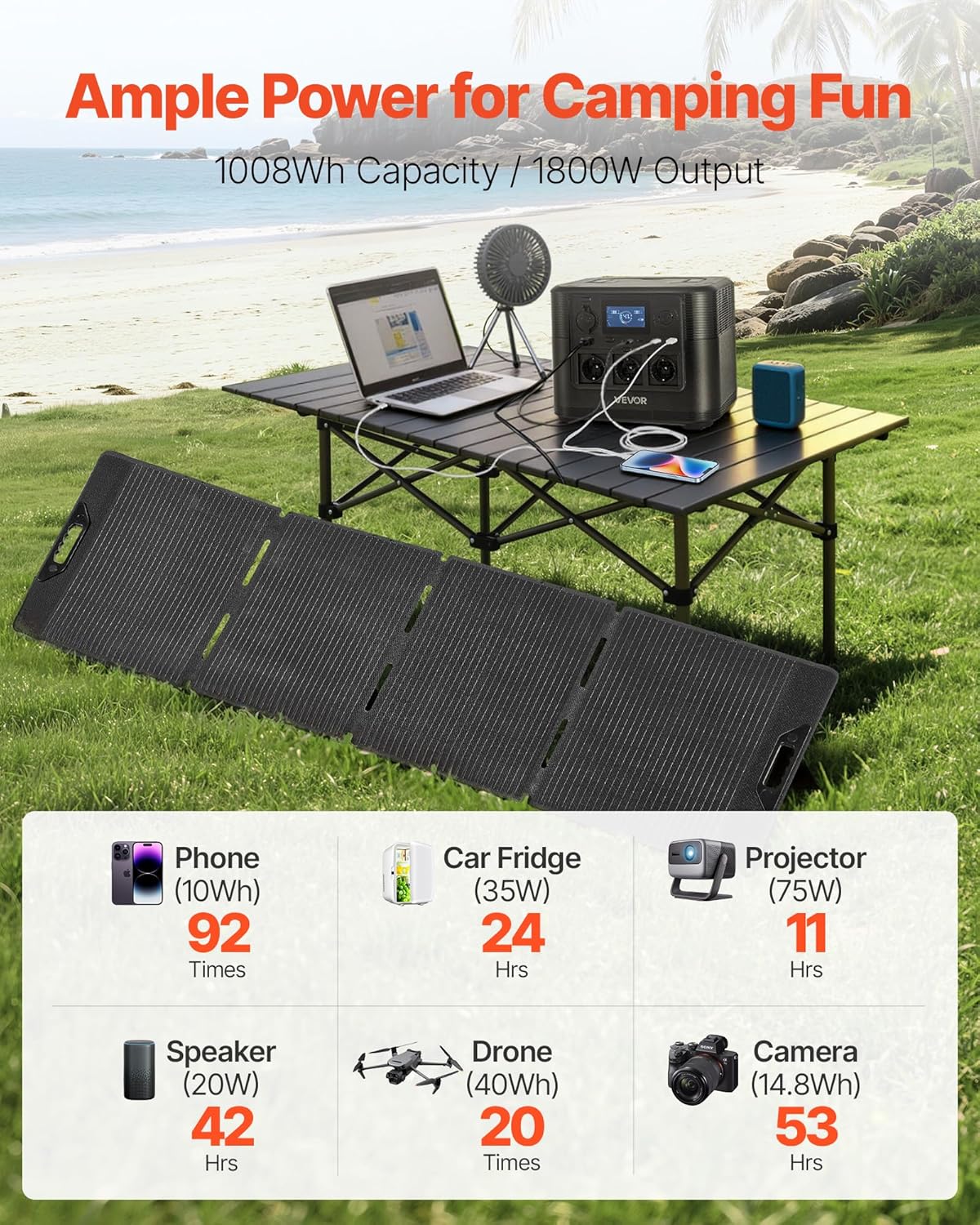

Image: The VEVOR M9 Portable Power Station and 200W Solar Panel providing power in an outdoor camping environment, demonstrating its use for various devices.

Pilt: Visuaalne võrdlus, mis illustreerib edusammetages of a solar generator (clean, quiet, easy setup) over a traditional gas generator (noisy, smoky, tough startup).

Ohutusjuhised

• Ärge demonteerige, parandage ega muutke seadet.
• Ärge asetage seadet tule lähedale ega jätke seda kuumuse kätte.
• Ärge kasutage ega hoidke seadet vannitoas ega vee või vihma käes.
• Do not use the unit in an environment with strong static electricity or strong magnetic fields.
• Ärge kasutage seadet, kui toitejuhe on kahjustatud või katki.
• Ärge kasutage seadet, kui see on kahjustatud või maha kukkunud.
• Hoidke seadet lastele ja lemmikloomadele kättesaamatus kohas.
• Tagage kasutamise ja laadimise ajal korralik ventilatsioon. Ärge katke seadet kinni.
• Kõrvaldage toode vastavalt kohalikele eeskirjadele.

Pakendi sisu

Veenduge, et kõik allpool loetletud esemed on teie pakendis. Kui mõni ese on puudu või kahjustatud, võtke ühendust VEVORi klienditoega.

• 1 x kaasaskantav elektrijaam
• 1 x Solar Panel (200W)
• 1 x kasutusjuhend
• 1 x Power Cable (AC charging cable)
• 1 x auto laadimiskaabel

Toode läbiview

The VEVOR M9 Portable Power Station is designed for versatility and durability. It features a robust LiFePO4 battery, advanced Battery Management System (BMS), and multiple output ports. The accompanying 200W solar panel allows for efficient solar recharging.

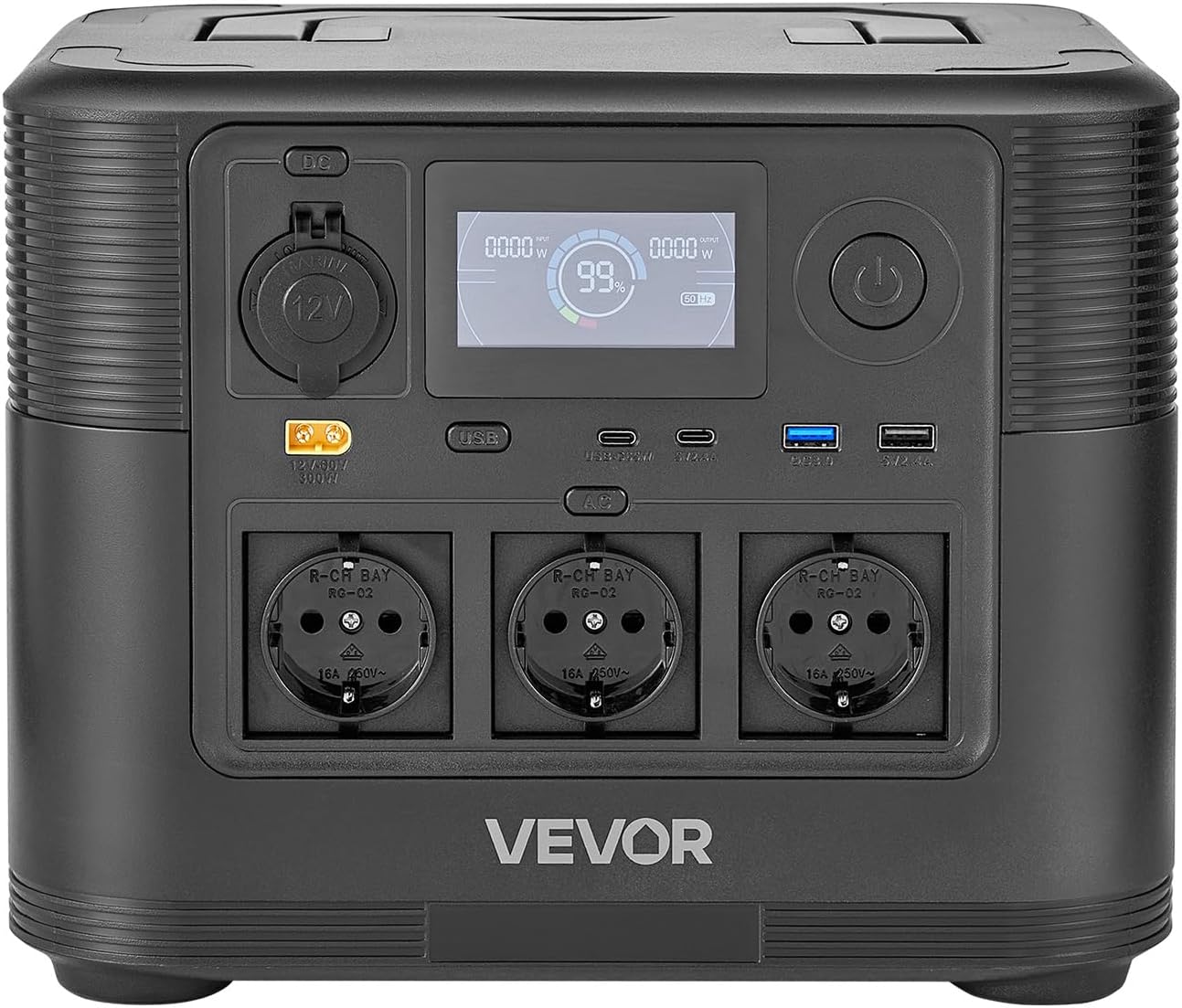

Pilt: Detailne view of the power station's control panel, highlighting various input and output ports, and the digital display.

Põhikomponendid:

• Elektrijaam: Main unit with battery, inverter, and control panel.
• Ekraan: Näitab aku taset, sisend-/väljundvõimsust ja olekuindikaatoreid.
• Vahelduvvoolu pistikupesad: Standardsete kodumasinate toiteks.
• USB Ports (Type-C, QC, Standard): For charging mobile devices, laptops, etc.
• DC Output Ports (Car Socket, XT60): For 12V devices and specific DC applications.
• DC sisendport: For charging via solar panel, AC adapter, or car charger.
• 200W päikesepaneel: Foldable panel for solar energy conversion.

Image: An illustration detailing the 9 output ports available on the power station, specifying their types and power ratings.

Seadistamine

Esmane laadimine:

1. Upon receiving your power station, it is recommended to fully charge it before first use.
2. Connect the provided AC power cable to the DC input port on the power station and plug the other end into a wall outlet.
3. The display will indicate charging status. The unit is fully charged when the battery indicator shows 100%.

Päikesepaneeli ühendamine:

1. Unfold the 200W solar panel and place it in direct sunlight.
2. Connect the solar panel's output cable to the DC input port on the power station.
3. Ensure the connection is secure. The display will show "Solar Input" and the charging wattage.
4. Adjust the angle of the solar panel periodically to maximize sun exposure for optimal charging efficiency.

Kasutusjuhised

Sisse/välja lülitamine:

• Toitejaama sisselülitamiseks vajutage ja hoidke peamist toitenuppu paar sekundit all, kuni ekraan süttib.
• Väljalülitamiseks vajutage ja hoidke uuesti peamist toitenuppu all, kuni ekraan kustub.

Vahelduvvoolu pistikupesade kasutamine:

1. Press the AC power button to activate the AC outlets. The AC indicator will light up on the display.
2. Plug your AC devices into the outlets. Ensure the total power consumption does not exceed 1800W.
3. After use, press the AC power button again to turn off the AC outlets to conserve power.

USB- ja alalisvooluportide kasutamine:

• The USB ports (Type-C, QC, Standard) and DC ports (Car Socket, XT60) are typically active once the main power station is turned on.
• Plug your USB or DC devices into the appropriate ports.
• Monitor the display for output wattage to ensure devices are charging correctly.

Image: The power station and solar panel in active use during an outdoor trip, demonstrating its capability to power devices like a laptop.

Laadimisvalikud

Your VEVOR M9 Portable Power Station offers versatile charging methods to ensure you always have power.

1. AC Wall Outlet Charging:

• Use the provided AC power cable.
• Connect to a standard wall outlet.
• Max AC input power: 650W.
• Approximate charging time: ~5 hours (from 0% to 100%).

2. Päikesepaneelide laadimine:

• Connect the 200W solar panel to the DC input port.
• Maksimaalse efektiivsuse saavutamiseks asetage päikesepaneel otsese päikesevalguse kätte.
• Max solar input power: 300W.
• Approximate charging time: ~5 hours (with 200W solar panel under ideal sunlight).

3. Auto laadimine:

• Kasutage kaasasolevat autolaadimiskaablit.
• Plug one end into your vehicle's 12V cigarette lighter socket and the other into the power station's DC input port.
• This method is slower and best for maintaining charge or topping up during travel.

Hooldus

Proper maintenance ensures the longevity and optimal performance of your VEVOR M9 Portable Power Station.

• Hoiustamine: Store the unit in a dry, well-ventilated area, away from direct sunlight and extreme temperatures. For long-term storage, charge the unit to 50-80% every 3-6 months to preserve battery health.
• Puhastamine: Use a soft, dry cloth to clean the exterior of the power station and solar panel. Do not use abrasive cleaners or solvents.
• Aku seisund: The LiFePO4 battery is designed for 3500+ charge cycles, offering a long lifespan of 10-15 years. Avoid fully discharging the battery frequently to maximize its lifespan.
• Ventilatsioon: Ensure the ventilation openings on the power station are clear and unobstructed during operation and charging to prevent overheating.

Pilt: Illustratsioonide näitusasing the internal components responsible for the power station's durability, including the LiFePO4 battery, BMS, and smart temperature control.

Veaotsing

Kui teil tekib elektrijaamaga probleeme, vaadake järgmisi levinud probleeme ja lahendusi.

Tehnilised andmed

Detailed technical specifications for the VEVOR M9 Portable Power Station and 200W Solar Panel.

Image: Technical drawing with dimensions for both the power station and the solar panel, accompanied by a summary of specifications.

Image: Demonstrates the portability of the power station (12.00 kg / 26.46 lbs) and the solar panel (5.60 kg / 12.35 lbs).

Garantii ja tugi

Garantii: According to the product information, there is no specific warranty provided for this product. Please refer to your point of purchase for any return or exchange policies.

Klienditugi: For any questions, technical assistance, or issues not covered in this manual, please contact VEVOR customer support directly through their official websaidilt või jaemüüjalt, kellelt te toote ostsite.

Lisateabe saamiseks külastage VEVORi poodi: VEVORi ametlik pood
