FoMaKo K600N 4K 60fps NDI PTZ Camera User Manual

1. Sissejuhatus

This manual provides detailed instructions for the setup, operation, and maintenance of the FoMaKo K600N 4K 60fps NDI PTZ Camera. The K600N is a high-performance camera designed for professional video production, offering advanced features such as 4K 60fps video output, 20x optical zoom, and Gen 3 AI auto-tracking. It supports NDI HX3, HDMI, 3G-SDI, USB, and Power over Ethernet (PoE) connectivity.

2. Mis on karbis

Veenduge, et pakendis on kõik esemed olemas:

• FoMaKo AI Tracking 4K 60FPS NDI PTZ Camera (20x optical zoom)
• IR kaugjuhtimispult
• Seinakinnitusklamber
• USB kaabel
• Toiteadapter (12V 2A)
• Kasutusjuhend (see dokument)

3. Toote omadused

The FoMaKo K600N camera incorporates several advanced features for professional use:

• 4K 60fps NDI HX3 Output: Supports uncompressed Ultra High Definition video output at 60 frames per second via NDI HX3, HDMI, and LAN. USB output supports 4K30, and 3G-SDI supports 1080P60.
• 20x optiline suum: Equipped with a high-quality lens (f=5.1–94.5mm) for detailed close-up shots from a distance.
• Gen 3 AI Auto-Tracking: Advanced human-shape and facial recognition algorithms enable automatic tracking of subjects. Customizable tracking modes, sensitivity, figure size, character position, and lost target actions are available.
• Mitu videoväljundit: Simultaneous output via HDMI 2.0, USB 3.0, LAN (NDI), and 3G-SDI.
• Toide Etherneti kaudu (PoE): Power, video, and control data can be transmitted through a single Ethernet cable, simplifying installation.
• Auto-Focus (AF) Technology: Provides fast, accurate, and stable auto-focusing. Supports Auto, Manual, and One Push Focus modes.
• Adjustable Pan/Tilt/Zoom Speed: Pan, Tilt, and Zoom speeds are adjustable, as are preset speeds.
• Multiple Presets: Supports up to 255 presets, with 10 accessible via the IR remote control.
• Juhtliidesed: RS232/RS485 control, TCP/IP, RTSP, RTMP, VISCA OVER IP, VISCA, SRT, and NDI Network Protocols are supported.

Pilt: Üleview of the FoMaKo K600N PTZ Camera's key features, including 4K60 resolution, 20x optical zoom, AI auto-tracking, and various video output ports.

4. Seadistamine

4.1 Füüsiline paigaldus

The K600N camera supports three primary installation methods:

• Seinakinnitus: Securely attach the camera to a wall using the provided wall mount bracket.
• Statiivi kinnitus: Mount the camera onto a standard tripod for portable or temporary setups.
• Lakke kinnitus: Install the camera inverted on a ceiling using an appropriate ceiling mount (may require additional accessories not included). Ensure proper orientation settings are configured in the camera's web interface if mounted inverted.

Image: Visual representation of the three supported installation methods: wall mount, tripod mount, and ceiling mount for the FoMaKo K600N camera.

4.2 Toiteühendus

Connect power to the camera using one of the following methods:

• Toiteadapter: Connect the included 12V 2A power adapter to the DC 12V input port on the camera and plug it into a power outlet.
• Toide Etherneti kaudu (PoE): If using a PoE-enabled network switch or injector, connect an Ethernet cable from the switch/injector to the LAN port on the camera. This will provide both power and network connectivity.

4.3 Videoväljundi ühendused

Connect the camera to your video production equipment using the appropriate output ports:

• HDMI: Connect an HDMI cable from the camera's HDMI 2.0 port to a display, switcher, or capture device.
• USB 3.0: Connect a USB cable from the camera's USB 3.0 port to a computer for direct video capture or streaming.
• LAN (NDI): Connect an Ethernet cable to the LAN port for NDI video output and IP control. The camera's IP address will be displayed on its front panel for easy access to the web UI
• 3G-SDI: Connect an SDI cable from the camera's 3G-SDI port to professional video equipment.

4.4 helisisend

The camera features a 3.5mm line-in audio jack for external audio input. Connect your audio source to this port.

Pilt: Detailne view of the FoMaKo K600N PTZ Camera's rear panel, highlighting the USB, HDMI, 3G-SDI, LAN/PoE, and control ports.

5. Kasutusjuhised

5.1 Põhijuhtimine

The camera can be controlled via the included IR remote, a PTZ controller, or its web liides.

• Panoraam/kallutamine/Suum: Use the directional and zoom buttons on the remote control or PTZ controller to adjust the camera's view.
• Kiiruse reguleerimine: Pan/Tilt/Zoom speeds are adjustable to achieve smooth movements.

5.2 Tehisintellekti automaatne jälgimine

The K600N features a Gen 3 AI auto-tracking system:

• Jälgimise aktiveerimine: Vajutage nuppu F2 button on the IR remote control to enable automatic tracking.
• Jälgimise sihtmärgi vahetamine: Vajutage nuppu F4 button on the IR remote control to switch between detected tracking targets.
• Jälgimisrežiimid: Adjust tracking modes, sensitivity, figure size, character position, and lost target actions via the camera's web interface. Available modes include:
• Close body
• Half body
• Täis keha
• Kohandatud
• Real-time vs. Regional Tracking: Choose between real-time tracking (follows immediately) and regional tracking (follows when subject leaves a defined zone) based on your environment and preference.

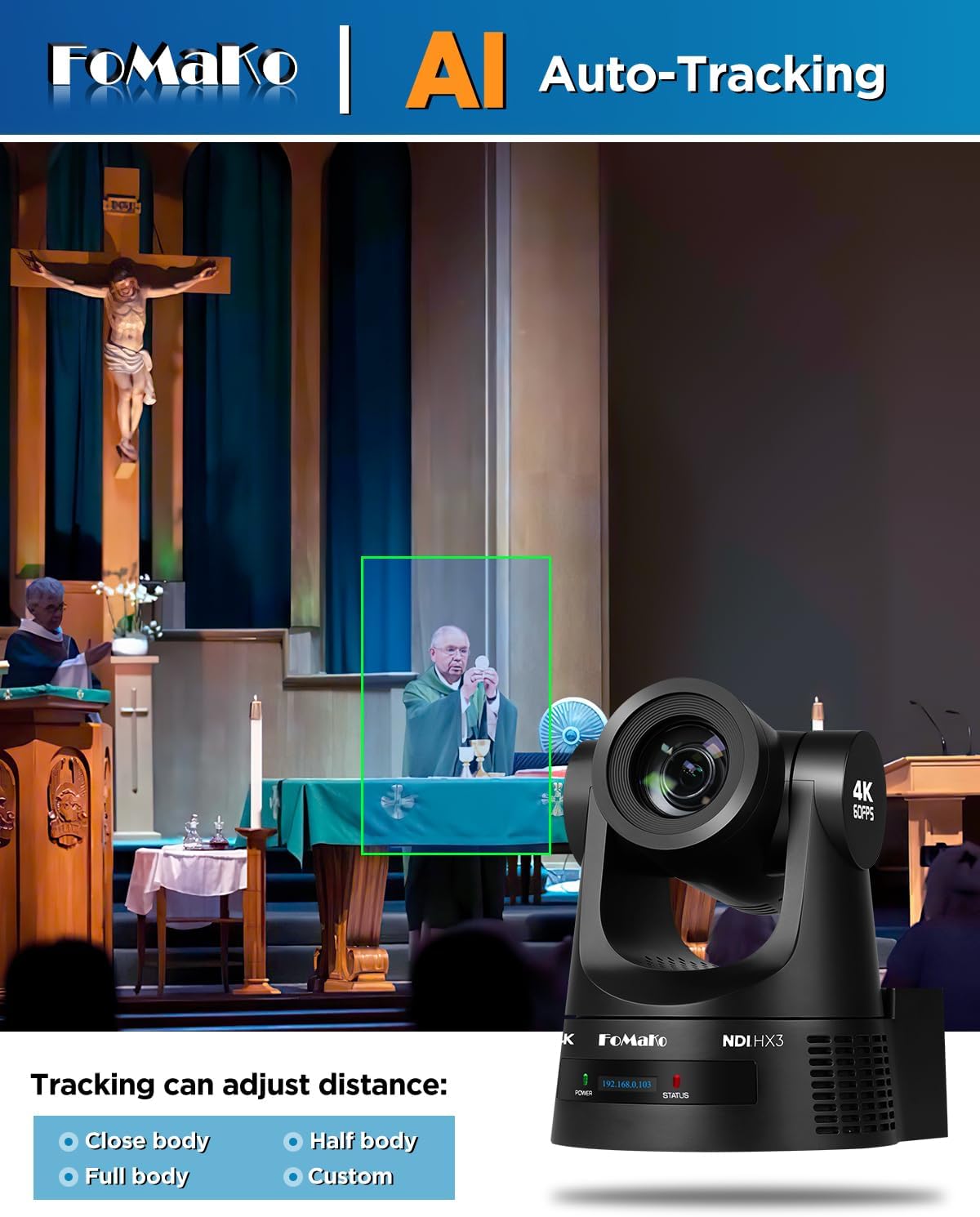

Image: A demonstration of the AI auto-tracking feature, showing a green box around a subject and options for adjusting tracking distance (Close body, Half body, Full body, Custom).

5.3 Fookuse juhtimine

The camera offers flexible focus options:

• Autofookus (AF): The camera automatically adjusts focus for clarity.
• Käsitsi teravustamine: Allows for precise manual adjustment of the focus.
• One Push Focus: Initiates a single auto-focus cycle and then holds the focus.

5.4 eelseadistust

Configure and recall camera positions:

• The camera supports up to 255 preset positions.
• Up to 10 presets can be stored and recalled directly using the IR remote control.

6. Connectivity and Output

The K600N provides versatile connectivity options for integration into various production workflows:

• HDMI 2.0: Supports 4K60, 1080P60, 1080P50, 1080P30, and other resolutions.
• USB 3.0: Supports 4K60, 1080P60, 1080P30, and other resolutions.
• LAN (NDI HX3): Supports 4K60, 1080P60, and other resolutions. NDI HX3 provides low-latency video transmission over IP networks.
• 3G-SDI: Supports 1080P60 resolution.
• Võrguprotokollid: Compatible with TCP/IP, RTSP, RTMP, VISCA OVER IP, VISCA, SRT, and NDI.
• Tarkvara ühilduvus: Works with vMix, OBS, and other live video streaming software.

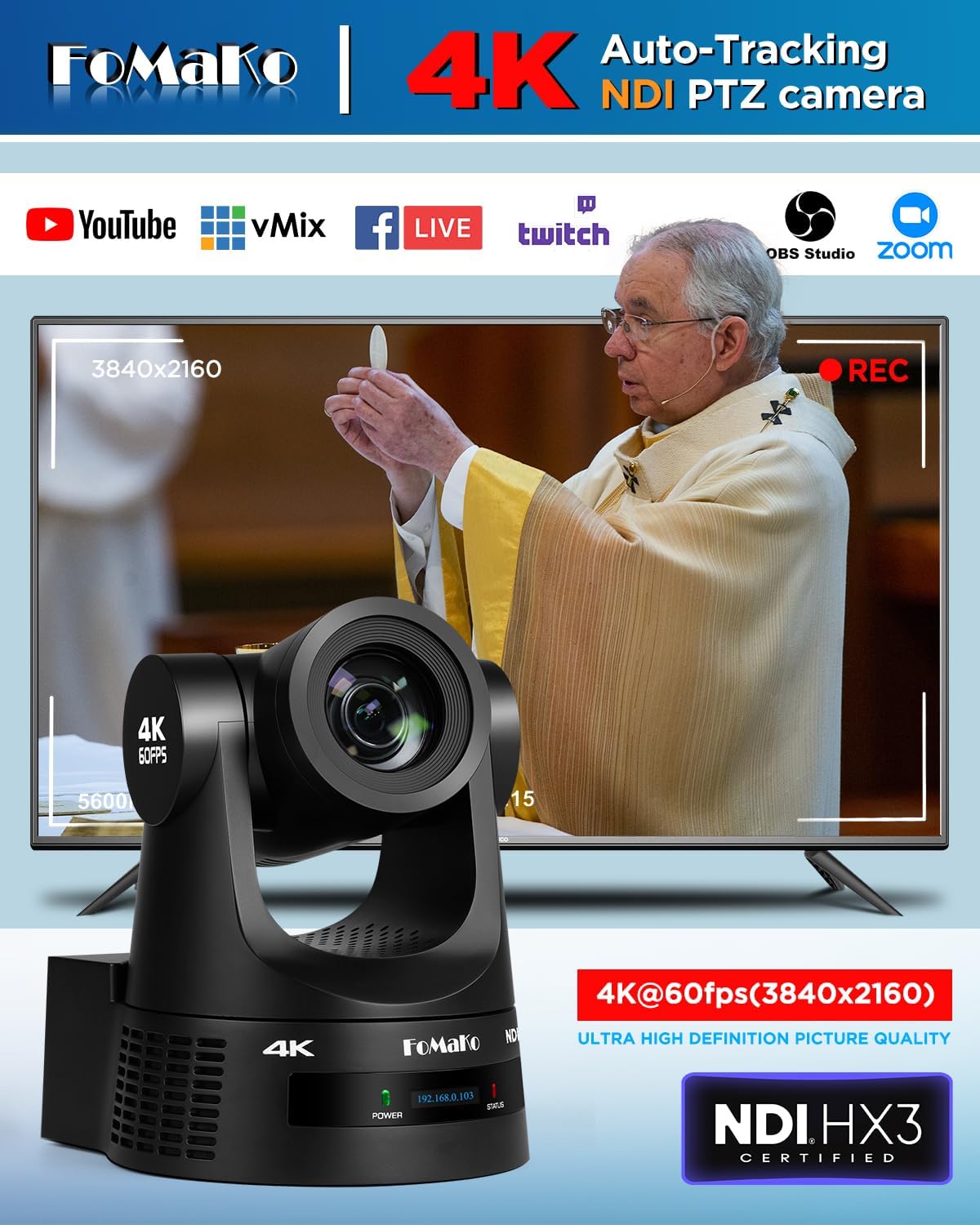

Image: The FoMaKo K600N PTZ Camera displaying a 4K@60fps output, indicating compatibility with various streaming platforms and software like YouTube, vMix, Facebook Live, Twitch, OBS Studio, and Zoom.

7. Rakenduse stsenaariumid

The FoMaKo K600N PTZ Camera is designed for professional AV live streaming, production, and broadcasting in various environments:

• Kiriku jumalateenistused otseülekannetega
• Live studio environments
• University lectures and educational streaming
• Tehase reaalajas jälgimine
• Sports club / eSports / dance club events
• Koolitusklassid
• Large conference and summit events
• Theater / concert live streaming

Image: A collage illustrating various application scenarios for the FoMaKo K600N PTZ Camera, including education, church, video conferencing, live broadcast, large conferences, and live concerts.

8. Hooldus

To ensure optimal performance and longevity of your FoMaKo K600N camera, follow these maintenance guidelines:

• Puhastamine: Kaamera korpuse puhastamiseks kasutage pehmet ja kuiva lappi. Objektiivi puhastamiseks kasutage spetsiaalset objektiivipuhastuslappi ja -lahust. Vältige abrasiivseid puhastusvahendeid või lahusteid.
• Keskkond: Kasutage ja hoidke kaamerat puhtas ja kuivas keskkonnas, eemal äärmuslikest temperatuuridest, niiskusest ja otsesest päikesevalgusest.
• Käitlemine: Handle the camera with care to prevent physical damage. Avoid sudden impacts or excessive force on the pan/tilt mechanism.
• Püsivara värskendused: Kontrollige perioodiliselt FoMaKo ametlikku website for firmware updates to ensure the camera has the latest features and performance enhancements.

9. Veaotsing

If you encounter issues with your FoMaKo K600N camera, refer to the following common troubleshooting steps:

• Toide puudub: Ensure the power adapter is securely connected and plugged into a working outlet, or that the PoE connection is active and functional.
• Videoväljund puudub: Verify all video cables (HDMI, USB, SDI, Ethernet for NDI) are correctly connected to both the camera and the receiving device. Check input selections on your display or switcher.
• Võrguühenduse probleemid: Confirm the Ethernet cable is properly connected. Check network settings on your computer and ensure the camera's IP address is accessible on your network. The camera's front panel displays its current IP address.
• Auto-Tracking Not Working: Ensure auto-tracking is enabled (F2 on remote). Check tracking mode settings in the web interface. Ensure the subject is within the effective tracking distance (up to 18 meters).
• Pildikvaliteedi probleemid: Ensure proper lighting in the environment. Check lens for smudges or dust. Verify resolution and frame rate settings are appropriate for your setup.
• Kaugjuhtimispult ei reageeri: Check battery in the remote. Ensure there are no obstructions between the remote and the camera's IR receiver.

Lisateabe saamiseks võtke ühendust klienditoega.

10. Tehnilised andmed

11. Garantii ja tugi

FoMaKo provides comprehensive support for the K600N camera:

• Piiratud garantii: 3-aastane piiratud garantii katab tootmisdefektid.
• Raha tagasi garantii: A 30-day no-questions-asked money-back guarantee is offered.
• Veebikoolitus: Free online training resources are available to assist with setup and operation.
• Eksperdiabi: 24/7 expert assistance is available, with responses typically provided within 24 hours. Please include your Order ID when contacting support.
• Tehniline tugi: Lifetime customer technical support is provided. Remote assistance for setup can be arranged if necessary.
