1. Sissejuhatus
This manual provides essential information for the safe and efficient operation of your VEVOR 45 Amp RV Power Converter. This device is designed to convert standard 120V AC power into a stable 12V DC power supply, suitable for charging RV batteries and powering 12V RV appliances. It features multi-stage smart charging and is compatible with both lead-acid and LiFePO4 batteries.
Palun lugege see juhend enne paigaldamist ja kasutamist hoolikalt läbi ning hoidke see alles edaspidiseks kasutamiseks.
2. Ohutusjuhised
HOIATUS: Nende ohutusjuhiste eiramine võib põhjustada elektrilöögi, tulekahju või tõsiseid vigastusi.
- Always disconnect the AC power supply before performing any installation, maintenance, or troubleshooting.
- Ensure proper grounding of the unit according to local electrical codes.
- Do not expose the converter to rain, moisture, or excessive humidity.
- Use only the specified fuse types and ratings for replacement. Incorrect fuses can cause damage or fire.
- Do not operate the converter if it has been damaged in any way.
- Tagage seadme ümber piisav ventilatsioon, et vältida ülekuumenemist. Ärge blokeerige ventilatsiooniavasid.
- Once plugged in, never leave the device unattended, especially during initial operation or when charging.
- This product is compliant with CE, UL, FCC, and RoHS standards.
3. Toote lõppview
VEVOR 45 Amp RV Power Converter is an all-in-one unit designed for reliable power conversion and battery charging in RVs and campers. It features a robust metal enclosure and intelligent cooling for stable operation.
Peamised omadused:
- 45 Amp Väljund: Delivers up to 45A of clean, consistent 12V DC power.
- Lai aku ühilduvus: Supports both lead-acid and LiFePO4 batteries.
- Multi-Stage Smart Charging: Extends battery life through optimized charging cycles (Bulk, Absorption, Float, Storage).
- Fikseeritud Voltage Väljund: Selectable options for 13.0V, 14.6V, and 16.5V for specific power needs.
- Intelligentne jahutussüsteem: Features an intelligent cooling fan and optimized airflow design with a large heat sink to prevent overheating.
- Six Security Protections: Includes short circuit, over temperature, overload, low voltage, ülepingetage ja vastupidise polaarsuse kaitse.
- Vastupidav konstruktsioon: Housed in a durable aluminum alloy casing.
Pakendi sisu:
- 1 x VEVOR RV Power Converter (SBC-45A)
- 1 x kasutusjuhend
- 2 x 30A kaitsmed
Komponendi identifitseerimine:
Refer to the image below for a visual guide to the converter's components.
Image: VEVOR 45 Amp RV Power Converter with key components labeled for quick identification. Labels include Fuse, 12V Output Terminals, Model Number, 3-Mode Adjustable Selector Switch, and Potentiometer.
- Kaitse: Accessible 30A fuses for protection.
- 12V Output Terminals: Connection points for DC loads and battery.
- Kauba mudeli number: SBC-45A.
- 3-Mode Adjustable Selector Switch: Used to select charging mode (Lead-Acid, Lithium) or Fixed Voltage Väljund.
- Potentsiomeeter: For fine-tuning output voltage in Fixed Voltage mode (if applicable).
4. Seadistamine
Proper installation is crucial for the safe and efficient operation of your RV power converter. It is recommended that installation be performed by a qualified technician.
Paigaldamise etapid:
- Valige asukoht: Select a dry, well-ventilated area within your RV, away from flammable materials and direct sunlight. Ensure there is sufficient space around the unit for airflow, especially near the cooling fan.
- Paigaldage muundur: Securely mount the converter using appropriate fasteners. The unit is designed for quick installation.
- Vahelduvvoolu sisendi ühendus: Connect the 120V AC input cord to a suitable AC power source. Ensure the AC source is properly grounded and protected by a circuit breaker.
- Alalisvoolu väljundühendus: Connect the 12V DC output terminals to your RV's 12V distribution panel and battery bank. Observe correct polarity: positive (+) to positive, and negative (-) to negative. Use appropriate gauge wiring for the 45 Amp väljund.
- Kaitsme paigaldamine: Ensure the provided 30A fuses are correctly inserted into their respective slots.
- Esialgne kontroll: Enne voolu sisselülitamist kontrollige veelkord kõigi ühenduste tihedust ja õiget polaarsust.
Pilt: Esikülg view of the VEVOR 45 Amp RV Power Converter, showing the input and output terminals.
5. Kasutusjuhised
The VEVOR RV Power Converter offers dedicated charging modes and a fixed voltage väljundrežiim.
Töörežiimi valimine:
Use the 3-Mode Adjustable Selector Switch on the side of the unit to choose your desired operating mode:
- Lead-Acid Mode: For charging lead-acid batteries (12V-14.6V output).
- Liitiumrežiim: For charging LiFePO4 batteries (12V-14.6V output).
- Fikseeritud Voltage Output Mode: Annab konstantse helitugevusetage output. Selectable options are 13.0V, 14.6V, and 16.5V. This mode is suitable for powering 12V DC devices directly without a battery, or for specific charging requirements.
Pilt: Külg view of the VEVOR RV Power Converter, highlighting the 3-mode adjustable selector switch for Lead-Acid, Lithium, and Fixed Voltage seaded.
Multi-Stage Smart Charging:
When in Lead-Acid or Lithium charging modes, the converter employs a multi-stage charging process to optimize battery health and longevity:
- Hulgirežiim: Laeb aku kiiresti umbes 80% mahutavusele.
- Absorptsioonirežiim: Laeb akut kahaneva kiirusega 100%-niasing current to prevent overcharging.
- Ujuv režiim: Maintains the battery at optimal charge, compensating for self-discharge.
- Salvestusrežiim: Minimizes self-discharge and extends battery lifespan during periods of inactivity.

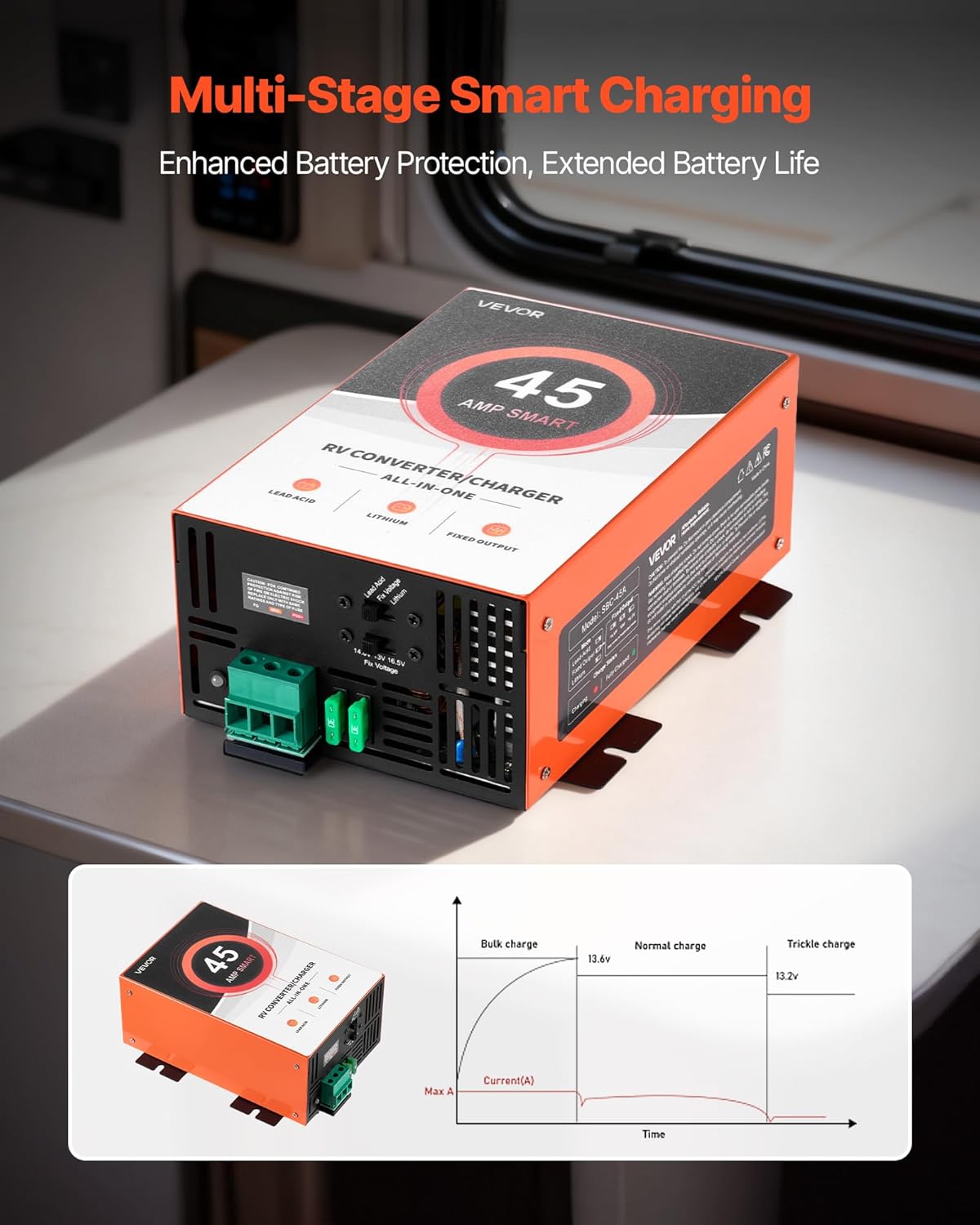

Pilt: Graafik, mis illustreerib multiskooritage smart charging process, showing bulk charge, normal charge, and trickle charge phases with corresponding voltage levels over time.
6. Hooldus
Regular maintenance ensures the longevity and optimal performance of your VEVOR RV Power Converter.
Üldine hooldus:
- Hoidke puhas: Puhastage seadme välispinda regulaarselt kuiva pehme lapiga. Ärge kasutage vedelaid puhastusvahendeid ega lahusteid.
- Tagada ventilatsioon: Regularly check that the ventilation openings and cooling fan are free from dust, debris, or obstructions. The intelligent cooling fan activates automatically when needed.
- Kontrollige ühendusi: Periodically inspect all electrical connections (AC input and DC output) to ensure they are secure and free from corrosion.
Pilt: Lähivõte view of the VEVOR RV Power Converter's intelligent cooling fan, emphasizing the automatic cooling and stable operation features.
Kaitsme vahetus:
The converter is equipped with easily accessible 30A fuses for protection. If a fuse blows, replace it promptly with a fuse of the same type and rating.
- Toite lahtiühendamine: Always disconnect the AC power supply to the converter before replacing fuses.
- Locate Fuses: The fuses are located on the side of the unit near the DC output terminals.
- Eemaldage vana kaitsme: Carefully pull out the blown fuse.
- Uue kaitsme sisestamine: Insert a new 30A fuse into the slot.
- Toite taastamine: Reconnect AC power and verify operation.
Image: A hand demonstrating the replacement of a 30A fuse on the VEVOR RV Power Converter, highlighting the ease of maintenance.
7. Veaotsing
This section addresses common issues you might encounter with your RV power converter.
| Probleem | Võimalik põhjus | Lahendus |
|---|---|---|
| Väljundvõimsus puudub | No AC input; Blown fuse; Loose connections | Check AC power source; Replace blown fuses; Secure all connections. |
| Battery not charging / Slow charging | Incorrect mode selected; Battery fault; Overload; Loose connections | Verify correct charging mode (Lead-Acid/Lithium); Check battery health; Reduce DC load; Secure connections. |
| Converter shuts down / Red LED indicator | Overload protection activated; Over-temperature protection; Short circuit; Low/Over voltage | Reduce connected DC load; Ensure adequate ventilation; Check for short circuits in wiring; Verify input/output voltage. Disconnect power, wait a few minutes, then reconnect. |
| Ventilaator ei tööta | Normal operation (fan activates when needed); Fan fault | The fan is intelligent and only runs when the unit reaches a certain temperature. If the unit is hot and the fan is not running, contact support. |
The converter is equipped with six layers of security protection to safeguard your appliances, batteries, and the converter itself. If a protection mechanism is triggered, the unit may shut down or indicate an error. Address the underlying cause before resuming operation.
Image: A visual representation of the six layers of security protection: Overload, Short Circuit, Low Voltage, Reverse Polarity, Over Voltage, and Over Temperature Protection.
8. Tehnilised andmed
| Funktsioon | Detail |
|---|---|
| Mudeli number | SBC-45A |
| Sisend Voltage | 120 volti (vahelduvvool), 60 Hz |
| Väljundvool | 45 Amps |
| Maksimaalne väljundvõimsus | 655W ± 5% |
| Väljund Voltage (Lead Acid Battery) | 12V–14.6V (DC) |
| Väljund Voltage (Lithium Battery) | 12V–14.6V (DC) |
| Fikseeritud Voltage Väljundrežiim | 13.0V, 14.6V, 16.5V (DC) |
| Kauba mõõtmed (P x L x K) | 10.43 x 7.17 x 3.66 tolli (265 x 182 x 93 mm) |
| Kauba kaal | 4.85 naela (2.2 kg) |
| Materjal | Metall (alumiiniumsulam Casing) |
| Värv | Oranž |
| Maakindlus | < 300 mΩ at 12V/25A |
| Sertifikaadid | CE, UL, FCC, RoHS |
Image: Technical drawing showing the dimensions of the VEVOR 45 Amp RV Power Converter (10.4 in / 265 mm length, 7.2 in / 182 mm width, 3.7 in / 93 mm height).
9. Garantii ja tugi
This product does not come with an explicit warranty description provided in the product information. For any technical assistance, troubleshooting beyond this manual, or inquiries regarding your VEVOR RV Power Converter, please contact VEVOR customer support directly through their official websaidil või jaemüüjal, kust toode osteti.
Always refer to the latest information available from the manufacturer for warranty details and support procedures.
