VINGLI Full Metal Loft Bed Frame with L-Shaped Desk and Storage: Instruction Manual

1. Sissejuhatus

This manual provides detailed instructions for the assembly, operation, and maintenance of your VINGLI Full Metal Loft Bed Frame. Please read all instructions carefully before assembly and use to ensure safe and proper installation and to maximize the lifespan of your product. Keep this manual for future reference.

Pilt 1.1: läbiview of the VINGLI Full Metal Loft Bed Frame, featuring the elevated bed, L-shaped desk, integrated storage shelves, drawers, and ambient LED lighting.

2. Ohutusalane teave

Your safety is paramount. Adhere to the following guidelines to prevent injury and damage to the product:

• Kandevõime: The loft bed is designed to support a maximum load of 450 lbs. Do not exceed this weight limit.
• Guardrail: The bed features a 15-inch high guardrail for enhanced safety, preventing accidental falls. Ensure it is properly installed and secured.
• Madratsi paksus: Use a mattress with a recommended thickness between 4 and 10 inches to maintain adequate guardrail height.
• Redeli ohutus: The non-slip ladder treads and 9.65-inch step spacing are designed for secure climbing. Always use the ladder when accessing or exiting the bed.
• Seinakinnitus: Utilize the wall-attachment feature to prevent tipping and ensure maximum stability.
• Üldkasutus: Avoid jumping or hanging on the bed frame to ensure long-term durability and prevent structural damage.

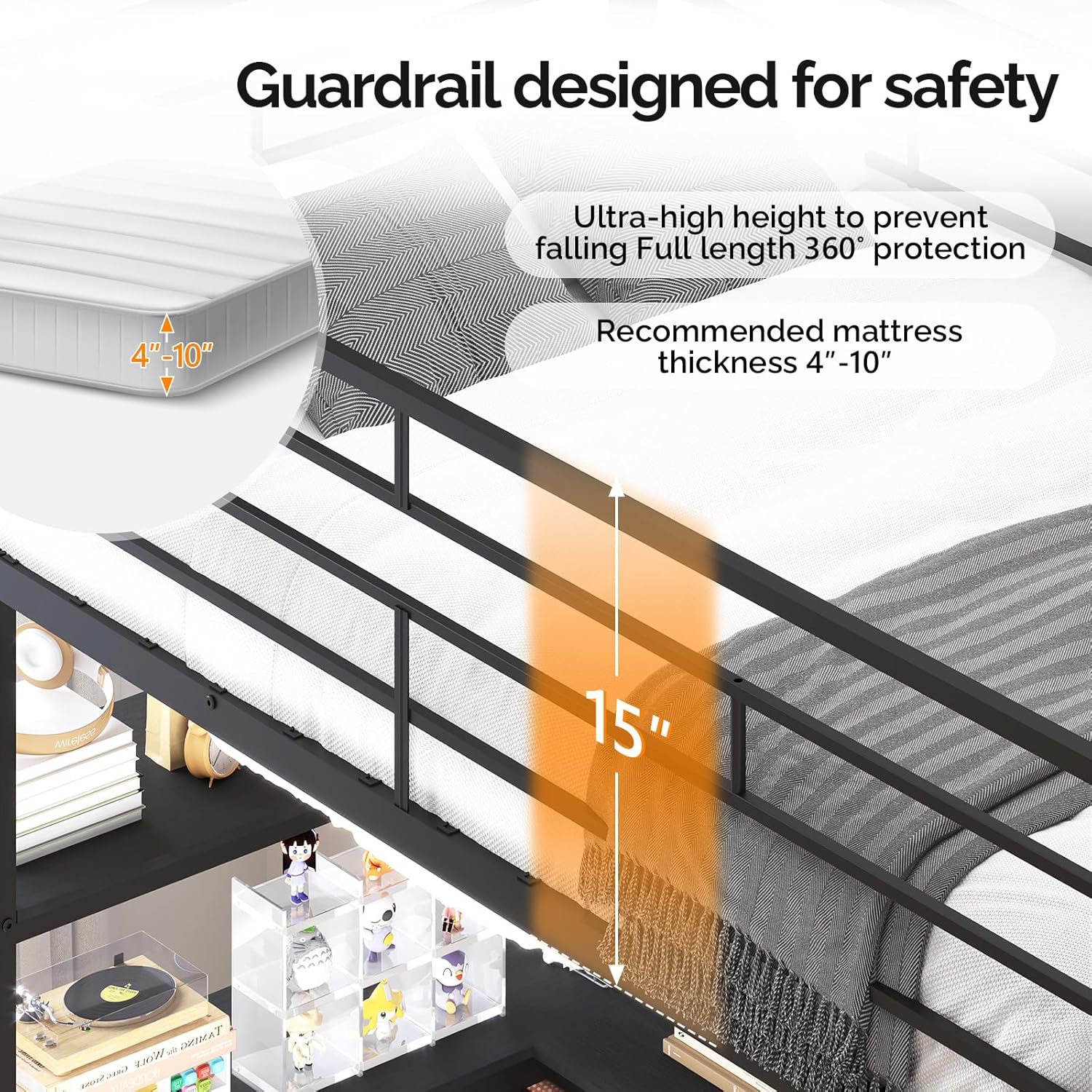

Image 2.1: Detail showing the 15-inch high guardrail and the recommended mattress thickness range of 4-10 inches for optimal safety.

3. Pakendi sisu

Before beginning assembly, verify that all components are present and undamaged. If any parts are missing or damaged, contact customer service immediately.

• Loft Bed Frame components
• L-kujulise laua komponendid
• Storage Shelves and Drawers
• LED Light strip and controller
• Charging Station unit
• Monteerimisdetailid (kruvid, poldid jne)
• Paigaldusjuhend

Märkus. Madrats ei kuulu voodiraami komplekti.

4. Seadistamine ja kokkupanek

Assembly is designed to be straightforward with all necessary tools and instructions included. For optimal efficiency, two people are recommended for assembly.

4.1 Üldassamblee etapid

1. Pakkige kõik komponendid lahti ja asetage need puhtale ja pehmele pinnale, et vältida kriimustusi.
2. Identify all parts using the provided parts list in the separate instruction manual.
3. Follow the step-by-step diagrams in the included manual to connect the main frame components.
4. Install the L-shaped desk, storage shelves, and drawers according to the instructions.
5. Secure the bed slats using the snap-in mounting system.
6. Attach the charging station and LED lights as directed.
7. Ensure all fasteners are tightened securely, but do not overtighten.
8. Attach the bed frame to a wall using the provided wall-attachment hardware for added stability.

4.2 Slats Snap-in Mounting

The bed features an embedded slat system for simple and stable installation. The slats snap directly into place, eliminating the need for additional screws for each slat.

Pilt 4.1: Lähivõte view of the snap-in mounting mechanism for the bed slats, highlighting its convenient, fast, and stable design.

4.3 Adjustable Installation Direction

The L-shaped desk and storage unit can be configured on either the left or right side of the bed frame during assembly, allowing for customization to fit your room layout.

Image 4.2: Illustration demonstrating the flexibility to adjust the installation direction of the integrated desk and storage unit to suit different room configurations.

5. Omadused ja funktsioonid

The VINGLI Loft Bed Frame is designed with multiple integrated features to maximize space and functionality.

5.1 L-Shaped Desk and Storage

The integrated L-shaped desk provides a dedicated area for study, work, or gaming. Adjacent storage shelves and four fabric drawers offer ample space for organizing books, supplies, and personal items.

5.1. pilt: View of the multifunctional area beneath the loft bed, showcasing the L-shaped desk, integrated shelves, and four fabric drawers for storage.

Pilt 5.2: Detailne view of the desk surface, indicating its dimensions for workspace planning.

Image 5.3: Close-up of the storage shelves, illustrating their capacity for various items.

Pilt 5.4: Detailne view of the fabric storage drawers, showing their depth and accessibility.

5.2 Integrated Charging Stations

The bed frame includes a convenient power strip with multiple charging options: 3 USB ports, 2 AC outlets (125V/12A), and 2 Type-C ports (5V/2A). One outlet is strategically placed near the headboard for easy nighttime access.

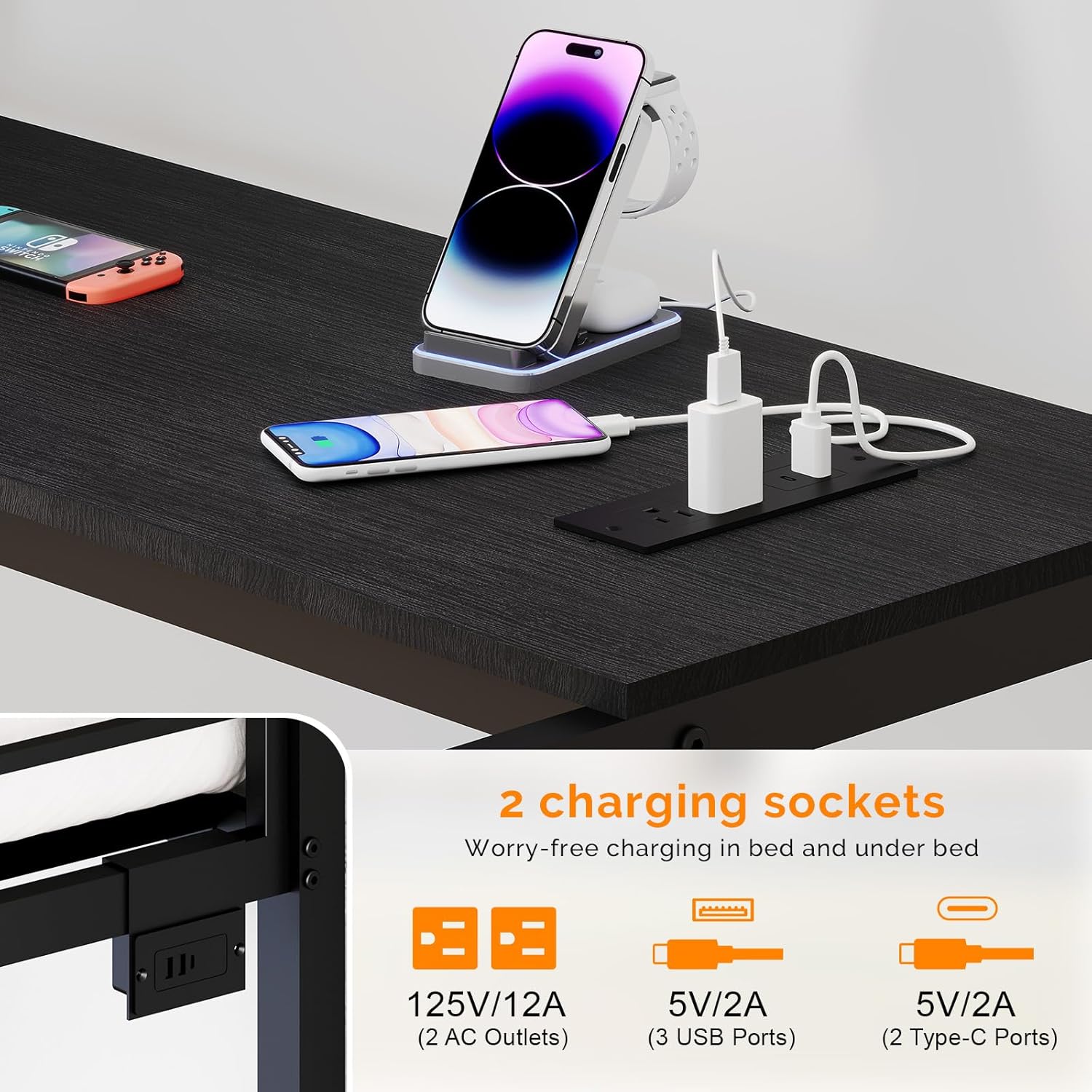

Image 5.5: Close-up of the integrated charging station, featuring 2 AC outlets, 3 USB ports, and 2 Type-C ports for convenient device charging.

Pilt 5.6: Teine view of the charging station, integrated into the desk surface for easy access.

5.3 Color-Adjustable LED Lights

The bed frame is equipped with color-adjustable LED lights, allowing you to customize the ambiance of your space. These lights can transition from a focused study environment to a vibrant gaming setup.

Image 5.7: The loft bed illuminated with colorful LED lights, demonstrating the adjustable ambiance feature.

Image 5.8: A comparison showing the loft bed in daylight and with its LED lights activated at night, highlighting the visual impact.

5.4 Non-Slip Ladder

The ladder features non-slip treads and a comfortable 9.65-inch step spacing, ensuring secure and easy access to the elevated bed.

Image 5.9: Detail of the ladder, emphasizing the anti-slip surface on each tread for safe climbing.

6. Kasutusjuhised

• Veenduge, et voodi oleks asetatud tasasele pinnale.
• Kontrollige regulaarselt kõiki polte ja kruvisid, et need oleksid kindlalt kinni.
• Ärge lubage lastel järelevalveta narivoodil ega selle lähedal mängida.
• Only one person should occupy the top bunk at a time.
• Always use the ladder for access; do not climb on the frame structure.

7. Hooldus

To maintain the condition and longevity of your VINGLI Loft Bed Frame:

• Puhastamine: Pühkige metallpinnad pehme lapigaamp lapiga. Vältige abrasiivseid puhastusvahendeid või karme kemikaale.
• Kinnitusvahendid: Periodically inspect all bolts, screws, and connections. Tighten any loose fasteners to ensure structural integrity.
• LED tuled: If LED lights malfunction, check the power connection and controller.
• Sahtlid: The fabric drawers can be spot cleaned with a mild detergent if necessary.

8. Veaotsing

If you encounter issues with your loft bed, refer to the following common solutions:

• Voodi tundub ebastabiilne: Ensure all bolts are securely tightened. Verify the wall-attachment feature is properly installed. Check that the bed is on a level surface.
• LED-tuled ei tööta: Check the power connection to the LED strip and the wall outlet. Ensure the remote control batteries are functional.
• Parts missing during assembly: Double-check the packaging and contact VINGLI customer service with your product model number and a description of the missing parts.
• Kokkupaneku raskused: Review the instruction manual carefully. Ensure you are using the correct hardware for each step. Consider having a second person assist with assembly.

9. Tehnilised andmed

Image 9.1: Diagram illustrating the overall dimensions of the loft bed frame and its maximum load capacity of 450 lbs.

Image 9.2: Visual summary of product dimensions, materials, color options, and package contents.

10. Garantii ja tugi

VINGLI stands behind the quality of its products.

• Garantii: Sellel tootel on 2-aastane garantii alates ostukuupäevast.
• Klienditeenindus: For any questions, missing parts, or warranty claims, please contact VINGLI customer service. Refer to the contact information provided in your purchase documentation or on the official VINGLI websaidile.
