1. Sissejuhatus
Thank you for choosing the DWVO 52 Inch Ceiling Fan with Dimmable Light. This manual provides essential information for the safe installation, operation, and maintenance of your new ceiling fan. Please read these instructions thoroughly before installation and retain them for future reference.
Pilt 1.1: läbiview of the DWVO 52 Inch Ceiling Fan. This image displays the fan's overall design, including its five black blades, central light fixture with a gold accent ring, and flush mount canopy.
2. Ohutusalane teave
HOIATUS: Tulekahju, elektrilöögi või kehavigastuste ohu vähendamiseks järgige alati neid põhilisi ettevaatusabinõusid:
- Enne ventilaatori paigaldamist lugege hoolikalt läbi kõik juhised ja ohutusteave ning säilitage need juhised.
- All wiring must be in accordance with national and local electrical codes. Consult a qualified electrician if you are unfamiliar with wiring.
- Enne paigaldamist lülitage elektriühendus peakaitsmekilbi kaitselülitid välja.
- Veenduge, et paigalduskoht suudab ventilaatori kaalu kanda (umbes 12.1 naela).
- Ärge kasutage ventilaatorit kahjustatud toitejuhtme või pistikuga.
- Vältige esemete asetamist ventilaatori labade teele.
- Ärge proovige ventilaatorit ise parandada ega muuta. Abi saamiseks võtke ühendust klienditoega.
3. Pakendi sisu
Verify that all components listed below are included in your package. If any parts are missing or damaged, please contact DWVO customer service.
- Mootori korpuse koost
- Ventilaatori labad (5)
- Valgusti komplekt
- Kaugjuhtimispult koos seinakinnitusega
- Katteplaat
- Riistvarakomplekt (kruvid, mutrid, seibid)
- Kasutusjuhend
4. Tehnilised andmed
| Funktsioon | Spetsifikatsioon |
|---|---|
| Kaubamärk | DWVO |
| Mudeli nimi | MADWVz9zor |
| Suurus | 52 tolli |
| Värv | Black Gold New |
| Materjal | Akrüülnitriilbutadieenstüreen (ABS) |
| Mootori tüüp | DC Reversible Motor |
| Wattage | 25 vatti (ventilaatori mootor) |
| Valgusallika tüüp | Integreeritud LED |
| Kerge Wattage | 18W |
| Värvi temperatuur | 3000K (soe valge), 4500K (looduslik valge), 6000K (külm valge) |
| Kontrollimeetod | Kaugjuhtimispult |
| Kiiruste arv | 6 |
| Paigaldustüüp | Pesta Mount |
| Toote mõõtmed | 52" P x 52" L x 12" K |
| Kauba kaal | 12.12 naela |
Image 4.1: Dimensional diagram of the 52-inch ceiling fan, showing key measurements for length, width, and height from the ceiling.
5. Seadistamine ja installimine
5.1 Eelinstallimine
- Lülitage toide kaitselülitist välja.
- Veenduge, et elektrikarp on kindlalt paigaldatud ja suudab ventilaatori raskust toetada.
- Pakkige kõik komponendid lahti ja asetage need kriimustuste vältimiseks pehmele pinnale.
5.2 Kinnitusklambri paigaldamine
- Kinnitage kinnitusklamber pistikupesa külge kaasasolevate kruvide abil. Veenduge, et see on kindlalt kinnitatud.
5.3 Juhtmestik
- Connect the household supply wires to the fan wires according to the wiring diagram in the manual. Typically, black to black (live), white to white (neutral), and green/bare copper to green (ground).
- Kinnitage kõik juhtmeühendused traatmutritega.
5.4 Ventilaatorilabade kinnitamine
- Carefully attach each fan blade to the motor housing using the provided screws. Ensure all screws are tightened securely.
5.5 Valgustuskomplekti paigaldamine
- Connect the light kit wires to the corresponding wires from the fan motor assembly.
- Secure the light kit to the bottom of the fan motor housing.
- Paigaldage valguse hajuti seda keerates või klõpsates oma kohale.
6. Kasutusjuhised
Your DWVO ceiling fan is controlled by a remote control. Familiarize yourself with its functions for optimal use.
Image 6.1: The remote control for the DWVO ceiling fan, showing its various buttons for fan and light operation.
6.1 Kaugjuhtimispuldi funktsioonid
- Toitenupp: Lülitab ventilaatori ja tule sisse/välja.
- Ventilaatori kiiruse nupud (1–6): Reguleerib ventilaatori kiirust 1-st (madalaim) kuni 6-ni (kõrgeim).
- Valguse sisse/välja nupp: Toggles the light on or off independently of the fan.
- Värvitemperatuuri nupp: Cycles through 3000K (Warm White), 4500K (Natural White), and 6000K (Cool White). The fan retains the last used color temperature setting.
- Taimeri nupud (1H, 2H, 4H, 8H): Seadistab ventilaatori automaatselt välja lülituma pärast valitud aja möödumist.
- Forward/Reverse Rotation Button: Muudab ventilaatori labade suunda hooajaliseks kasutamiseks.

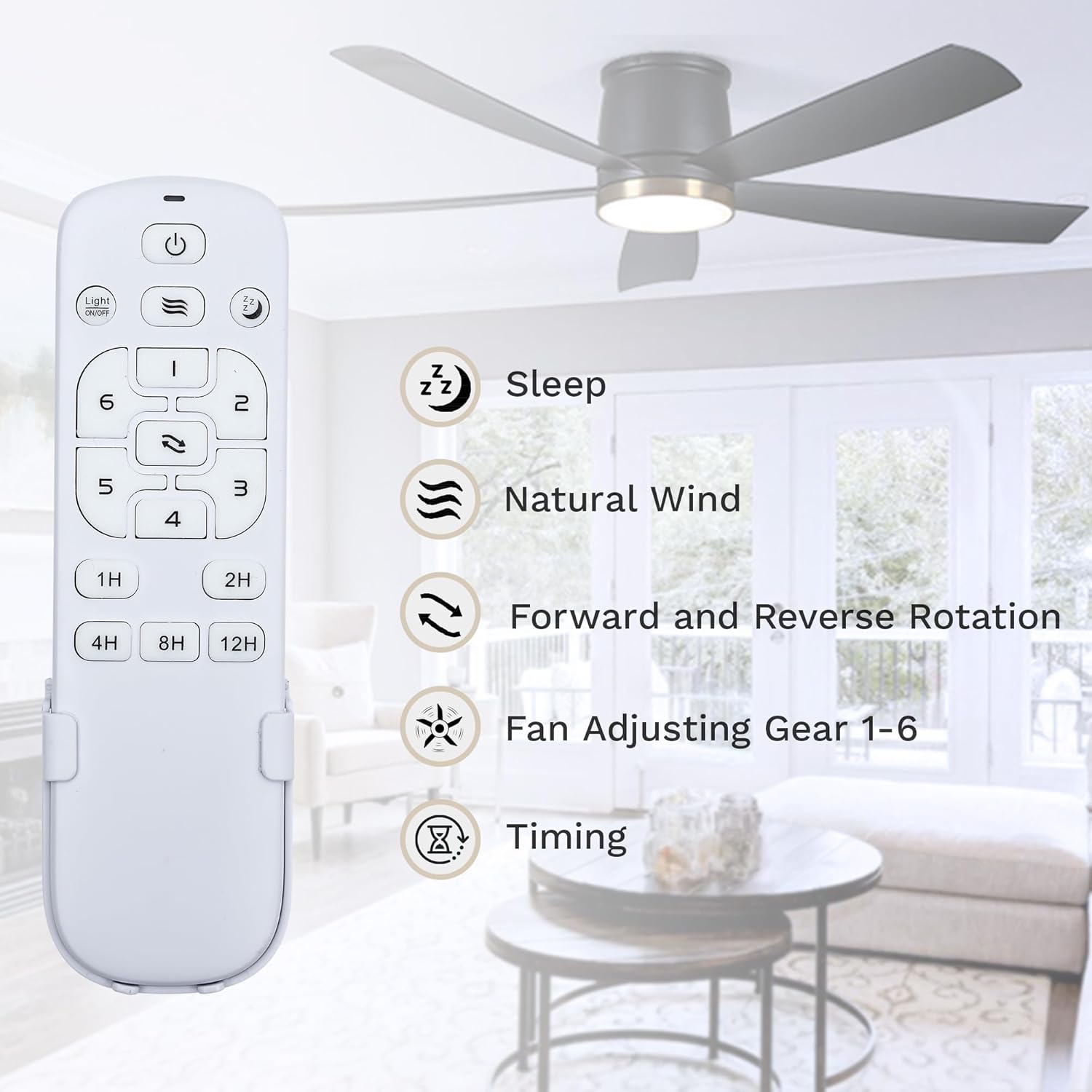

Pilt 6.2: Detailne view of the remote control, highlighting the functions of each button, including sleep mode, natural wind, forward/reverse rotation, fan speed adjustment, and timing settings.
6.2 Adjustable Light & Timer
The integrated LED light offers three distinct color temperatures to suit your preference and environment. Press the light button to cycle through 3000K, 4500K, and 6000K. The fan's memory function will recall the last selected color temperature when turned on again.
Image 6.3: Visual representation of the three adjustable color temperatures (3000K, 4500K, 6000K) and the memory function that retains the last used setting.
Utilize the timer function (1H, 2H, 4H, 8H) to automatically shut off the fan after a set period, ideal for sleeping or when leaving a room.
Image 6.4: Illustrates the quiet operation of the DC motor (below 35dB) and the available timer settings (1h, 2h, 4h, 8h, 12h max).
6.3 Reversible Seasonal Mode

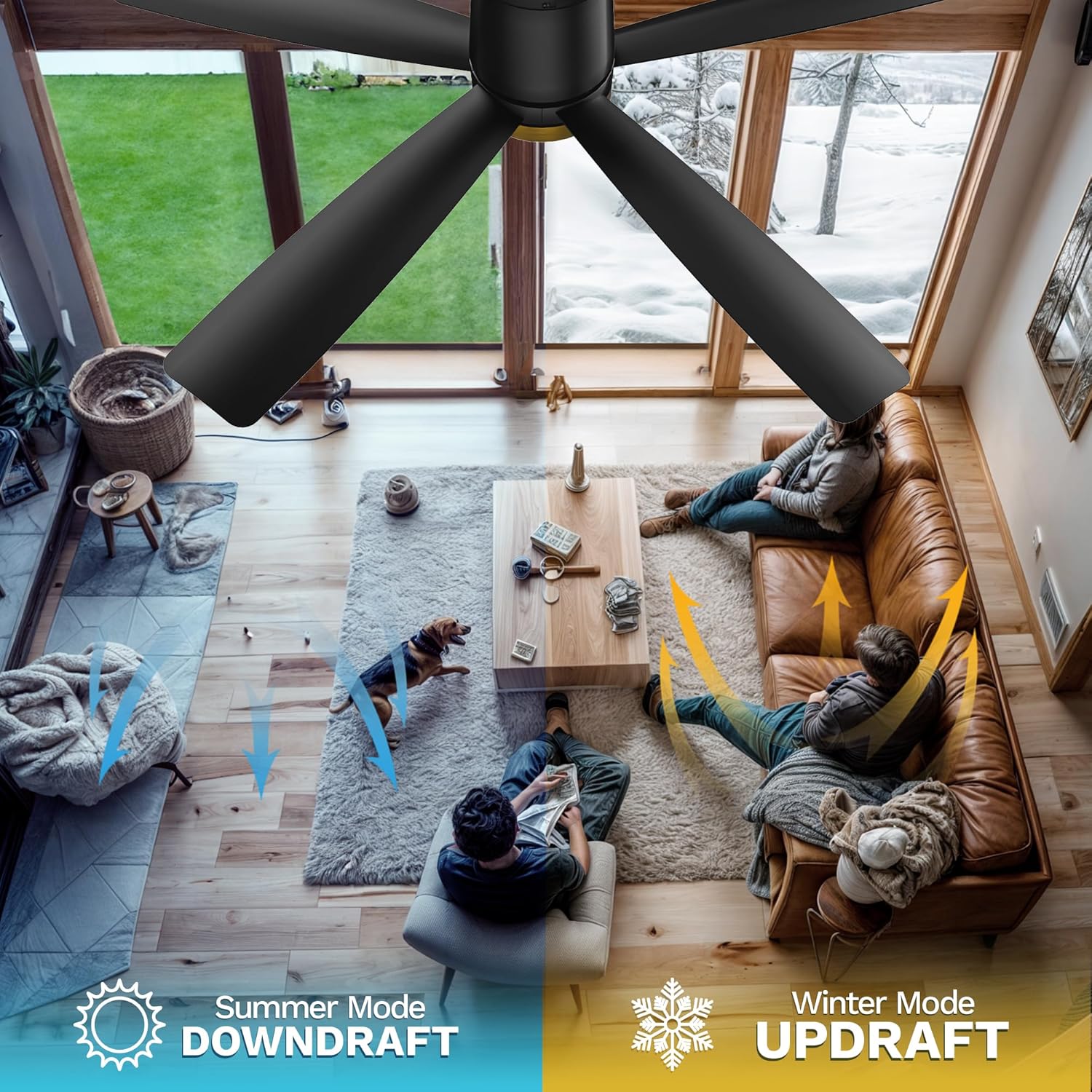

The DC reversible motor allows for year-round use. Press the forward/reverse button on the remote to change blade direction:
- Suverežiim (vastupäeva): Creates a downdraft, producing a cooling breeze.
- Talverežiim (päripäeva): Creates an updraft, circulating warm air trapped near the ceiling.
Image 6.5: The DWVO ceiling fan installed in a modern living room setting, demonstrating its aesthetic integration.
Image 6.6: Depicts the six fan speed levels, suggesting appropriate uses for different activities like sleeping/reading (Level 1-2), fun/parties (Level 3-4), and fitness/sports (Level 5-6).
7. Hooldus
7.1 Puhastamine
- Enne puhastamist lülitage alati kaitselülitist toide välja.
- Kasutage pehmet, damp lapiga ventilaatori labade ja mootori korpuse pühkimiseks. Ärge kasutage abrasiivseid puhastusvahendeid ega lahusteid.
- Periodically check for dust accumulation on the blades and light diffuser to maintain optimal performance and light output.
7.2 Light Source Replacement
The LED light source is integrated and designed for long-term use. If the light fails, please contact DWVO customer support for assistance. Do not attempt to replace the LED module yourself.
8. Veaotsing
If you experience issues with your fan, refer to the common problems and solutions below. If the problem persists, contact customer support.
| Probleem | Võimalik põhjus | Lahendus |
|---|---|---|
| Ventilaator ei käivitu | No power supply; Loose wiring; Remote control battery low/dead. | Check circuit breaker; Verify all wire connections; Replace remote control battery. |
| Ventilaator on lärmakas | Loose screws on blades or mounting bracket; Fan not balanced. | Tighten all screws; Ensure blades are securely attached; Check for blade balance. |
| Valgus ei tööta | Lahtised juhtmed; LED-mooduli rike; kaugjuhtimispuldi probleem. | Check light kit wiring; Contact customer support for LED replacement; Replace remote control battery. |
| Kaugjuhtimispult ei tööta | Battery dead; Remote not paired (if applicable); Obstruction. | Replace battery; Refer to remote pairing instructions (if provided separately); Ensure clear line of sight to fan receiver. |
9. Garantii ja tugi
9.1 Garantii teave
See DWVO laeventilaator on varustatud 1-aastane garantii from the date of purchase. This warranty covers manufacturing defects in materials and workmanship under normal use. It does not cover damage resulting from improper installation, misuse, accidents, or unauthorized repairs.
9.2 Klienditugi
For technical assistance, warranty claims, or to order replacement parts, please contact DWVO customer support. Have your model number (MADWVz9zor) and purchase date available when contacting support.
You can visit the official DWVO store for more information: DWVO pood Amazonis
