Scosche FoundIT Charge 32W Car Charger Instruction Manual

Toode läbiview

The Scosche FoundIT Charge is a dual-port car charger designed for your vehicle's 12V cigarette lighter socket. It features 32W total power output, including a 20W USB-C Power Delivery port and a 12W USB-A port. A key feature is its built-in locator, compatible with Apple Find My and Android Find Hub, allowing users to track the charger's location. The device includes an internal rechargeable battery to maintain locator functionality even when unplugged.

Peamised omadused:

Built-in Locator: Compatible with Apple Find My and Android Find Hub for tracking.
Kahe pordiga laadimine: One 20W USB-C PD port and one 12W USB-A port for simultaneous charging.
Kokku väljund: 32W combined power output.
Sisemine aku: Maintains locator function when unplugged or vehicle is off.
Privaatsuskaitse: Encrypted location data, visible only to authorized users.
Automaatne sisselülitamine: Activates when connected to the vehicle's 12V socket.

Scosche FoundIT Charge 32W Car Charger with phone displaying locator map and a car in the background — Image 1: Scosche FoundIT Charge 32W Car Charger. This image displays the charger alongside a smartphone showing its location tracking capabilities, with a car in the background, illustrating its primary function as a car charger with an integrated locator.

Seadistamine ja installimine

Insert into 12V Socket: Plug the Scosche FoundIT Charge directly into your vehicle's 12V cigarette lighter socket. The charger will power on automatically.
Download Locator App:
- For Apple devices: Download the Apple Find My app from the App Store.
- For Android devices: Download the Android Find Hub app from the Google Play Store.
Siduge seade: Follow the on-screen instructions within the chosen locator app to pair your Scosche FoundIT Charge. The app will guide you through the connection process, typically involving a prompt when the device is first detected.
Ühenduse kinnitamine: Once paired, confirm that the charger's location is visible within the app.

Scosche FoundIT Charge 32W Car Charger plugged into a vehicle's 12V power outlet — Image 2: The Scosche FoundIT Charge securely inserted into a car's 12V power outlet, ready for use. This demonstrates the physical installation step.

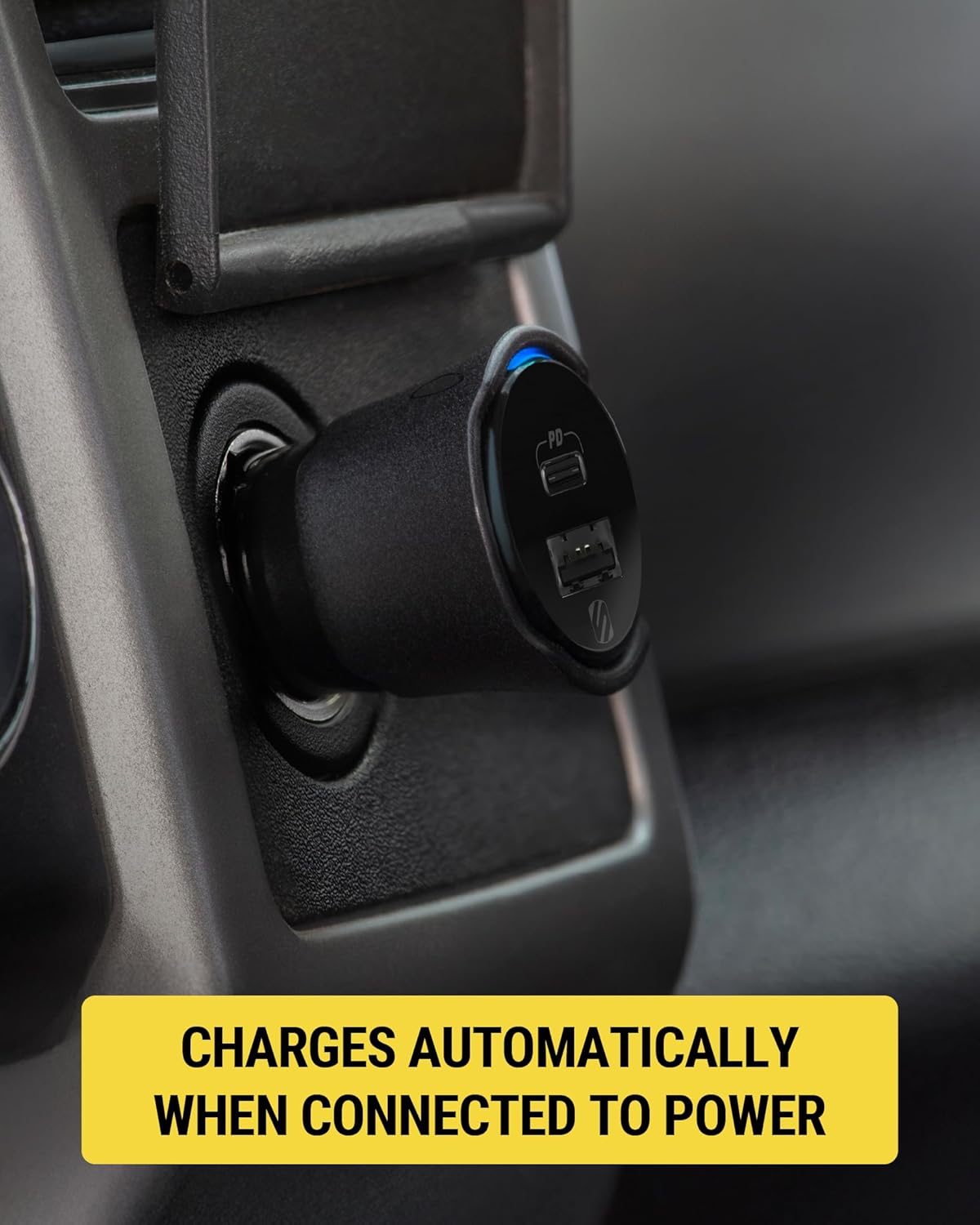

Close-up of the Scosche FoundIT Charge 32W Car Charger in a vehicle's 12V power outlet, showing a blue indicator light — Pilt 3: Lähivõte view of the charger in the 12V socket, highlighting the illuminated blue indicator light, which signifies that the device is powered on and operational.

Kasutusjuhised

Seadmete laadimine:

USB-C PD-port (20W): Use this port with a compatible USB-C cable for fast charging of modern smartphones (e.g., iPhone 12 series and newer, Samsung Galaxy S23/S24/S25) and tablets.
USB-A Port (12W): Use this port with a compatible USB-A cable to charge other accessories such as older smartphones, headphones, or GPS units.
Samaaegne laadimine: Both ports can be used simultaneously to charge two devices. The total output is 32W.

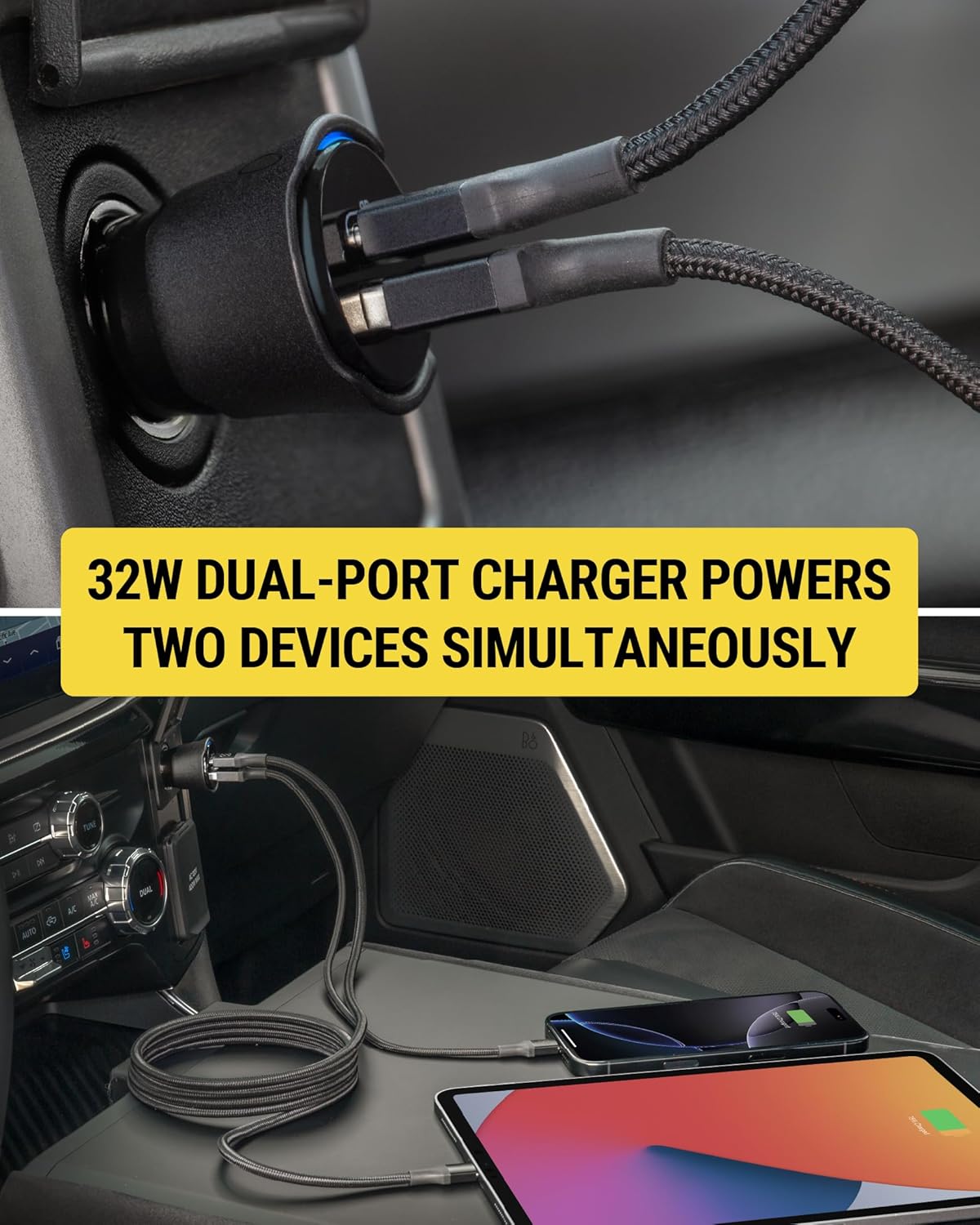

Scosche FoundIT Charge 32W Car Charger simultaneously charging a smartphone and a tablet — Image 4: The dual-port charger actively charging both a smartphone and a tablet, demonstrating its capability to power multiple devices concurrently.

Using the Locator Function:

Locate Your Charger: Open the Apple Find My or Android Find Hub app on your paired device. The app will display the last known location of your FoundIT Charge.
Esita heli: If within Bluetooth range, you can use the app to make the charger emit a sound, helping you pinpoint its exact location.
Juhiste hankimine: The app can provide directions to the charger's location, useful for finding your parked vehicle or a misplaced charger.
Jaga asukohta: You can share the charger's location with trusted individuals through the app.

Smartphone screen displaying the Apple Find My app with the Scosche FoundIT Charge's location and options to play sound or get directions — Image 5: A smartphone screen showing the Find My app interface, with the Scosche FoundIT Charge's location marked on a map, along with options to play a sound or receive directions.

Ametlik tootevideo:

Video 1: Official product video demonstrating the features and functionality of the Scosche FoundIT Charge, including its dual-port charging and built-in item locator.

Hooldus

Sisemine aku: The FoundIT Charge contains an internal rechargeable battery that powers the locator function. This battery recharges automatically when the charger is plugged into a live 12V socket. It can maintain the locator function for up to 3 months between charges. Regular use in your vehicle will keep the internal battery charged.
Puhastamine: Use a dry, soft cloth to clean the exterior of the charger. Avoid using liquid cleaners or solvents.
Hoiustamine: Kui laadijat pikemat aega ei kasutata, hoidke seda jahedas ja kuivas kohas.

Veaotsing

Probleem	Võimalik põhjus	Lahendus
Seade ei lae.	Loose connection in 12V socket. Vigane laadimiskaabel. Vehicle's 12V socket is not powered. Device incompatibility or excessive power draw.	Ensure the charger is firmly seated in the 12V socket. Proovige teist laadimiskaablit. Verify the vehicle's 12V socket is active (e.g., by testing with another device). Veenduge, et teie seade ühildub USB-C PD või tavalise USB-A laadimisega.
Locator not updating or found.	Charger's internal battery is depleted. Bluetooth connection issue. App not properly configured or updated.	Plug the charger into a 12V socket in a running vehicle to recharge its internal battery. Ensure Bluetooth is enabled on your phone and the charger is within range. Check for updates to the Apple Find My or Android Find Hub app. Re-pair the device if necessary.
Aeglane laadimiskiirus.	Mittekiirlaadimiskaabli kasutamine. Seade ei toeta kiirlaadimist. Multiple devices drawing power simultaneously.	Use a high-quality USB-C to USB-C or USB-C to Lightning cable for fast charging. Confirm your device supports 20W USB-C Power Delivery. Charging two devices simultaneously may distribute power, potentially reducing individual charging speeds.

Tehnilised andmed

Mudel: CPD32LT (FoundIT Charge)
Sisend: 12 Volts (from vehicle's 12V socket)
Väljund:
- USB-C PD Port: 20W
- USB-A Port: 12W
- Võimsus kokku: 32W
Ühenduvus: Bluetooth (for locator function)
Kaal: Umbes 3.2 untsi
Mõõdud: Approximately 2.55 inches (length) x 1.21 inches (diameter)
Materjal: Plastikust
Eriomadused: Fast Charging, Multi-Device Charging, Built-in Locator (Apple Find My & Android Find Hub compatible)

Diagram showing the dimensions and port types of the Scosche FoundIT Charge 32W Car Charger — Image 6: A detailed diagram illustrating the physical dimensions and the specific output wattage for both the 20W USB-C and 12W USB-A ports on the charger.
