tectake Ergonomic Swivel Office Chair with Footrest - Model 406164

1. Sissejuhatus

Thank you for choosing the tectake Ergonomic Swivel Office Chair with Footrest, Model 406164. This chair is designed to provide optimal comfort and support for long hours of work or relaxation. It features an ergonomic design, thick padding, soft velour upholstery, an adjustable backrest, a height-adjustable gas lift, and a foldable footrest. Please read this manual carefully before assembly and use to ensure proper installation, operation, and maintenance.

2. Ohutusjuhised

• Järgige alati hoolikalt kokkupanekujuhiseid. Vale kokkupanek võib põhjustada ebastabiilsust ja vigastusi.
• Ärge seiske toolil.
• Ärge kasutage tooli, kui mõni osa on kahjustatud või puudu. Varuosade saamiseks võtke ühendust klienditoega.
• Ensure all screws and bolts are tightened securely before use and check them periodically.
• Kokkupaneku ajal hoidke lapsed ja lemmikloomad toolist eemal. Väikesed osad võivad lämbumisohtu kujutada.
• Ärge ületage maksimaalset kandevõimet 120 kg.
• Kasutage tooli tasasel pinnal, et vältida ümberkukkumist.

3. Pakendi sisu

Before beginning assembly, please ensure all components are present and undamaged. The package should contain:

• Office Chair components (backrest, seat, armrests, gas lift, base, castors, footrest)
• Assembly materials (screws, bolts, washers, Allen key)
• Paigaldusjuhised (käesolev juhend)

Figure 3.1: A detailed diagram showing the overall dimensions of the chair, including total height, width, depth, seat height, seat surface, backrest height, and footrest dimensions.

4. Seadistamine ja kokkupanek

Follow these steps to assemble your tectake office chair. It is recommended to assemble the chair on a soft, clean surface to prevent damage.

1. Kinnitage rattad alusele: Insert the five double castors into the holes at the end of the chair base until they click securely into place.
2. Sisestage gaasitõstuk: Asetage gaasiballoon kokkupandud aluse keskmisesse auku. Veenduge, et see on kindlalt paigas.
3. Kinnitage mehhanism istmele: Secure the seat mechanism to the underside of the seat cushion using the provided screws. Pay attention to the 'FRONT' marking on the mechanism.
4. Ühendage iste gaasitõstukiga: Carefully place the assembled seat (with mechanism) onto the gas lift cylinder.
5. Kinnitage käetoed: Secure the armrests to both the seat and the backrest using the designated screws. Do not overtighten initially.
6. Kinnitage seljatugi: Connect the backrest to the seat and armrests. Ensure all screws are aligned before tightening.
7. Jalatoe paigaldamine: Attach the foldable footrest mechanism to the underside of the seat as per the instructions provided with the footrest components.
8. Lõplik pingutamine: Once all parts are in place, tighten all screws securely. Test the chair's stability before use.

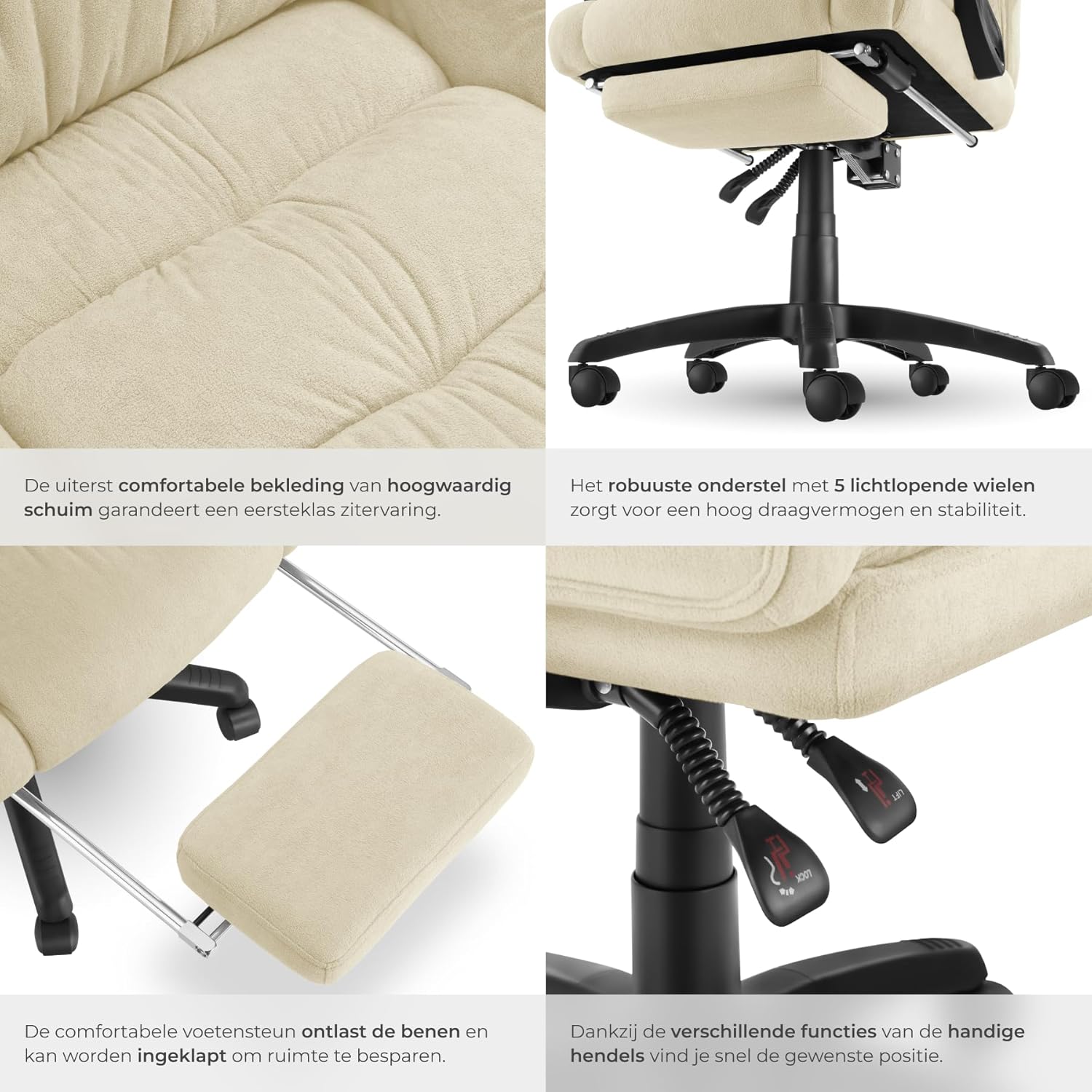

Figure 4.1: Multiple close-up shots detailing the comfortable velour upholstery, the sturdy five-star base with smooth-rolling castors, the foldable footrest mechanism, and the levers for height and tilt adjustments, which are relevant during assembly.

5. Kasutusjuhised

Your tectake office chair offers several adjustment options for personalized comfort:

• Kõrguse reguleerimine: To adjust the seat height, pull the lever located on the right side of the seat upwards. While pulling the lever, stand up to raise the seat or remain seated to lower it. Release the lever at the desired height.
• Backrest Tilt/Rocking Function: The chair features a flexible tilt function. Use the lever on the left side of the seat to engage or disengage the rocking mechanism. Some models may also allow locking the backrest in various positions.
• Jalatoe kasutamine: To extend the footrest, pull it out from underneath the seat. To retract it, push it back in until it is fully stored. The footrest provides additional leg support and relaxation.
• Pööramisfunktsioon: The chair is designed to swivel 360 degrees, allowing for maximum freedom of movement.

Figure 5.1: An image illustrating the chair's flexible backrest tilt and the adjustable, extendable footrest, showcasing its adaptability to user preferences.

Figure 5.2: This image highlights the chair's stable gas lift with SGS and BIFMA certification, the rocking function with lockable backrest, ergonomic shape for healthy posture, and 360-degree swivel function for maximum freedom of movement.

6. Hooldus

Regulaarne hooldus aitab pikendada teie kontoritooli eluiga ja säilitada selle välimust:

• Puhastamine: For the velour upholstery, gently vacuum to remove dust and debris. For spills, dab immediately with a clean, damp lapiga. Vältige tugevatoimelisi kemikaale või abrasiivseid puhastusvahendeid.
• Riistvara kontroll: Kontrollige regulaarselt kõiki kruvisid ja polte, et need oleksid kindlalt kinni. Vajadusel pingutage neid stabiilsuse säilitamiseks.
• Castor Care: Clean the castors regularly to remove hair and debris that can impede smooth movement.
• Gaasitõstuk: The gas lift is a sealed unit and requires no maintenance. If it malfunctions, contact customer support.

7. Veaotsing

Kui teil tekib tooliga probleeme, vaadake järgmisi levinud probleeme ja lahendusi:

• Tool on kõikuv: Ensure all assembly screws are fully tightened. Check that the gas lift is properly seated in the base and seat mechanism.
• Tooli kõrgust ei saa reguleerida: Check if the height adjustment lever is fully engaged. If the gas lift is faulty, it may need replacement.
• Castors do not roll smoothly: Remove any hair or debris wrapped around the castor wheels. Ensure the castors are fully inserted into the base.
• Seljatugi ei kalluta ega lukustu: Check the tilt tension knob (usually underneath the seat) and the tilt lock lever. Adjust the tension or ensure the lever is in the correct position.

Kui need sammud probleemi ei lahenda, võtke ühendust klienditoega.

8. Tehnilised andmed

9. Garantii ja tugi

For warranty information, please refer to the purchase documentation or contact your retailer. If you require technical assistance, replacement parts, or have any questions not covered in this manual, please contact tectake customer support through their official webveebisaidil või ostu sooritamisel antud kontaktandmete kaudu.
