TP-Link TL-MC102 Gigabit SFP to RJ45 Fiber Media Converter User Manual

1. Toote lõppview

The TP-Link TL-MC102 is a media converter designed to facilitate the conversion between 1000BASE-SX fiber and 1000Base-T copper media. It supports Gigabit Ethernet standards (IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX) and is compatible with multi-mode fiber optic cables using SC-Type connectors. This device operates at 850nm wavelength for both transmitting and receiving data, offering full wire-speed forwarding. It can function as a standalone unit or be integrated into TP-Link's MC1400 chassis. Key features include Auto MDI/MDI-X for the TX port and front panel status LEDs for easy monitoring.

The TL-MC102 extends fiber optic distances up to 0.55 kilometers (550 meters) when using 50/125µm multi-mode fiber, or 220 meters with 62.5/125µm multi-mode fiber.

2. Pakendi sisu

Veenduge, et teie pakett sisaldab järgmisi esemeid:

• 1 x TL-MC102 Gigabit SFP to RJ45 Fiber Media Converter
• 1 x toiteadapter
• 1 x paigaldusjuhend

3. Toote omadused

• Converts 1000BASE-SX fiber to 1000Base-T copper media and vice versa.
• Supports auto-negotiation for Half-Duplex / Full-Duplex transfer modes.
• Features auto MDI/MDI-X for the TX port.
• Provides switch configuration for Force/Auto transfer mode on the FX port.
• Extends fiber distance up to 550m (1,800 feet) using 50/125µm Multi-Mode Fiber.
• Extends fiber distance up to 220m (720 feet) using 62.5/125µm Multi-Mode Fiber.
• Equipped with easy-to-view LED indicators for monitoring network activity.
• External power supply for operation.
• Operates at a wavelength of 850nm.
• Maximum power consumption: 1.66W.
• Complies with IEEE 802.3ab and IEEE 802.3z standards.

4. Riistvara lõppenudview

The TL-MC102 features a compact design with essential ports and LED indicators for status monitoring.

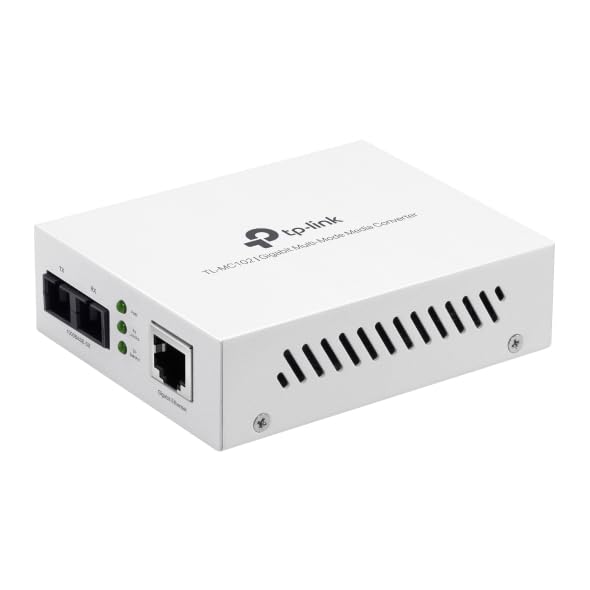

Joonis 1: Esiosa view of the TL-MC102 Gigabit SFP to RJ45 Fiber Media Converter. This image shows the compact white casing of the device, highlighting its ports and LED indicators on the front panel.

Portid ja pistikud:

• RJ45 Port (TX): Standard Ethernet port for connecting to copper-based network devices (e.g., switch, router, computer) using an Ethernet cable. Supports 10/100/1000Mbps speeds and Auto MDI/MDI-X.
• SFP Port (FX): Slot for an SFP (Small Form-Factor Pluggable) module. This port is used for fiber optic connections. The TL-MC102 is designed for 1000BASE-SX multi-mode SFP modules.
• Toite sisend: Välise toiteadapteri pistik.

LED indikaatorid:

The front panel LEDs provide real-time status information about the converter's operation:

• PWR (võimsus):
  • Sees: The converter is powered on.
  • Väljas: The converter is powered off.
• FX Link/Act (kiudlink/tegevus):
  • Sees: A fiber link is established.
  • Vilgub: Andmeid edastatakse või võetakse vastu fiiberühenduse kaudu.
  • Väljas: No fiber link is established.
• TX Link/Act (Copper Link/Activity):
  • Sees: A copper Ethernet link is established.
  • Vilgub: Data is being transmitted or received over the copper link.
  • Väljas: No copper Ethernet link is established.
• TX 1000 (Copper Speed):
  • Sees: The copper port is operating at 1000Mbps.
  • Väljas: The copper port is operating at 10/100Mbps.

5. Seadistusjuhised

Follow these steps to set up your TL-MC102 media converter:

1. Väljalülitusseadmed: Before making any connections, ensure that all devices (e.g., switch, router, computer) to be connected to the media converter are powered off.
2. SFP-mooduli sisestamine: Carefully insert a compatible 1000BASE-SX multi-mode SFP module into the SFP port (FX) of the TL-MC102. Ensure it clicks into place.
3. Ühendage kiudkaabel: Connect one end of a multi-mode fiber optic cable (with SC-Type connectors) to the SFP module in the TL-MC102. Connect the other end of the fiber cable to a compatible fiber optic device (e.g., fiber switch, another media converter).
4. Etherneti kaabli ühendamine: Connect one end of an Ethernet cable to the RJ45 port (TX) of the TL-MC102. Connect the other end of the Ethernet cable to the Ethernet port of your copper-based network device (e.g., switch, router, PC).
5. Ühendage toiteadapter: Plug the provided power adapter into the power input of the TL-MC102, then plug the other end into a standard electrical outlet.
6. Seadmete sisselülitamine: Power on the TL-MC102. The PWR LED should illuminate. Then, power on your connected network devices.
7. Ühenduste kinnitamine: Check the LED indicators on the TL-MC102. The FX Link/Act and TX Link/Act LEDs should illuminate, indicating successful link establishment. If data is flowing, these LEDs will flash. The TX 1000 LED should be on if the copper connection is at Gigabit speed.

Märkus. Ensure that the fiber optic cable type (multi-mode) and connector type (SC) match the requirements of the SFP module and the connected fiber device.

6. Kasutusjuhised

Once properly set up, the TL-MC102 operates automatically to convert signals between fiber and copper media. No further configuration is typically required for basic operation.

Jälgimise olek:

Regularly observe the LED indicators on the front panel to monitor the status of your network connections:

• Tahke PWR LED indicates the device is receiving power.
• Tahke FX link/tegu ja TX link/akt LEDs confirm active network links on both fiber and copper sides.
• Vilkuv FX link/tegu ja TX link/akt LEDs indicate active data transmission.
• Tahke TX 1000 LED confirms a Gigabit Ethernet connection on the copper side.

If any Link/Act LED is off when it should be on, refer to the Troubleshooting section.

7. Hooldus

To ensure optimal performance and longevity of your TL-MC102, consider the following maintenance guidelines:

• Hoidke puhas: Puhastage seadme välispinda regulaarselt pehme ja kuiva lapiga. Vältige vedelate või aerosoolpuhastusvahendite kasutamist.
• Ventilatsioon: Veenduge, et seade oleks ülekuumenemise vältimiseks hästi ventileeritavas kohas. Ärge blokeerige ühtegi ventilatsiooniava.
• Kaabli haldamine: Keep fiber and Ethernet cables neatly organized and free from kinks or excessive bends, especially fiber optic cables which are sensitive to bending.
• Toiteallikas: Use only the power adapter provided with the device. If a replacement is needed, ensure it meets the exact specifications.
• Keskkond: Operate the device within its specified environmental conditions (temperature, humidity) to prevent damage.
• Püsivara värskendused: While media converters typically do not require frequent firmware updates, check the TP-Link support website periodically for any recommended updates for your model.

8. Veaotsing

If you encounter issues with your TL-MC102, refer to the following common problems and solutions:

1. Toide puudub (PWR LED ei tööta):
   • Ensure the power adapter is securely connected to the converter and a working electrical outlet.
   • Veenduge, et pistikupesa töötab, ühendades sinna teise seadme.
   • Kontrollige, kas toiteadapter on kahjustatud.
2. No Fiber Link (FX Link/Act LED Off):
   • Verify that the SFP module is correctly inserted into the SFP port.
   • Kontrollige fiiberoptilist kaablit kahjustuste või keerdude suhtes.
   • Ensure the fiber cable connectors are clean and properly seated at both ends.
   • Confirm that the connected fiber device is powered on and functioning correctly.
   • Ensure the SFP module and the connected fiber device are compatible (e.g., multi-mode to multi-mode, correct wavelength).
3. No Copper Link (TX Link/Act LED Off):
   • Check the Ethernet cable for damage and ensure it is securely connected to both the TL-MC102 and the network device.
   • Verify that the connected network device (e.g., switch, router, PC) is powered on and its Ethernet port is active.
   • Proovige teist Etherneti kaablit.
   • Ensure the network device's Ethernet port is configured correctly (e.g., not disabled).
4. Aeglane võrgu kiirus:
   • Check the TX 1000 LED. If it's off, the copper connection is not at Gigabit speed. This could be due to the connected device or cable.
   • Ensure all connected devices (including the SFP module) support Gigabit Ethernet.
   • Inspect Ethernet and fiber cables for damage or poor connections.
5. Katkendlik ühenduvus:
   • Check all cable connections (power, Ethernet, fiber) for looseness.
   • Veenduge, et seade ei kuumeneks üle.
   • Veenduge, et toiteallikas on stabiilne.
   • Consider testing with different cables or SFP modules if available.

9. Tehnilised andmed

10. Garantii ja tugi

Garantii teave:

The TP-Link TL-MC102 comes with a 2-aastane tootjagarantii. Please retain your proof of purchase for warranty claims. For detailed warranty terms and conditions, refer to the official TP-Link webveebisaidilt või tootega kaasasolevalt garantiikaardilt.

Tehniline tugi:

For technical support, product updates, and additional resources, please visit the official TP-Link support websait. Tavaliselt leiate sealt KKK-d, tõrkeotsingu juhendid ja klienditeeninduse kontaktandmed.

TP-Linki ametlik Websait: www.tp-link.com
