Thank you for choosing the Delta Stryke Mid-Height Matte Black Bathroom Faucet. This manual provides detailed instructions for the proper installation, operation, and maintenance of your new faucet. Please read all instructions carefully before beginning installation to ensure safe and correct operation.

The Delta Stryke Bath Collection radiates confidence and composure with its subtly upturned spout and handles. Featuring DIAMOND Seal Technology, this faucet is designed to perform like new for life by reducing leak points and lasting twice as long as the industry standard. WaterSense labeled, it uses at least 20% less water without compromising performance.

2. Ohutusalane teave

• Enne mis tahes töö alustamist lülitage alati kraanist tulev veevarustus välja.
• Silmade kaitsmiseks kandke paigaldamise ajal kaitseprille.
• Veenduge, et kõik ühendused oleksid kindlalt paigas, et vältida lekkeid.
• Kui te pole paigalduse mõne osa suhtes kindel, pidage nõu kvalifitseeritud torulukksepaga.
• This product complies with "lead-free" legislation and meets or exceeds applicable product performance and U.S. safety industry standards.

3. Mis on kaasas

Your Delta Stryke Faucet package includes the following components:

• Faucet assembly with integrated InnoFlex PEX supply lines
• Mounting hardware (bracket, nut)
• Plastist tihend
• Aeraatori mutrivõti
• Paigaldusjuhised

Märkus. Drain assembly is ei kuulu. Purchase push pop drain assembly model RP101630 in the coordinating finish if needed.

4. Paigaldamiseks vajalikud tööriistad

Before you begin, ensure you have the following tools and supplies:

• Adjustable Wrench (2 recommended)
• Kaitseprillid
• Towel (for cleanup)
• Pot or Bucket (for flushing lines)
• Flashlight (if working in a dark area)
• Plumber's Tape (if replacing the drain)
• Silicone Sealant (for uneven sink surfaces)

5. Paigaldusjuhised

5.1. Valmistuge installimiseks

• Lülitage kraanikausi veevarustus välja.
• Tühjendage valamu all olev ala.
• Eemaldage vana kraan, kui see on olemas.

5.2. Segisti paigaldamine

The Delta Stryke Faucet is designed for a single-hole configuration. This model is designed for a single hole installation and does not require an escutcheon plate.

1. Ensure the plastic gasket (smooth side down, ridge up) is properly positioned on the faucet's base, feeding the PEX supply lines through its center.
2. Carefully feed the PEX supply lines and the mounting stud down through the center hole of your sink. Ensure the tag on the supply lines remains intact as it contains important product information.
3. If your sink surface is rough or tiled, apply a thin ring of silicone sealant around the hole before placing the faucet to ensure a watertight seal.
4. From underneath the sink, hand-tighten the mounting nut onto the mounting stud to hold the faucet upright.
5. From above the sink, ensure the faucet is straight and centered. Once aligned, fully tighten the mounting nut from underneath the sink.

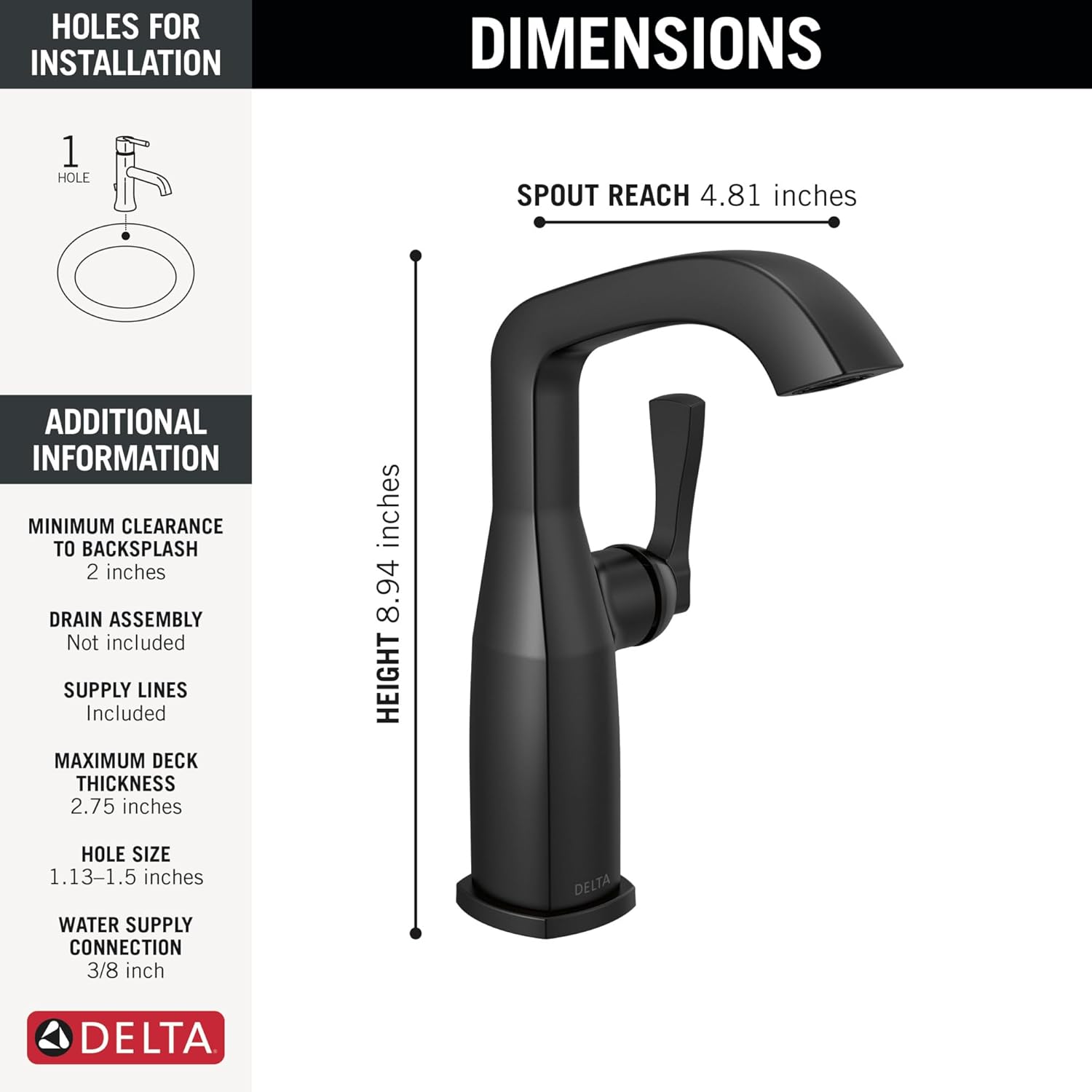

Figure 1: Faucet Dimensions and Installation Requirements. This image illustrates the faucet's height (8.94 inches) and spout reach (4.81 inches), along with installation details such as 1-hole requirement, minimum clearance to backsplash (2 inches), maximum deck thickness (2.75 inches), hole size (1.13-1.5 inches), and water supply connection (3/8 inch).

Figure 2: InnoFlex PEX Supply Lines. This image highlights the integrated InnoFlex PEX supply lines, designed to resist cracks, kinks, and corrosion, simplifying installation.

5.3. Connecting Supply Lines

Delta has color-coded the supply lines for easy identification: red for hot water, blue for cold water.

1. Connect the red-coded supply line to the hot water stub-out and the blue-coded supply line to the cold water stub-out.
2. Hand-tighten the connections first.
3. Use an adjustable wrench to tighten the connections. Turn the nut one full 360-degree rotation after hand-tightening to ensure a secure, leak-free connection.
4. If supply lines are too long, loop them to prevent kinks, ensuring the loop is not tighter than 8 inches.

5.4. Flushing the Faucet

Flushing the lines removes any debris that may have entered during installation, which could otherwise restrict water flow.

1. Locate the aerator wrench (included in your packaging).
2. Use the aerator wrench to unscrew and remove the aerator cartridge from the underside of the faucet spout. Set it aside carefully.
3. Place a washcloth over the end of the spout to minimize splashing.
4. Turn the faucet handle to the full mixed position (equally hot and cold, typically directly in the middle and all the way up) to ensure water flows from both lines.
5. Run water for approximately 30 seconds to flush out any debris.
6. Turn off the water, then re-install the aerator cartridge using the aerator wrench. Ensure it is snug but do not overtighten.
7. Check for any leaks around the faucet base and handle.

6. Operatsioon

The Delta Stryke Faucet features a single handle for easy control of water temperature and flow.

• Veevool: Lift the handle to increase water flow. Push down to decrease flow and turn off.
• Temperatuuri kontroll: Move the handle to the left for hot water and to the right for cold water. The middle position provides a mix of hot and cold water.

7. Hooldus

7.1. Segisti puhastamine

The Delta Stryke Faucet features a durable finish designed to resist corrosion, tarnishing, and discoloration. For best results, clean regularly with a soft, damp cloth. Avoid abrasive cleaners, harsh chemicals, or polishes as these can damage the finish.

The Lumicoat finish repels liquids and resists water spots, making it easy to wipe clean without chemicals or cleaners.

7.2. Aeraatori puhastamine

If water flow becomes restricted, the aerator may need cleaning. Use the aerator wrench to remove the aerator, rinse any debris, and re-install.

8. Veaotsing

9. Tehnilised andmed

10. Garantii teave

Delta Faucets are backed by a Eluaegne piiratud garantii on both the faucet and its finish. This warranty ensures that your faucet will perform like new for life, thanks to the patented DIAMOND Seal Technology that reduces leak points and lasts twice as long as the industry standard.

Figure 3: Lifetime Limited Warranty Icon. This icon signifies the comprehensive lifetime limited warranty provided by Delta for their faucets and finishes.

Figure 4: DIAMOND Valve Technology. This diagram illustrates how the DIAMOND Valve eliminates wear on seals, ensuring leak-free operation for the life of the faucet, lasting 2x longer than the industry standard.

11. Klienditugi

For any questions, assistance, or warranty claims, please contact Delta Customer Service.

Phone: 1-800-345-DELTA (3358)

Delta Faucet Company has been recognized by J.D. Power for providing "An Outstanding Customer Service Experience" for phone support for multiple years.

Figure 5: Delta Customer Service. This image provides the customer service phone number and highlights Delta's recognition for outstanding customer service by J.D. Power.
