tectake Retractable Awning Instruction Manual

1. Sissejuhatus

Thank you for choosing the tectake Retractable Awning. This manual provides essential information for the safe and efficient assembly, operation, and maintenance of your awning. Please read all instructions carefully before use and retain this manual for future reference.

This awning is designed to provide shade and privacy for your outdoor spaces such as balconies, terraces, and gardens. Its no-drill design offers flexible installation and easy adjustment.

2. Ohutusalane teave

WARNING: Please read the assembly and disassembly instructions carefully. Ensure the awning is properly anchored and stable before use. Do not leave the awning extended during bad weather or strong winds to avoid damage or accidents.

• Always ensure all components are securely fastened before and during use.
• Do not hang heavy objects from the awning structure.
• Hoidke lapsed ja lemmikloomad varikatuse kokkupaneku ja kasutamise ajal sellest eemal.
• Regularly inspect the awning for any signs of wear or damage. Replace damaged parts immediately.
• Ärge kasutage kangal ega raamil abrasiivseid puhastusvahendeid ega karme kemikaale.

3. Toote omadused

• Multifunctionality and Maneuverability: Easy-to-use crank for adjusting shade. Can be used as a patio parasol or sunshade.
• Elegant Design, Guaranteed Solidity: Lacquered steel structure and aluminum arms. No drilling required for installation. Weather-resistant.
• Easy Assembly, Unrivaled Flexibility: Quick installation with screw-on feet and telescopic rods. Versatile for use as a retractable privacy screen or outdoor patio awning.
• Ultimate Protection, Assured Privacy: UV-resistant fabric protects against harmful rays and acts as an opaque privacy screen. Multiple configurations for garden or balcony privacy.
• Easy Maintenance, Exceptional Adaptability: Water-resistant fabric is easy to clean. Non-slip plastic end caps protect surfaces. Adjustable arms for perfect adaptation as a patio awning, outdoor garden awning, or no-drill balcony awning.

4. Osade nimekiri

Before starting assembly, ensure all parts are present and undamaged. Refer to the diagrams for identification.

Figure 1: All components of the tectake retractable awning laid out for inspection.

Figure 2: Detailed product diagram showing technical specifications and assembly components.

• Awning Fabric (Polyester)
• Main Roller Tube (Aluminum)
• Telescopic Support Poles (Steel)
• Adjustable Arms (Aluminum)
• Vända käepide
• Paigaldus Clamps/Sulud
• Screw-on Feet with Non-slip Caps
• Fasteners (Screws, Nuts)
• Kasutusjuhend

5. Seadistamine ja kokkupanek

Assembly requires two adults. Follow these steps carefully.

5.1. Prepare the Fabric and Roller Tube

1. Lay the awning fabric flat on a clean, soft surface.
2. Assemble the main roller tube sections by connecting them securely.
3. Slide the fabric onto the main roller tube, ensuring it is centered and aligned. Secure the fabric to the tube using the provided screws.

Figure 3: Attaching the awning fabric to the main roller tube.

5.2. Assemble the Support Poles and Arms

4. Assemble the telescopic support poles. Attach the adjustable arms to the main roller tube using the clamps ja kinnitusdetailid.
5. Connect the crank mechanism to the designated point on the roller tube.

Figure 4: Connecting the adjustable arms to the main roller tube.

5.3. Final Installation

6. Position the assembled awning in the desired location. Ensure the top of the telescopic poles are securely pressed against a stable overhead surface (e.g., balcony ceiling, window frame).
7. Adjust the height of the telescopic poles by turning the screw-on feet until the awning is firmly secured and stable. The adjustable height range is 0-3 cm for fine-tuning.
8. Ensure the awning is level and the arms are correctly angled for optimal shade or privacy.

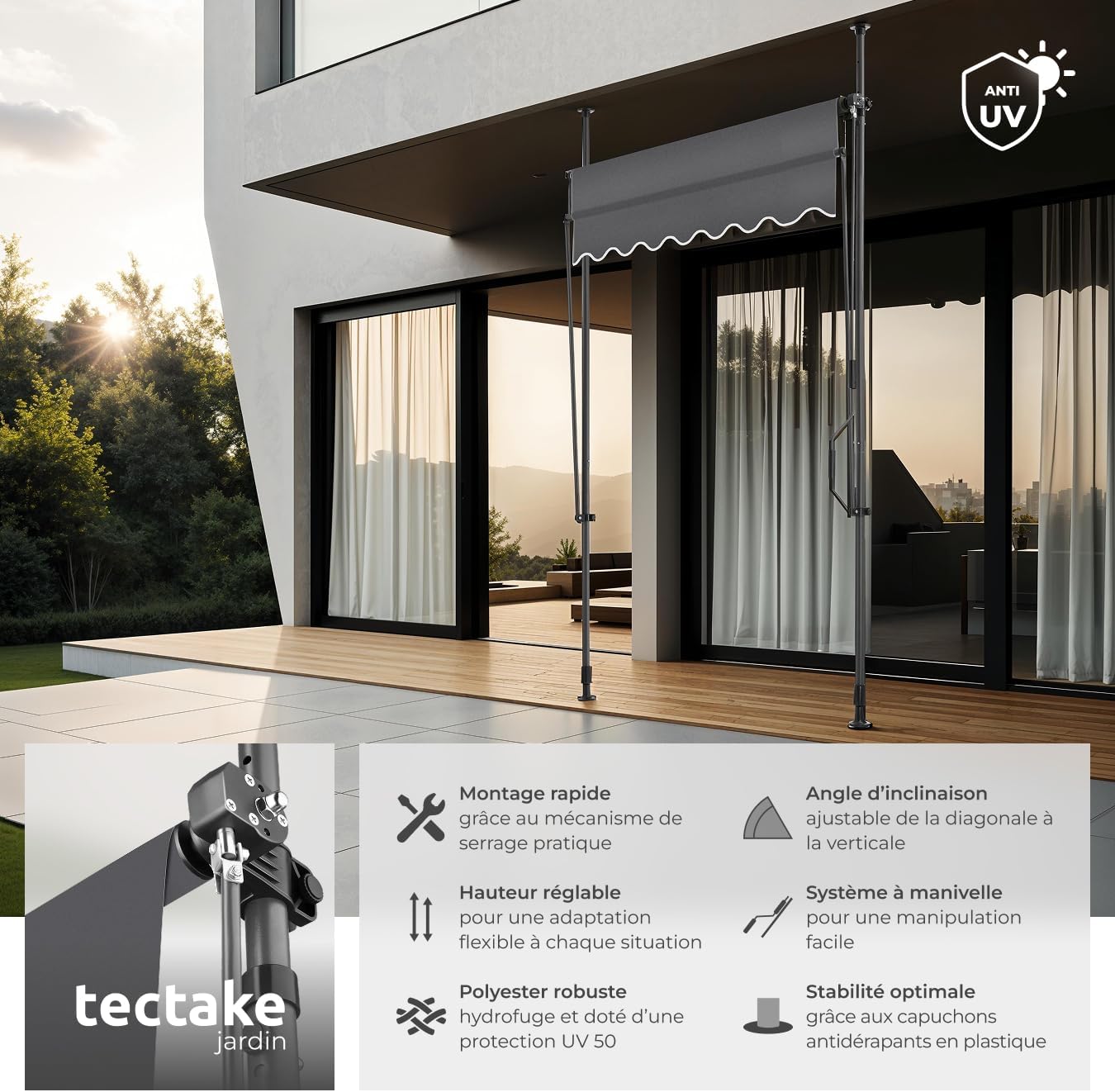

Figure 5: The tectake retractable awning installed on a patio, providing shade.

5.4. Assembly Video Guides

6. Kasutusjuhised

The tectake retractable awning is operated manually using the provided crank handle.

1. Varikatuse pikendamiseks: Insert the crank handle into the designated loop on the side of the awning. Turn the handle clockwise to extend the fabric.
2. Varikatuse sissetõmbamiseks: Turn the crank handle counter-clockwise to retract the fabric.
3. Adjust the angle of the arms as needed to achieve the desired shade or privacy.

Figure 6: The awning fully extended, creating a comfortable shaded area.

7. Hooldus

• Puhastamine: The water-resistant polyester fabric is easy to clean. Use a mild soap solution and a soft brush or cloth. Rinse thoroughly with water and allow to air dry completely before retracting.
• Raami hooldus: The lacquered steel and aluminum frame can be wiped clean with a damp cloth. Avoid abrasive materials that could scratch the finish.
• Hooajaline ladustamine: For prolonged periods of non-use or during harsh weather conditions (e.g., winter, strong winds), it is recommended to retract the awning fully. If possible, disassemble and store in a dry, protected area to extend its lifespan.
• Ülevaatus: Periodically check all screws, bolts, and connections to ensure they are tight. Re-tighten as necessary. Inspect the fabric for any tears or damage.

Figure 7: The awning's weather-resistant features, suitable for sun and light rain.

8. Veaotsing

• Awning not extending/retracting smoothly: Check the crank mechanism for any obstructions or damage. Ensure the fabric is not caught or misaligned.
• Varikatus tundub ebastabiilne: Verify that the telescopic poles are fully extended and securely locked in place. Ensure the screw-on feet are tightly adjusted against the top and bottom surfaces.
• Fabric sagging: Check the tension of the adjustable arms. Adjust them to provide adequate support to the fabric.
• Water pooling on fabric: Ensure the awning is installed with a sufficient slope to allow water runoff. Adjust the angle of the arms if necessary.

9. Tehnilised andmed

10. Garantii ja tugi

For warranty information or technical support, please refer to the purchase documentation or contact tectake customer service directly. Details can usually be found on the retailer's websaidil või teie tellimuse kinnituses.
