Sissejuhatus
Thank you for choosing the VEVOR 004-2.44M-D Barn Door Hardware Kit. This manual provides essential information for the safe and correct installation, operation, and maintenance of your new sliding barn door system. Please read these instructions thoroughly before beginning installation to ensure proper setup and to prevent damage or injury. Keep this manual for future reference.
Image: The VEVOR 004-2.44M-D Barn Door Hardware Kit installed on a white barn door, showcasing the 2-section track and J-shape hangers. The image highlights the system's suitability for doors between 4.6-5.2 ft wide and 1.3-1.8 inches thick.
Ohutusteave
Always follow these safety guidelines to ensure safe installation and operation:
- Lugege kõiki juhiseid: Familiarize yourself with all steps before installation.
- Õiged tööriistad: Use appropriate tools for installation. Ensure they are in good working condition.
- Seina struktuur: Verify that the wall where the track will be mounted is structurally sound and can support the weight of the door and hardware. Reinforcement may be necessary.
- Ukse kaal: Ensure the door's weight does not exceed the maximum load capacity of 150 kg (330 lbs).
- Paigaldamine kahele inimesele: It is recommended to have two people for lifting and hanging the door to prevent injury.
- Kliirens: Ensure there is adequate clearance above the door opening for the track and hangers.
- Turvalised kinnitusdetailid: Keerake kõik kruvid ja poldid kindlalt kinni, kuid ärge pingutage üle.
- Lapsed ja lemmikloomad: Hoidke lapsed ja lemmikloomad paigalduspiirkonnast eemal.
- Regulaarne ülevaatus: Periodically check all components for wear, damage, or loose fasteners.
Pakendi sisu
Carefully unpack the box and ensure all items listed below are present and undamaged. If any parts are missing or damaged, please contact VEVOR customer support.
- 2 x 150 cm (5 ft) Sliding Barn Door Rails (Total 300 cm / 10 ft)
- 2 x J-Shaped Hangers
- 7 x plastist seibid
- 2 x Anti-Jump Pads
- 2 x Door Stops
- 1 x Floor Guide
- 7 x Guide Rail Spacers
- 1 x Installation Tool (Hex Key)
- 1 x Mounting Screw Kit (various screws and anchors)
- 1 x kasutusjuhend
Pilt: Põhjalik view of all accessories included in the VEVOR barn door hardware kit, laid out neatly. This includes the two track sections, J-shape hangers, door stops, floor guide, anti-jump pads, and various mounting hardware.
Tehnilised andmed
The VEVOR 004-2.44M-D Barn Door Hardware Kit is designed for robust performance and durability. Refer to the table below for detailed product specifications:
| Funktsioon | Spetsifikatsioon |
|---|---|
| Mudeli number | 004-2.44M-D |
| Peamine materjal | Süsinikteras |
| Värv | Must |
| Raja kogupikkus | 300 cm (10 ft), composed of two 150 cm sections |
| Maksimaalne kandevõime | 150 kg (330 naela) |
| Adapted Door Width | 1.4 - 1.6 m (4.6 - 5.2 ft) |
| Adapted Door Thickness | 32–45 mm (1.3–1.8 tolli) |
| Netokaal | 7.83 kg (17.3 naela) |
| Nõutav kokkupanek | Jah |
Image: A detailed diagram illustrating the dimensions of various components of the VEVOR barn door hardware kit, including the J-shape hanger, track, and mounting hardware. Key measurements for door thickness, width, and load capacity are also provided.
Seadistamine ja installimine
Follow these steps carefully for a successful installation. Ensure you have all necessary tools, including a drill, level, measuring tape, and screwdriver.
- Prepare the Wall and Door:
- Measure the width of your door. The track length should be approximately twice the door width for a single door. This kit provides a 300 cm (10 ft) track, suitable for doors 1.4-1.6 m (4.6-5.2 ft) wide.
- Determine the desired height for the track. It should be at least the door height plus the height of the hangers (approximately 11.2 inches / 28.5 cm from the top of the door to the top of the roller). Mark a level line on the wall for the track's top edge.
- Locate wall studs or use appropriate wall anchors for secure mounting. Mark the drilling points for the track spacers.
- Raja paigaldamine:
- Puurige märgistatud kohtadesse juhtaugud.
- Attach the track spacers to the wall using the provided screws and anchors.
- Mount the two 150 cm track sections onto the spacers, ensuring they are perfectly aligned and level. Secure them firmly.
Pilt: Lähivõte view of the installed barn door track with J-shape hangers, demonstrating the secure attachment to the wall and the smooth rolling mechanism. This image illustrates the track assembly and hanger placement.
- Attach Hangers to the Door:
- Place the door on a stable surface.
- Position the J-shaped hangers on the top edge of the door, typically about 2-4 inches from each end. Ensure they are evenly spaced and aligned.
- Mark and drill pilot holes for the hanger bolts.
- Securely attach the hangers to the door using the provided bolts and washers.

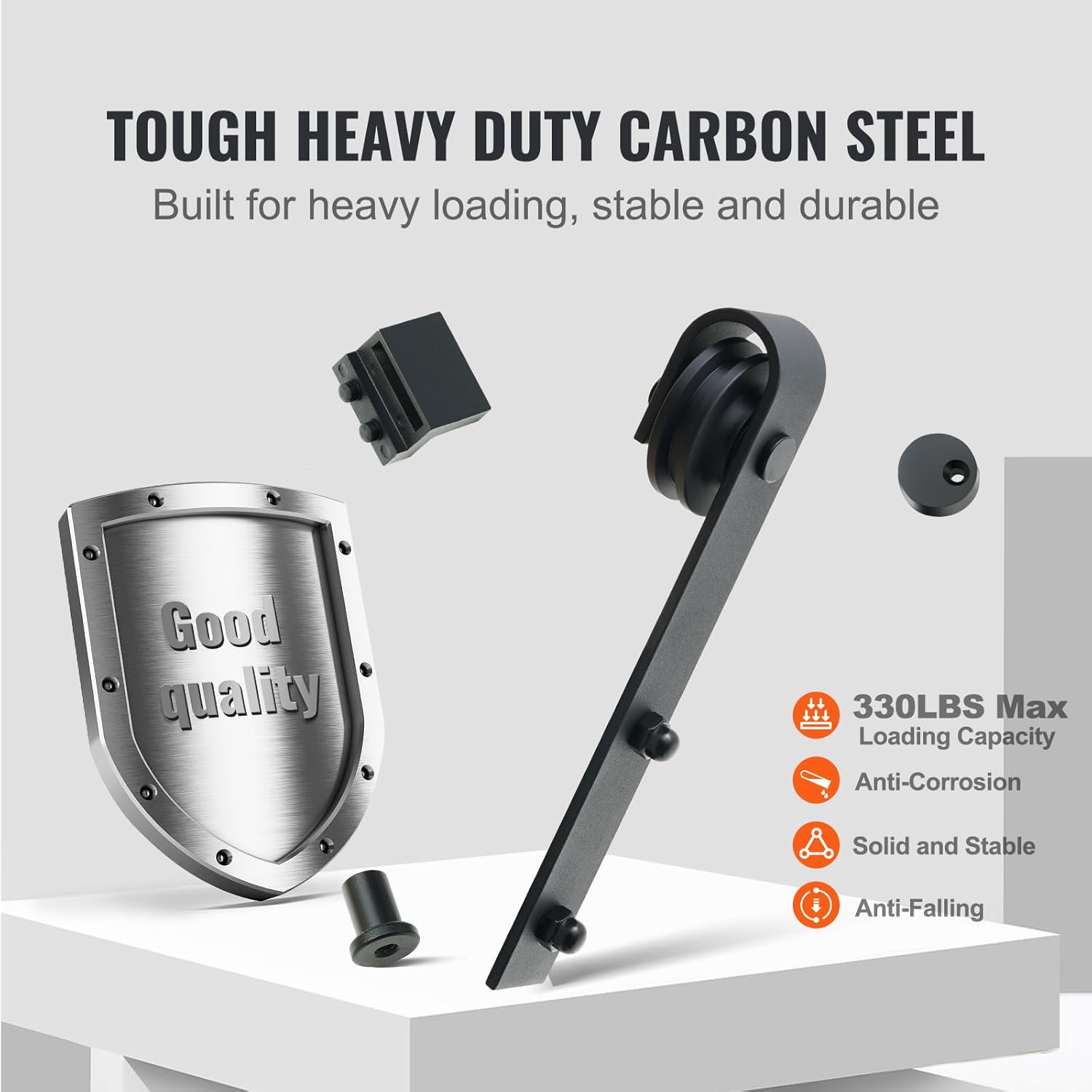

Image: Various components of the VEVOR barn door hardware, including a J-shape hanger and track piece, highlighting the robust carbon steel construction. This image emphasizes the durability and quality of the materials used.
- Install Anti-Jump Pads and Door Stops:
- Attach the anti-jump pads to the top edge of the door, near the hangers. These prevent the door from lifting off the track.
- Slide the door stops onto the track from each end. These will prevent the door from sliding too far. Do not tighten them fully yet.
- Põrandajuhiku paigaldamine:
- Once the door is hung (see next step), position the floor guide on the floor directly beneath the door.
- Mark the drilling points for the floor guide.
- Drill pilot holes and secure the floor guide to the floor. Ensure it allows the door to slide smoothly without wobbling.
- Riputage uks kinni:
- With assistance, carefully lift the door and hook the rollers of the hangers onto the track.
- Slide the door back and forth a few times to ensure smooth movement.
- Reguleerige ja kindlustage:
- Adjust the position of the door stops on the track to control the door's travel range. Tighten them securely with the hex key.
- Ensure all fasteners are tight and the door operates smoothly and safely.
Kasutusjuhised
The VEVOR Barn Door Hardware Kit is designed for smooth and quiet operation. To operate your barn door:
- Avamine ja sulgemine: Gently push or pull the door along the track. The high-density silent pulleys ensure minimal friction and noise.
- Sujuv liikumine: The double-layered construction of the pulleys contributes to an exceptionally smooth glide. Avoid forcing the door if it encounters resistance.
- Door Stops: The installed door stops will prevent the door from sliding off the track or hitting the wall too hard at the ends of its travel.

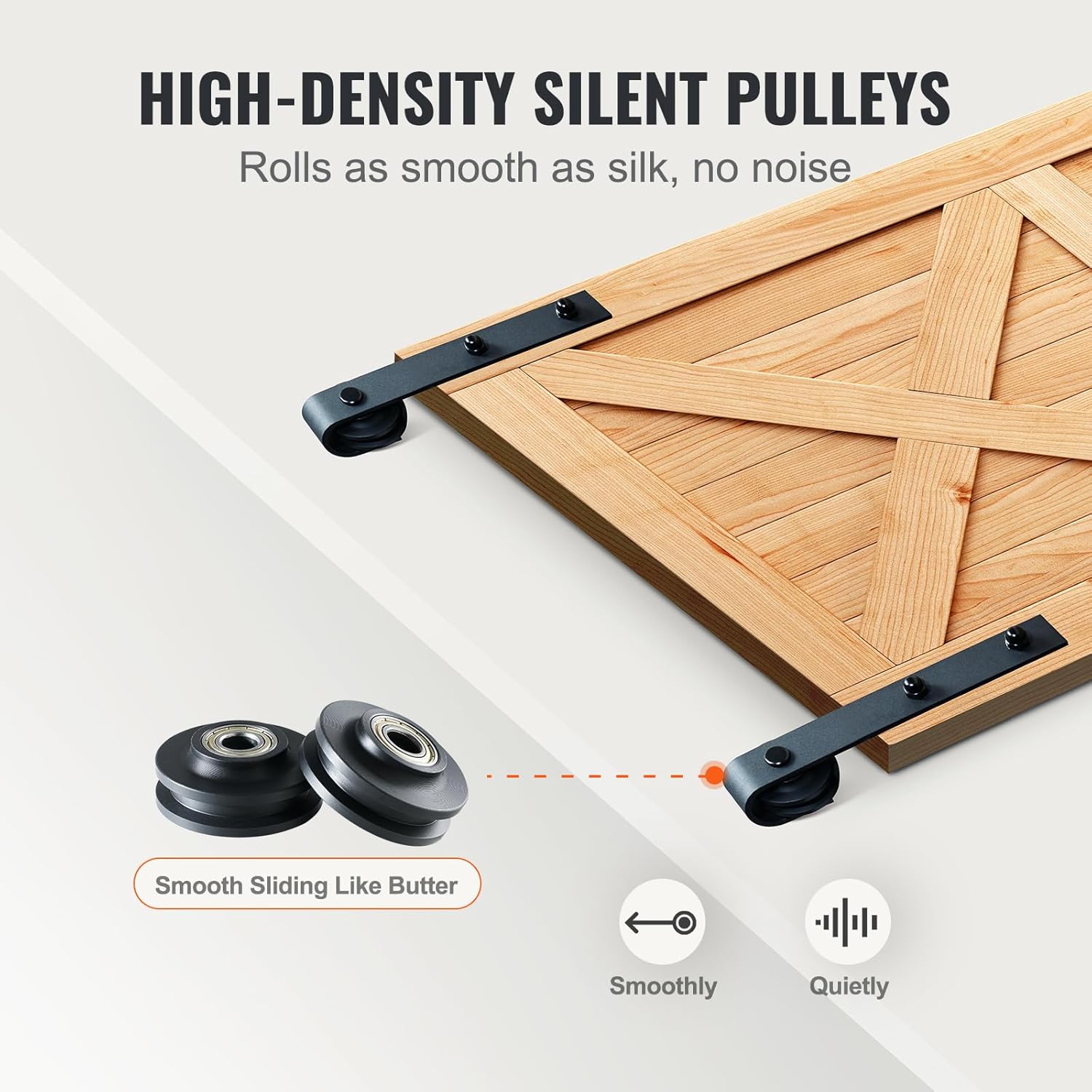

Pilt: Lähivõte view of the high-density silent pulleys, emphasizing their smooth sliding capability and quiet operation. The image highlights the design features that contribute to the system's effortless movement.
Hooldus
Regular maintenance will prolong the life and ensure the smooth operation of your barn door hardware:
- Puhastamine: Pühkige siini ja riputusseadmeid regulaarselt pehme lapiga.amp lapiga tolmu ja prahi eemaldamiseks. Vältige abrasiivseid puhastusvahendeid.
- Määrimine: If the rollers begin to squeak or feel stiff, apply a small amount of silicone-based lubricant to the roller bearings. Do not use oil-based lubricants as they can attract dust.
- Kinnitusvahendite kontroll: Annually, or if you notice any looseness, check all mounting screws and bolts on the track, hangers, and floor guide. Tighten any loose fasteners.
- Kontrollige kulumist: Periodically inspect the rollers and track for any signs of wear or damage. Replace any worn components immediately.
Veaotsing
Kui teil tekib probleeme lauda ukse riistvaraga, vaadake järgmisi levinud probleeme ja lahendusi:
- Uks avaneb raskelt:
- Check if the track is level. Adjust if necessary.
- Clean the track and rollers of any debris.
- Lubricate the rollers with a silicone spray.
- Ensure the floor guide is not too tight against the door.
- Door wobbles or swings out:
- Ensure the floor guide is properly installed and adjusted to keep the door stable.
- Check if the anti-jump pads are correctly installed on top of the door.
- Valju müra töö ajal:
- Clean and lubricate the rollers.
- Check for any loose components that might be rattling. Tighten all fasteners.
- Door stops are not holding position:
- Ensure the door stops are tightened securely with the hex key.
Garantii ja tugi
VEVORi tooted on loodud vastupidavust ja jõudlust silmas pidades. Täpsema garantiiteabe saamiseks vaadake ostuga kaasasolevat garantiikaarti või külastage ametlikku VEVORi veebisaiti. website. If you require technical assistance, have questions about installation, or need to report a missing/damaged part, please contact VEVOR customer support through their official channels. Always provide your model number (004-2.44M-D) when seeking support.
