1. Sissejuhatus
The Meliconi HP 50 Plus headphones are designed to provide a comfortable and high-quality audio experience for your television and other analog audio sources. With a generous 5-meter cable and a 3.5mm jack, these headphones allow you to enjoy your favorite programs from a comfortable distance. The ergonomic design ensures a snug fit, and the in-line volume control offers convenient audio adjustment.
Image 1.1: Meliconi HP 50 Plus Wired TV Headphones. These over-ear headphones feature a long cable for TV viewing.
2. Pakendi sisu
Palun kontrollige, kas pakendis on kõik esemed olemas:
- Meliconi HP 50 Plus Wired TV Headphones
- 5-meter audio cable with 3.5mm jack (integrated)
- 6.3mm Male to 3.5mm Female adapter
- Kasutusjuhend (see dokument)
Image 2.1: The Meliconi HP 50 Plus headphones shown in their retail packaging, indicating the included items.

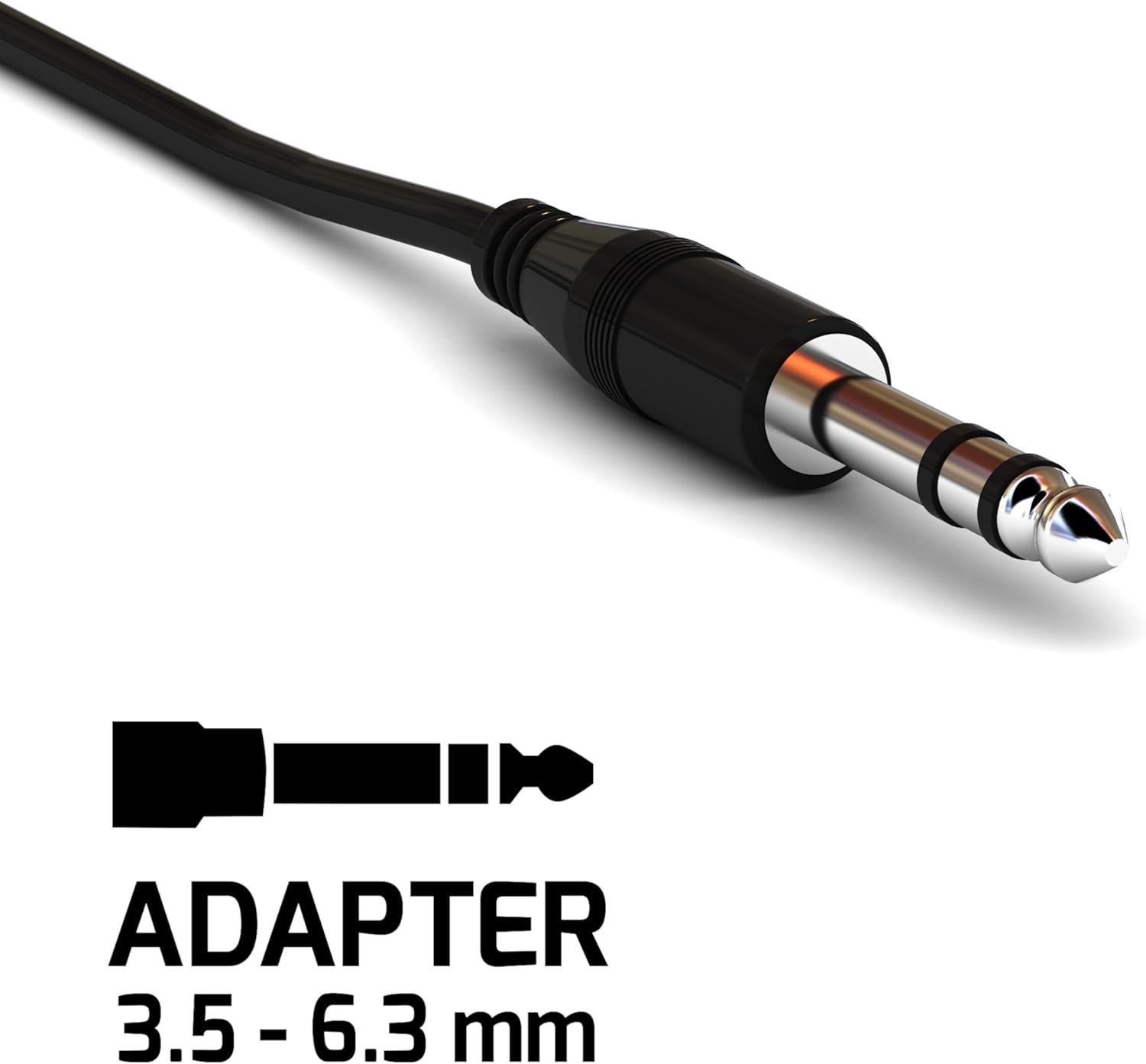

Image 2.2: Close-up of the included 6.3mm Male to 3.5mm Female audio adapter, used for compatibility with various audio ports.
3. Toote omadused
- Funktsionaalne disain: Wired headphones with a 5-meter audio cable (3.5mm jack), ideal for TV use.
- Kiirühendus: Easily connects to TVs and other analog audio sources.
- Ergonoomiline mugavus: Ergonomically designed earcups adapt to the ear's shape for comfortable wear.
- Laiendatud katvus: The 5-meter cable allows comfortable listening from a sofa or bed.
- Sisseehitatud helitugevuse regulaator: Convenient volume adjustment directly on the cable.
- Kvaliteetne heli: Equipped with high-quality audio speakers for clear sound.
- Reguleeritav peapael: Numbered notches for optimal adjustment of the headband extension.
- Kaasaegne esteetika: Features a sleek all-black design.
Image 3.1: Detail showing the adjustable arc of the headphones, allowing users to customize the fit for comfort.
Image 3.2: An icon representing the ergonomic design of the headphones, emphasizing user comfort.
4. Seadistamine
- Heliväljundi tuvastamine: Locate the audio output port on your television or other audio source. This is typically a 3.5mm headphone jack.
- Ühendage kõrvaklapid: Insert the 3.5mm jack of the Meliconi HP 50 Plus headphones directly into the 3.5mm audio output port.
- Use Adapter (if necessary): If your audio source has a larger 6.3mm audio output port, attach the included 6.3mm Male to 3.5mm Female adapter to the headphone's 3.5mm jack, then insert the adapter into the 6.3mm port.
- Reguleerige peapaela: Place the headphones on your head and adjust the headband using the numbered notches until you achieve a comfortable and secure fit.
Image 4.1: The Meliconi HP 50 Plus headphones in use, connected to a television, demonstrating their intended application.
5. Kasutusjuhised
- Sisselülitatud heliallikas: Ensure your television or audio device is powered on and playing audio.
- Helitugevuse reguleerimine: Use the in-line volume control located on the headphone cable to adjust the audio level to your preference. Turn the dial up to increase volume and down to decrease it.
- Mugavuse reguleerimine: If needed, re-adjust the headband and earcup position for optimal comfort during extended listening sessions.
6. Hooldus
- Puhastamine: Kõrvaklappide pühkimiseks kasutage pehmet ja kuiva lappi. Kõrvaklappide puhul kasutage kergelt kuiva lappi.amp Võib kasutada lappi, aga veenduge, et kõlarivõredesse ei satuks niiskust. Ärge kasutage tugevaid kemikaale ega abrasiivseid puhastusvahendeid.
- Kaabli hooldus: Avoid sharp bends or excessive pulling on the cable. Store the headphones in a way that prevents the cable from tangling or being crushed.
- Hoiustamine: When not in use, store the headphones in a clean, dry place away from direct sunlight and extreme temperatures.
- Adapteri hooldus: Keep the 6.3mm adapter clean and free from dust. Store it safely to prevent loss.
7. Veaotsing
| Probleem | Võimalik põhjus | Lahendus |
|---|---|---|
| Kõrvaklappidest ei kostu heli. |
|
|
| Heli on moonutatud või ebaselge. |
|
|
| Kõrvaklapid on ebamugavad. |
|
|
8. Tehnilised andmed
| Funktsioon | Detail |
|---|---|
| Kaubamärk | Meliconi |
| Mudeli nimi | HP 50 plus |
| Mudeli number | 497312 |
| Ühenduvustehnoloogia | Juhtmega |
| Kõrvaklappide pesa | 3.5 mm tungraud |
| Kaabli pikkus | 5 meetrit |
| Kõrvade paigutus | Over-Ear (Extra-auriculaire) |
| Vormitegur | Supra-Aural |
| Takistus | 32 oomi |
| Tundlikkus | 103 dB |
| Sagedusvahemik | 20 Hz–20 000 Hz |
| Mürakontroll | Heliisolatsioon |
| Eriomadused | Adjustable Headband, In-line Volume Control |
| Ühilduvad seadmed | Televisioon |
| Materjal | Plastikust |
| Värv | Must |
9. Garantii ja tugi
Meliconi products are designed for quality and reliability. For information regarding warranty coverage, please refer to the warranty card included with your purchase or visit the official Meliconi websaidile.
For technical support or further assistance, please contact Meliconi customer service through their official channels.
- Ametlik Websait: www.meliconi.com (Palun kontrollige oma piirkondlikku websait)
