Globe Electric Williams 51802 1-Light Wall Sconce Instruction Manual

1. Sissejuhatus

Tänan ostu eestasing the Globe Electric Williams 51802 1-Light Wall Sconce. This fixture is designed for indoor use, offering a blend of rustic industrial and mid-century modern aesthetics with its matte black finish and dark faux wood accents. This manual provides essential information for the safe and proper installation, operation, and maintenance of your new wall sconce. Please read all instructions carefully before beginning installation and retain this manual for future reference.

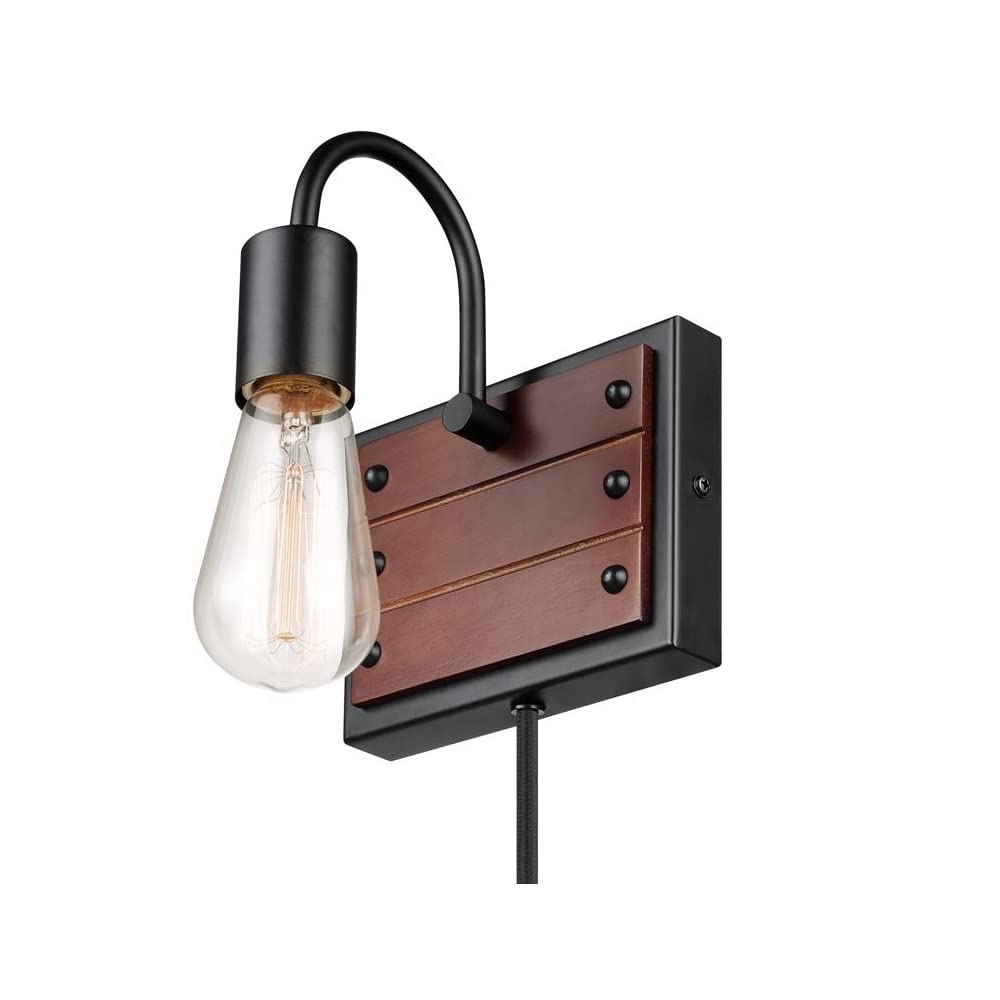

Image 1.1: The Globe Electric Williams 51802 1-Light Matte Black Wall Sconce. This image displays the overall design of the fixture, featuring a matte black finish and a dark faux wood accent, suitable for various indoor settings.

2. Ohutusalane teave

HOIATUS: Risk of electric shock. Turn off power at the circuit breaker or fuse box before installation or servicing. Improper installation can result in electric shock or fire.

• Read all instructions carefully before installing.
• Konsulteerige kvalifitseeritud elektrikuga, kui te pole paigaldusprotsessis kindel.
• Veenduge, et kõik elektriühendused vastavad kohalikele eeskirjadele ja määrustele.
• Ärge ületage maksimaalset võimsusttage specified for this fixture (60W).
• Use only the recommended bulb type (A19, CFL/Incandescent/LED).
• Ärge ühendage seda seadet maandamata elektrisüsteemiga.
• Handle the fixture with care to avoid damage.
• Keep flammable materials away from the light bulb when in operation.

3. Pakendi sisu

Enne paigaldamise alustamist veenduge, et kõik komponendid on olemas. Kui mõni osa puudub või on kahjustatud, ärge proovige seadet kokku panna ega paigaldada. Abi saamiseks võtke ühendust klienditeenindusega.

• 1 x Williams 1-Light Wall Sconce Fixture
• 1 x Mounting Hardware Kit (includes mounting plate, screws, wire nuts)
• 1 x kasutusjuhend

4. Vajalikud tööriistad (ei kuulu komplekti)

Paigaldamiseks on tavaliselt vaja järgmisi tööriistu:

• Phillipsi kruvikeeraja
• Kruvikeeraja Flathead
• Traadi eemaldajad
• Elektriline lint
• Tangid
• Kaitseprillid

5. Paigaldamine

This fixture can be installed as either a hardwired unit or a plug-in unit. Follow the appropriate steps below.

5.1 Juhtmega paigaldus

1. Lülitage toide välja: Leidke kaitselüliti või kaitsmekarp ja lülitage välja ühenduskarbi toide, kuhu paigaldate seadme.
2. Kinnitusplaadi ettevalmistamine: Attach the mounting plate to the junction box using the screws provided in the hardware kit. Ensure the plate is securely fastened.
3. Tehke elektriühendused:
   • Ühendage must juhe kinnitusdetailist kuni must (kuum) juhe ühenduskarbist traatmutri abil.
   • Ühendage valge juhe kinnitusdetailist kuni valge (neutraalne) juhe ühenduskarbist juhtmemutri abil.
   • Ühendage maapinnale juhe (paljas vask või roheline) kinnitusdetailist maapinnale wire from the junction box (or to the green ground screw on the mounting plate) using a wire nut.
   • Ensure all connections are secure and no bare wire is exposed. Wrap connections with electrical tape if necessary.
4. Kinnitusdetail: Carefully tuck all wires into the junction box. Align the fixture base with the mounting plate and secure it with the decorative nuts or screws provided.
5. Paigaldage pirn: Screw in one A19 bulb (not included) into the socket. Do not exceed 60 watts.
6. Toite taastamine: Lülitage toide kaitselülitist uuesti sisse.

Image 5.1: Typical wiring diagram for a hardwired wall sconce. This diagram illustrates the connection of black (hot), white (neutral), and ground wires from the fixture to the corresponding wires in the electrical junction box.

5.2 Pistikprogrammi installimine

1. Valmistage ette võistluskalendrit: If the fixture is designed for both hardwire and plug-in, ensure the plug-in cord is properly attached and secured according to the manufacturer's instructions (if not pre-assembled).
2. Kinnitusdetail: Secure the fixture to the wall using the provided mounting hardware. Ensure it is firmly attached to a wall stud or using appropriate wall anchors.
3. Paigaldage pirn: Screw in one A19 bulb (not included) into the socket. Do not exceed 60 watts.
4. Ühendage: Insert the plug into a standard wall outlet.

6. Operatsioon

Once installed and power is restored, the wall sconce can be operated. If hardwired, control the light using the wall switch connected to the circuit. If installed as a plug-in unit, the fixture may feature an integrated push-button switch on the cord or base for convenient on/off control.

• Lambi tüüp: Use one A19 bulb.
• Wattage: Maximum 60 Watts.
• Valgusallikas: Compatible with CFL, Incandescent, or LED bulbs.

7. Hooldus

Regular maintenance will help preserve the appearance and functionality of your wall sconce.

• Puhastamine: Enne puhastamist lülitage seade välja ja laske sellel jahtuda. Pühkige seadet pehme kuiva lapiga. Ärge kasutage abrasiivseid puhastusvahendeid, lahusteid ega poleerimisvahendeid, kuna need võivad viimistlust kahjustada.
• Pirni vahetus: Ensure the power is off and the bulb has cooled completely before attempting to replace it. Unscrew the old bulb and screw in a new A19 bulb, ensuring it does not exceed 60 watts.
• Ülevaatus: Kontrollige regulaarselt kõiki ühendusi ja kinnitusvahendeid, et need oleksid kindlalt paigas.

8. Veaotsing

Kui teie seinavalgusti ei tööta korralikult, vaadake järgmisi levinud probleeme ja lahendusi:

If the problem persists after attempting these solutions, contact a qualified electrician or Globe Electric customer support.

9. Tehnilised andmed

10. Garantii ja tugi

This Globe Electric Williams 51802 Wall Sconce comes with a 1-aastane piiratud garantii from the date of purchase, covering defects in materials and workmanship. This warranty does not cover damage caused by improper installation, accident, misuse, abuse, or normal wear and tear.

For warranty claims, technical support, or missing parts, please contact Globe Electric customer service. You can find contact information and additional resources by visiting the official Globe Electric websaidil või nende Amazoni poes:

Visit the Globe Electric Store on Amazon

Toega ühenduse võtmisel hoidke käepärast oma mudelinumber (51802) ja ostutõend.
