NFC/Amiibo Support
The controller includes NFC functionality, allowing you to use Amiibo figures for in-game content and features on compatible Nintendo Switch games.
Sissejuhatus
Welcome to your new PXN Wireless Controller. This manual provides detailed instructions for setting up, operating, and maintaining your controller. Enjoy an enhanced gaming experience on your Nintendo Switch and PC.
Põhifunktsioonid
Six-Axis Gyroscope
Experience precise motion control with the built-in 6-axis gyro chip, providing accurate aiming and immersive gameplay.
Asymmetric Dual Vibration Motors
Enjoy adjustable vibration feedback with dual motors, enhancing immersion through various in-game effects like impacts, explosions, and environmental cues. Vibration intensity can be adjusted.
Turbo funktsioon
The Turbo function allows for rapid, repeated button presses, giving you an advantage in games requiring quick inputs.
Mitme platvormi ühilduvus
This controller is compatible with both Nintendo Switch and PC, offering versatile gaming options.
Pikaajaline aku tööiga
Equipped with a high-performance 550 mAh lithium battery, the controller offers approximately 20 hours of continuous use after a 2-hour charge. It also features a smart sleep/wake-up function to conserve power.
Seadistamine ja ühendus
Nintendo Switchiga sidumine
- Esialgne ühendus:
- On your Nintendo Switch, navigate to the HOME Menu, then select Kontrollerid > Muuda käepidet/järjekorda.
- On the PXN controller, press and hold the T nupp ja Kodu button simultaneously until the LED indicators begin to flash rapidly.
- Once paired, the LED indicators will stop flashing and remain solid on the assigned player number.
- Waking the Switch:
- Vajutage nuppu Kodu button on the controller to remotely wake up your Nintendo Switch console from sleep mode.
Arvutiga ühendamine
The controller can be connected to a PC via a Type-C USB cable for a wired connection or wirelessly via Bluetooth. For wireless connection, ensure your PC has Bluetooth capabilities and follow standard Bluetooth pairing procedures in your operating system settings.
Kasutusjuhised

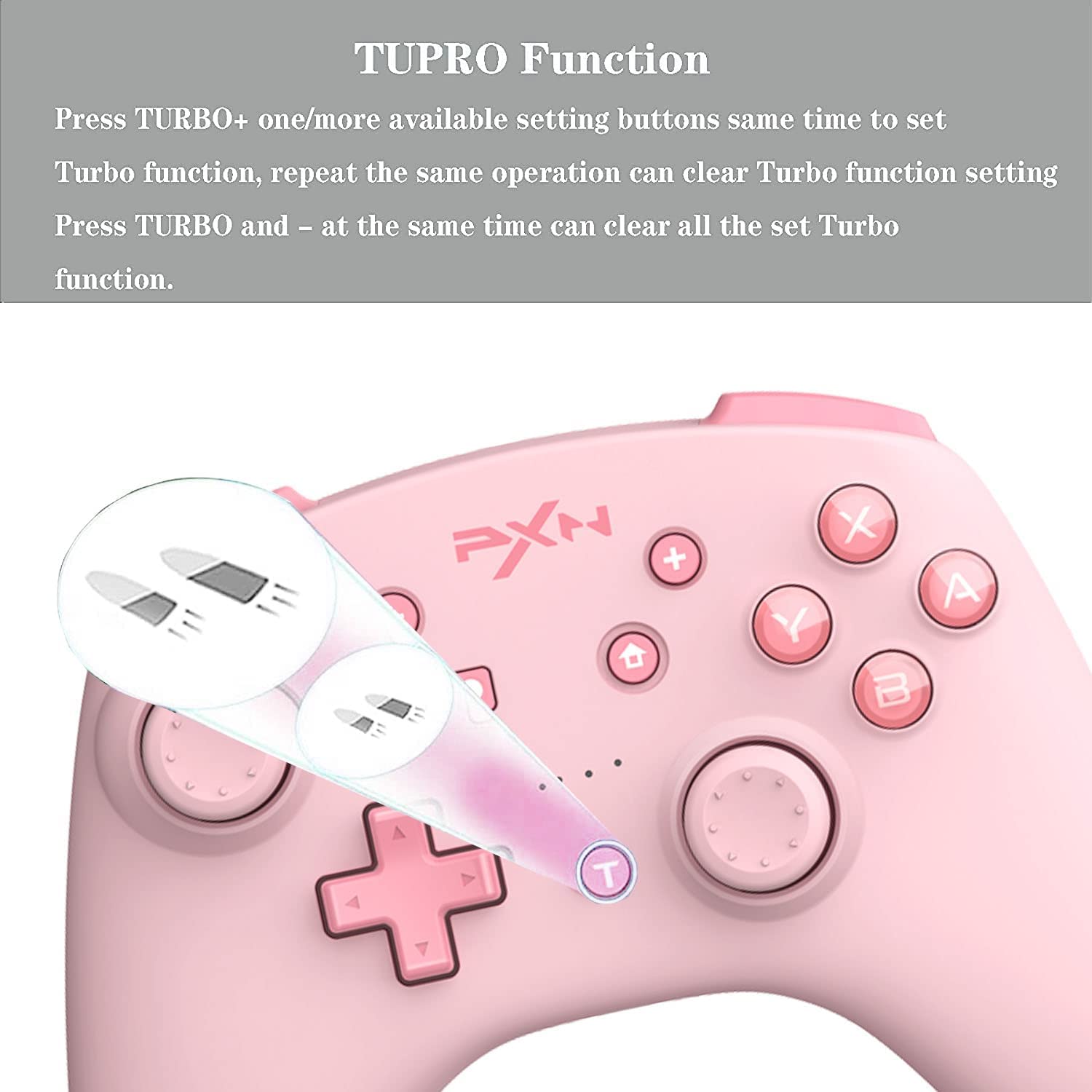

Turbo funktsiooni kasutamine
- Turbo seadistamine: Vajutage nuppu T button and one or more desired action buttons (A, B, X, Y, L, R, ZL, ZR) simultaneously to activate the Turbo function for those buttons.
- Clearing Turbo for a specific button: Repeat the same operation (press T + action button) to deactivate Turbo for that specific button.
- Clearing all Turbo settings: Vajutage nuppu T nupp ja - (minus) button simultaneously to clear all active Turbo functions.
NFC Function (Amiibo)
To use Amiibo, simply place your Amiibo figure on the NFC detection area of the controller (typically the center top part) during compatible game sequences. Ensure NFC is enabled in your game settings if required.
Vibratsiooni intensiivsuse reguleerimine
The controller offers three levels of vibration intensity. Specific button combinations for adjustment are not detailed in the provided information; please refer to your game's settings or the controller's official product page for potential software-based adjustments.
Ekraanipildi funktsioon
Press the dedicated Screenshot button (usually indicated by a camera icon, located near the Home button) to capture screenshots during gameplay on your Nintendo Switch.
Gyro Axis Control
In games that support motion controls, the built-in 6-axis gyroscope will automatically provide responsive control based on the controller's physical movement and orientation.
Hooldus
- Puhastamine: Kontrolleri puhastamiseks kasutage pehmet ja kuiva lappi. Vältige tugevate kemikaalide, lahustite või abrasiivsete materjalide kasutamist, kuna need võivad pinda ja sisemisi komponente kahjustada.
- Hoiustamine: Hoidke kontrollerit jahedas ja kuivas kohas, eemal otsesest päikesevalgusest, äärmuslikest temperatuuridest ja kõrgest õhuniiskusest.
- Aku hooldus: To prolong battery life, avoid fully discharging the controller frequently. Charge it regularly, even if not in constant use, to maintain battery health. Do not attempt to replace the battery yourself.
Veaotsing
- Kontroller ei ühendu/paaristu:
- Veenduge, et kontroller oleks piisavalt laetud.
- Verify the Nintendo Switch is in the correct pairing mode ("Change Grip/Order").
- Proovige kontrollerit lähtestada, vajutades nuppu T nupp ja Kodu button simultaneously until the LEDs flash, then attempt pairing again.
- If issues persist, try clearing all setup functions by pressing T ja - simultaneously, then re-pair.
- Joystick Drift/Unresponsiveness:
- This can sometimes be resolved by recalibrating the joysticks through the Nintendo Switch system settings (System Settings > Controllers and Sensors > Calibrate Control Sticks).
- Ensure the controller's firmware is up to date by checking the official PXN website for any available updates and instructions.
- Nupud ei reageeri:
- Veenduge, et kontroller oleks täielikult laetud.
- Clean around the buttons to ensure no debris is interfering with their movement.
- If a specific button feels soft or consistently unresponsive, it may indicate wear. If the product is within its warranty period, contact customer support.
Tehnilised andmed
| Funktsioon | Detail |
|---|---|
| Ühilduvad seadmed | Nintendo Switch, PC, Windows |
| Kontrolleri tüüp | Mängupult |
| Ühenduvustehnoloogia | Wireless (Bluetooth), USB Type-C |
| Lisafunktsioonid | Ergonomic design, NFC, Turbo, Gyro Axis, Dual Vibration |
| Riistvara platvorm | Nintendo Switch |
| Toiteallikas | Akutoitel |
| Aku mahutavus | 550 mAh liitiumaku |
| Laadimisaeg | u. 2 tundi |
| Pidev kasutusaeg | u. 20 tundi |
| Kauba kaal | 0.38 kilogrammi |
| Kaubamärgi nimi | PXN |
| Tootja | PXN |
| Mudeli number | B09SW4ZFPQ |
| Värv | Roosa |
Garantii ja tugi
For detailed warranty information, technical support, and customer service, please refer to the official PXN website or contact the retailer from whom you purchased the product. It is recommended to keep your proof of purchase for any warranty claims.
