Beelink GK35 Mini PC kasutusjuhend

1. Toote lõppview

The Beelink GK35 Mini PC is a compact and efficient computer designed for various applications, from office work to home entertainment. Its small form factor allows for a tidy desktop setup, while offering robust performance for daily tasks.

Põhifunktsioonide hulka kuuluvad:

• Kompaktne disain: Ultra-slim and lightweight (0.56 lbs) with dimensions of 4.53 x 4.02 x 1.69 inches, making it highly portable.
• Protsessor: Equipped with an Intel Celeron J3455 Processor (1.50GHz up to 2.30GHz).
• Mälu ja salvestusruum: 8GB DDR3L RAM and 128GB SSD, with support for up to 2TB 2.5-inch SATA HDD/M.2 SATA SSD 2280 expansion.
• Graphics & Display: Intel HD Graphics 500 supporting 4K HD (3840 x 2160) content and dual HDMI output for connecting two monitors.
• Ühenduvus: Features 802.11 b/g/n/ac WiFi 5, Bluetooth 4.0, and Gigabit Ethernet for reliable network connections.
• Tõhus jahutus: Integrated quiet large fan and heat sink for effective heat dissipation and silent operation.

Pakendi sisu

Veenduge, et pakendis on kõik esemed olemas:

• Beelink GK35 miniarvuti
• Kasutusjuhend
• User Help Card
• Power Adapter (US / EU / UK optional)
• HDMI kaabel
• VESA kinnitus (monitori kinnitamiseks)

2. Seadistusjuhend

2.1 Miniarvuti ühendamine

1. Ekraaniga ühenduse loomine: Use an HDMI cable to connect the Mini PC to your monitor or TV. The GK35 supports dual HDMI output for two displays.
2. Ühendage välisseadmed: Ühendage USB-klaviatuur ja -hiir saadaolevatesse USB 3.0 portidesse.
3. Võrguühendus: Juhtmega ühenduse loomiseks ühendage Etherneti kaabel LAN-porti. Traadita ühenduse loomiseks veenduge esmase seadistamise ajal, et teie WiFi-võrk on saadaval.
4. Toide sisse: Connect the power adapter to the DC port on the Mini PC, then plug the adapter into a power outlet. Press the power button on the front of the device.

2.2 Esialgne käivitamine ja operatsioonisüsteemi seadistamine

Upon first boot, the Mini PC will guide you through the operating system setup process. Follow the on-screen instructions to configure language, region, network, and user accounts.

3. Kasutusjuhised

3.1 Põhitoimingud

• Toide sisse/välja: Press the power button to turn the device on. To turn off, use the operating system's shutdown function or press and hold the power button for a few seconds for a forced shutdown (not recommended for regular use).
• Taaskäivita: Kasutage operatsioonisüsteemi taaskäivitusfunktsiooni.
• Puhkerežiim: Use the operating system's sleep function to put the device into a low-power state.

3.2 Kahe ekraani seadistamine

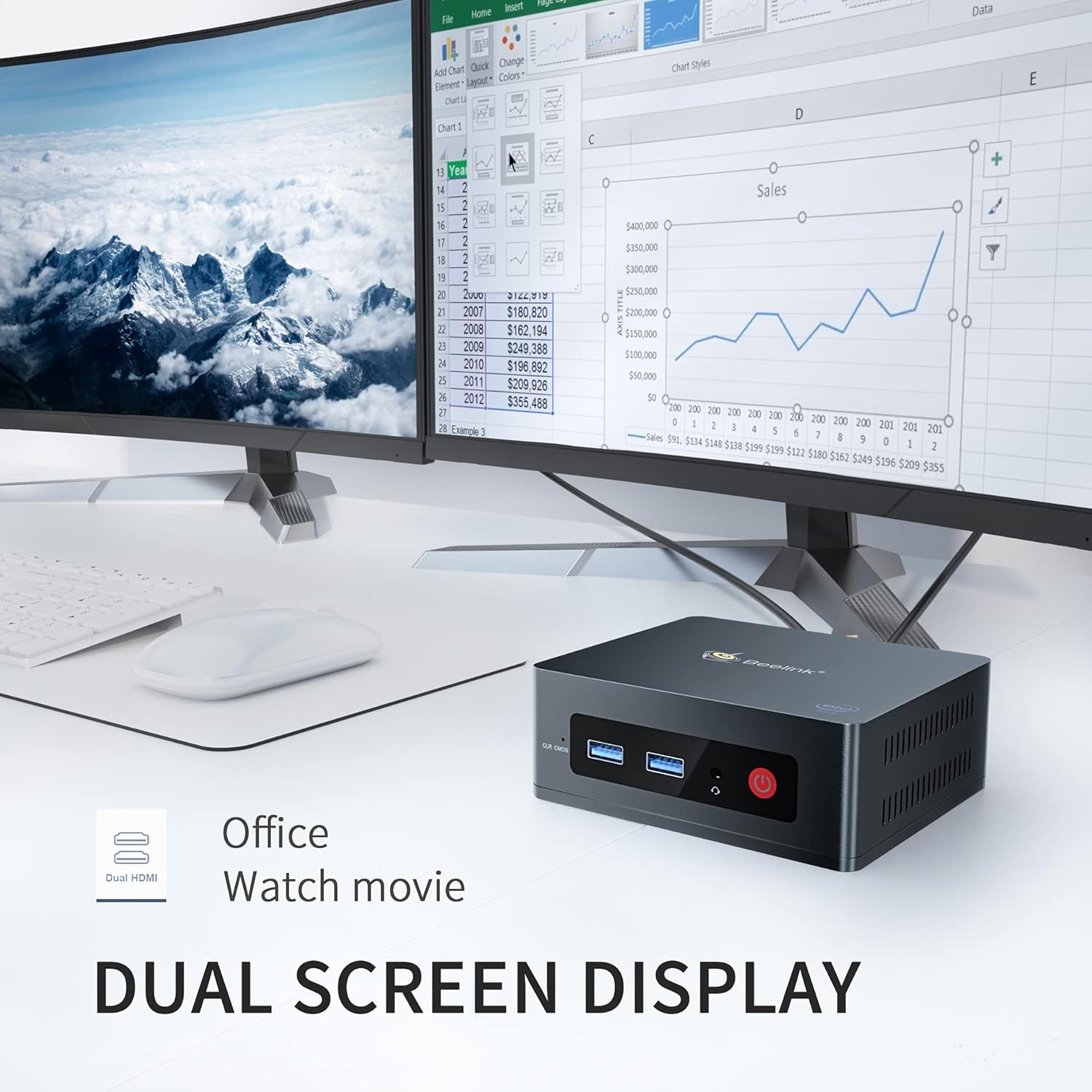

The Beelink GK35 supports connecting two monitors simultaneously via its dual HDMI ports. This allows for extended desktop space, improving productivity for tasks like office work or providing an immersive experience for media consumption.

3.3 4K Display Output

The Mini PC supports 4K ultra-high-definition output (3840 x 2160 pixels), allowing for clear and detailed visuals on compatible 4K displays. This is ideal for high-resolution video playback, photo editing, and general media consumption.

4. Hooldus

4.1 Soojuse hajumine

The Beelink GK35 is designed with an efficient cooling system, including a quiet large fan and heat sink, to maintain optimal operating temperatures. To ensure proper heat dissipation:

• Ensure the ventilation holes on the sides of the Mini PC are not obstructed.
• Place the device on a flat, stable surface with adequate airflow.
• Avoid placing the Mini PC in enclosed spaces or near heat sources.

4.2 Puhastamine

Regularly clean the exterior of the Mini PC with a soft, dry cloth. Use compressed air to gently clear dust from the ventilation holes.

4.3 Salvestusruumi laiendamine

The Beelink GK35 supports storage expansion up to 2TB via a 2.5-inch SATA HDD or M.2 SATA SSD 2280. Refer to the detailed instructions in the included User Help Card for installation procedures.

5. Veaotsing

If you encounter issues with your Beelink GK35 Mini PC, please refer to the following common troubleshooting steps:

• Toide puudub:
  • Veenduge, et toiteadapter on kindlalt ühendatud nii Mini PC kui ka töötava pistikupesaga.
  • Veenduge, et pistikupesa töötab, ühendades sellega teise seadme.
• Kuvarit pole:
  • Check that the HDMI cable is firmly connected to both the Mini PC and the monitor.
  • Veenduge, et monitor on sisse lülitatud ja õigele sisendallikale seatud (HDMI 1, HDMI 2 jne).
  • Võimalusel proovi teist HDMI-kaablit või monitori.
• Aeglane jõudlus:
  • Sulgege taustal töötavad mittevajalikud rakendused.
  • Check for available operating system updates and install them.
  • Ülekuumenemise vältimiseks tagage piisav ventilatsioon.
  • Consider upgrading storage to a faster SSD if you are using a slower drive.
• Võrguühenduse probleemid:
  • Juhtmega ühenduste korral kontrollige Etherneti kaabli ja ruuteri olekut.
  • WiFi puhul veenduge, et WiFi-adapter oleks lubatud ja olete õige võrguga õige parooliga ühendatud.
  • Taaskäivitage ruuter ja Mini PC.

6. Tehnilised andmed

7. Tehniline tugi ja garantii

Beelink provides technical support for the GK35 Mini PC. If you require assistance with features such as Auto Power On or Wake on LAN (WOL), please contact customer support. You may be asked to provide the barcode located at the bottom of the machine to receive specific tutorial files or assistance.

For further support, visit the official Beelink website or refer to the contact information provided in your User Help Card.

8. Tootevideo
