Taylor Digital Bodyweight Scale Model 5273837 Instruction Manual

Toode läbiview

This Taylor digital scale features a mixed material design with modern gray glass combined with brushed stainless steel. It includes a curved 12.4" x 12.4" durable, tempered glass platform. The 3.5" x 1.5" display with white backlight ensures easy readability in low light. It has an extra high 440 lb capacity and reads in 0.2 lb increments. The Step-on Technology allows for immediate readings without tapping. Three AAA batteries are included, and it comes with a 5-year limited warranty.

Image: Taylor Digital Bodyweight Scale displaying a weight of 126.4 lbs. The scale features a gray glass platform with a brushed stainless steel accent at the top, where the digital display is located.

Seadistamine ja esmakordne kasutamine

Aku paigaldamine

Your scale requires 3 AAA batteries (included). Open the battery compartment on the underside of the scale and insert the batteries, ensuring correct polarity (+/-). Close the compartment securely.

Paigutus

For accurate readings, place the scale on a hard, flat surface. Avoid carpets or uneven flooring, as this can affect accuracy.

Esialgne kalibreerimine

Before first use or after moving the scale, calibration is recommended:

1. Step on the scale briefly, applying enough pressure to turn the display on.
2. Remove your foot. The digital readout should show dashes or zeros.
3. The scale will automatically turn off. It is now calibrated and ready for use.

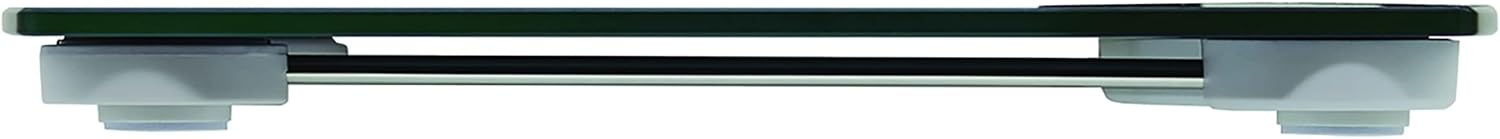

Pilt: Alumine külg view of the Taylor Digital Bodyweight Scale, highlighting the battery compartment and the four anti-skid foot pads.

Kasutusjuhised

Kaalu mõõtmine

This scale features "Step-on Technology" for convenience:

1. Veenduge, et kaal oleks kõval ja tasasel pinnal.
2. Gently step onto the center of the scale platform. The scale will automatically turn on and begin measuring.
3. Stand still until your weight is displayed and locks on the screen.
4. Step off the scale. The display will remain on for a few seconds before automatically turning off.

Changing Weight Units (Pounds/Kilograms)

The unit switch is located on the underside of the scale. To change between pounds (lb) and kilograms (kg), simply slide the switch to your desired unit.

Hooldus

Puhastamine

Kaalu puhastamiseks pühkige pindaamp cloth and mild detergent. Do not use abrasive cleaners or immerse the scale in water. Keep the scale dry.

Patarei vahetus

When the display shows "Lo" or becomes dim, it is time to replace the batteries. Open the battery compartment on the underside of the scale, remove the old batteries, and insert new 3 AAA batteries, observing correct polarity. Dispose of old batteries responsibly.

Veaotsing

• Kuvatakse "Lo": Näitab patareide tühjenemist. Vahetage 3 AAA patareid välja.
• Kuvatakse tõrge "Err": Indicates an overload. The scale's maximum capacity is 440 lbs (200 kg). Remove weight immediately to prevent damage.
• Ebajärjekindlad näidud: Ensure the scale is on a hard, flat, and level surface. Recalibrate the scale by stepping on it briefly, then stepping off until it shows zeros, before taking a new measurement. Avoid moving the scale between measurements.
• Kuvarit pole: Kontrollige, kas patareid on õigesti paigaldatud ja pole tühjenenud.

Tehnilised andmed

Image: Diagram illustrating the dimensions of the Taylor Digital Bodyweight Scale, showing a 12.4" x 12.4" platform and a 3.5" x 1.5" display.

Garantii ja tugi

Garantii teave

This product includes a 5-year limited warranty. For specific warranty details and claims, please contact the seller directly or refer to the manufacturer’s official website. Warranty information may also be available on the manufacturer’s websaidile.

Klienditugi

For further assistance or inquiries, you may visit the official Taylor store on Amazon: Taylor Store.
