Sissejuhatus
See kasutusjuhend annab olulist teavet teie EVH 5150 Iconic Series 40-vatise 1x12-tollise lampkombo ohutuks ja tõhusaks kasutamiseks. AmpEnne seadme kasutamist lugege see kasutusjuhend hoolikalt läbi. amplifier to ensure proper setup, operation, and maintenance.
The EVH 5150 Iconic Series 40-watt 1x12-inch Tube Combo Amplifier delivers authentic EVH tube tone in a streamlined 1x12 combo format, designed for both stage ja stuudio kasutamine.
Pakendi sisu
Lahtipakkimisel veenduge, et kõik allpool loetletud esemed on olemas ja heas seisukorras:
- EVH 5150 Iconic Series 40W 1x12" Guitar Combo Amplifier (Ivory)
- 2x JJ 6L6 Power Tubes (pre-installed)
- 2-nupuline jalglüliti
- Toitekaabel
- Kasutusjuhend (see dokument)
Joonis 1: Esiosa view EVH 5150 Iconic Series 40-vatise 1x12-tollise lampkombost Ampelustaja. See pilt näitab amplifier's ivory finish, black grille cloth, and the prominent "5150" logo.
Seadistamine
- Paigutus: Asetage positsioon amplifier on a stable, level surface. Ensure adequate ventilation around the unit to prevent overheating. Avoid placing it near heat sources or in direct sunlight.
- Toiteühendus: Tagada amplifier's power switch is in the OFF position. Connect the supplied power cable to the ampseadme vahelduvvoolu sisendisse ja seejärel maandatud pistikupessa.
- Instrumendi ühendus: Ühendage oma kitarr või muu instrument amplifier's INPUT jack using a high-quality instrument cable.
- Jalglüliti ühendus: Connect the 2-button footswitch to the FOOTSWITCH jack on the amplifier's rear panel. This footswitch allows for remote channel switching and effects loop activation.
- Esialgne sisselülitamine: Before turning on, ensure all volume controls are set to their minimum position. Flip the POWER switch to ON, then wait a few moments before flipping the STANDBY switch to ON. This allows the tubes to warm up properly.
Kasutusjuhised
Esipaneeli juhtnupud
- SISEND: 1/4" jack for connecting your instrument.
- KANALI VALIK: Toggles between Channel 1 (Clean/Overdrive) and Channel 2 (Lead).
- CHANNEL 1 (Clean/Overdrive):
- GAIN 1: Adjusts the input gain for Channel 1.
- 1. köide: Controls the output volume for Channel 1.
- ÜLESÕIT: Engages an additional gain stage for Channel 1, transforming it from clean to an overdriven crunch.
- CHANNEL 2 (Lead):
- GAIN 2: Adjusts the input gain for Channel 2.
- 2. köide: Controls the output volume for Channel 2.
- EQ (Shared for both channels):
- LOW: Adjusts bass frequencies.
- MID: Adjusts midrange frequencies.
- KÕRGE: Adjusts treble frequencies.
- PÖÖRD: Controls the amount of digital reverb applied to both channels.
- Peamine maht: Overall output volume control for the entire ampelujõulisem.
- MÜRAVÄRAV: Reduces unwanted hum and hiss, especially at high gain settings. Adjust to taste.
- VÕIMSUSE VÄHENDAMINE: Allows selection of 1/4, 1/2, or full 40-watt output for varying volume needs without sacrificing tone.
Tagapaneeli ühendused
- EFEKTIDE TSÜKKEL (SAATMINE/TAGASIMINE): For connecting external effects pedals or processors.
- SPEAKER EMULATED OUTPUT: Provides a direct output with speaker cabinet simulation for recording or connecting to a PA system. This output features a 3.5mm jack.
- VÄLISKÕLAR: Jack for connecting an external speaker cabinet (ensure impedance matches).
- JALÜLITI: Input for the supplied 2-button footswitch.
Hooldus
- Puhastamine: Disconnect power before cleaning. Use a soft, dry cloth to wipe down the ampVältige abrasiivseid puhastusvahendeid või lahusteid.
- Toru hooldus: See amplifier uses vacuum tubes which have a finite lifespan. If you notice a decrease in performance, unusual noise, or loss of volume, the tubes may need replacement. Consult a qualified technician for tube replacement. Always allow tubes to cool down before moving the ampelujõulisem.
- Hoiustamine: Säilitage amplifier in a dry, temperature-controlled environment. If transporting, use appropriate protective covers or cases.
Veaotsing
| Probleem | Võimalik põhjus | Lahendus |
|---|---|---|
| Ei mingit heli |
|
|
| Liigne sumin või müra |
|
|
| Nõrk või moonutatud heli |
|
|
If the problem persists after attempting these solutions, please contact EVH customer support or a qualified service technician.
Tehnilised andmed

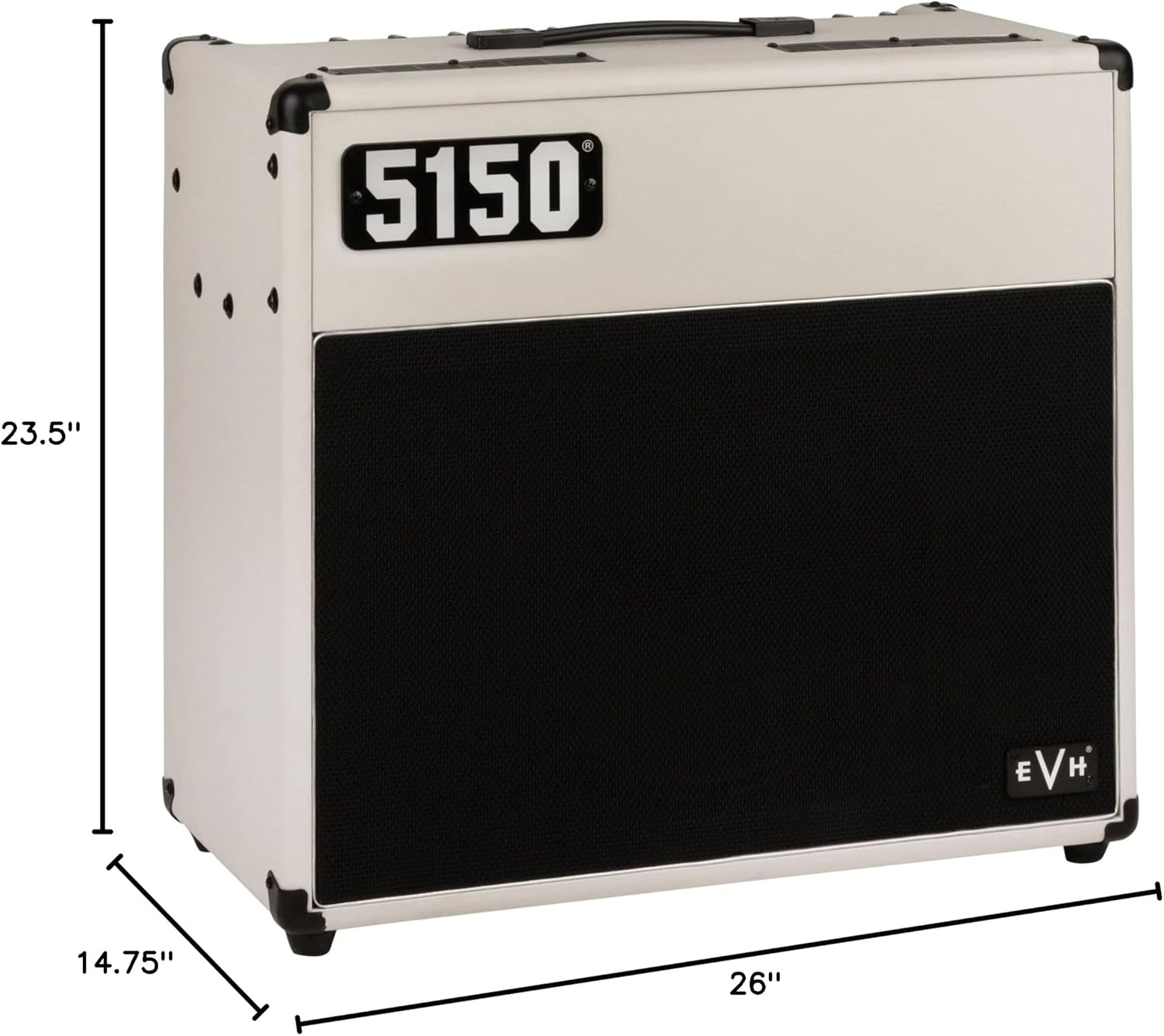

Figure 2: Dimensions of the EVH 5150 Iconic Series 40-watt 1x12-inch Tube Combo Amplifier, showing a depth of 14.75 inches, width of 26 inches, and height of 23.5 inches.
- Mudel: 2257100410
- Tüüp: Kombineeritud toru Ampelujõulisem
- Väljund vattage: 40 Watts (selectable to 1/4 or 1/2 power)
- Kõlar: 1 x 12 tolli
- Kanalid: 2 (Clean/Overdrive, Lead)
- Torud: 2x JJ 6L6 Power Tubes (pre-installed)
- Juhtelemendid: Gain 1, Volume 1, Overdrive (Ch1), Gain 2, Volume 2 (Ch2), Low, Mid, High (EQ), Reverb, Master Volume, Noise Gate, Power Reduction
- Ühenduvus: 1/4" Instrument Input, Effects Loop (Send/Return), Speaker Emulated Output (3.5mm Jack), External Speaker Output, Footswitch Input
- Värv: Elevandiluu
- Kauba kaal: 61.2 naela
- Toote mõõtmed: Ligikaudu 14.75 cm S x 26 cm L x 23.5 cm K
- Toiteallikas: Juhtmega elekter
Garantii ja tugi
This EVH 5150 Iconic Series 40-watt 1x12-inch Tube Combo Amplifier is covered by an EVH 1 Year Limited Warranty. Please refer to the warranty card included with your product for full terms and conditions.
For technical assistance, service, or warranty inquiries, please contact EVH customer support through their official webkohapeal või volitatud teeninduskeskustes.
