SIMREX X900 drooni kasutusjuhend

Sissejuhatus

Tänan ostu eestasing the SIMREX X900 Drone. This quadcopter features Optical Flow Positioning for stable flight, a 1080P HD camera for clear aerial photography and video recording, Altitude Hold for easy control, and Headless Mode for simplified navigation. Its foldable design makes it highly portable. Please read this manual thoroughly before operating the drone to ensure safe and optimal performance.

Figure 1: SIMREX X900 Drone with controller and smartphone.

This image displays the SIMREX X900 drone in its unfolded state, alongside its remote controller and a smartphone mounted on the controller, showing the live video feed from the drone's camera. The drone is red and black with four propellers.

Pakendi sisu

• SIMREX X900 RC Quadcopter
• Kaugjuhtimispult
• Rechargeable Drone Battery (1 included)
• USB laadimiskaabel
• Varupropellerid
• Kruvikeeraja
• Kasutusjuhend

Seadistusjuhend

1. Drooni lahtivoltimine

Ava ettevaatlikult drooni käed, kuni need lukustuvad oma kohale. Enne lendu veendu, et kõik neli kätt on täielikult välja sirutatud.

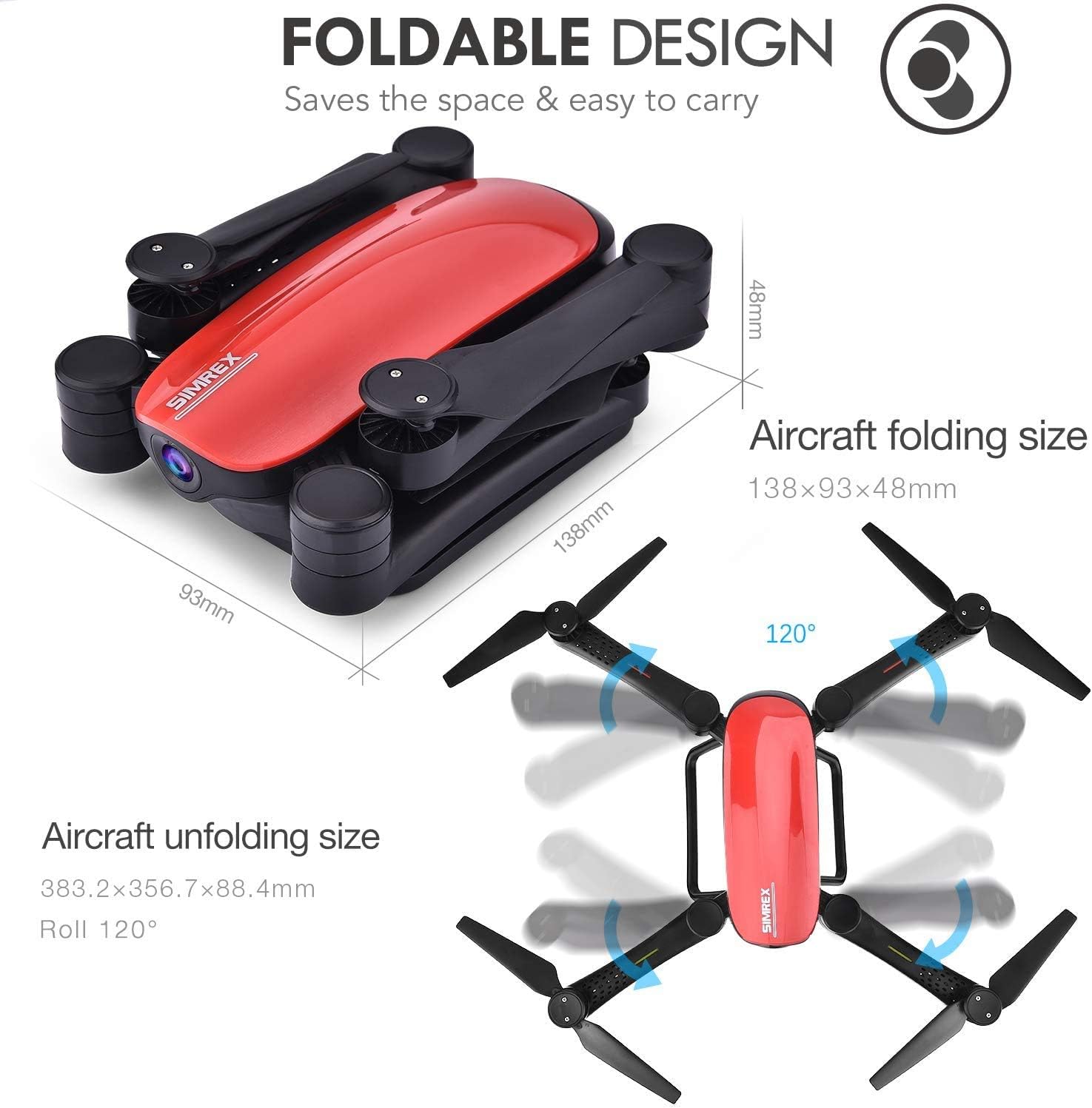

Figure 2: Foldable design and dimensions of the X900 drone.

This image illustrates the compact folded size (138x93x48mm) and the larger unfolded size (383.2x356.7x88.4mm) of the SIMREX X900 drone, highlighting its portability and ease of storage.

2. Aku paigaldamine ja laadimine

1. Insert the fully charged drone battery into the battery compartment on the rear of the drone until it clicks into place.
2. For charging, connect the USB charging cable to the drone battery and a USB power source (e.g., computer USB port, USB wall adapter). The charging indicator light will show charging status.
3. Install 3 x AAA batteries (not included) into the remote controller, observing correct polarity.

3. Propeller Check

Ensure all propellers are securely attached and free from damage. Replace any damaged propellers with the provided spares using the screwdriver.

4. Rakenduse allalaadimine ja ühenduse loomine

Download the official SIMREX drone application from your smartphone's app store (iOS/Android compatible). Turn on the drone and connect your smartphone to the drone's Wi-Fi network (usually named "SIMREX-XXXX"). Open the app to view the live video feed and access advanced controls.

Figure 3: Control options for the X900 drone.

This image illustrates two methods of controlling the drone: direct control via a smartphone connected to the drone's WiFi, or using the included transmitter with a smartphone mounted as a monitor for FPV (First Person View).

Kasutusjuhised

1. Pairing the Drone and Controller

1. Asetage droon tasasele ja tasasele pinnale.
2. Lülita droon sisse. Indikaatortuled vilguvad.
3. Lülitage kaugjuhtimispult sisse.
4. Push the left joystick (throttle) all the way up, then all the way down. The drone lights will become solid, indicating successful pairing.

2. Õhkutõus ja maandumine

• Ühe klahviga õhkutõus: Press the one-key take-off button on the controller. The drone will automatically ascend to a stable height.
• Käsitsi start: Push both joysticks simultaneously to the bottom-outer corners to arm the motors. Then, slowly push the left joystick (throttle) upwards to take off.
• Ühe klahviga maandumine: Press the one-key landing button. The drone will automatically descend and land.
• Käsitsi maandumine: Slowly pull the left joystick (throttle) downwards until the drone lands. Once landed, push both joysticks to the bottom-outer corners to stop the motors.

3. Kõrguse hoidmise režiim

The X900 drone features Altitude Hold, allowing it to maintain a consistent height without continuous throttle input. Once the desired altitude is reached, release the throttle stick, and the drone will hover at that height, making it easier to control and capture stable footage.

Figure 4: Drone utilizing Altitude Hold feature.

This image depicts the SIMREX X900 drone maintaining a stable altitude above a grassy field, demonstrating its Altitude Hold capability. A dotted line indicates the drone's fixed height.

4. Peata režiim

In Headless Mode, the drone's orientation is relative to the pilot, regardless of which way the drone's front is facing. This simplifies flight control, especially for beginners, as you don't need to worry about the drone's actual heading.

Figure 5: Drone operating in Headless Mode.

This image shows the SIMREX X900 drone flying over a body of water, with arrows indicating movement directions relative to the pilot, illustrating the concept of Headless Mode where the drone's orientation does not affect control inputs.

5. 3D Flips and Stunts

To perform a 360-degree flip, fly the drone to a sufficient height (at least 3 meters). Press the 3D flip button on the controller, then push the right joystick in the desired direction (forward, backward, left, or right). The drone will perform a flip in that direction.

Figure 6: Drone performing 3D stunts.

This image captures the SIMREX X900 drone in mid-air, depicted in various orientations as it performs a 360-degree flip, showcasing its stunt capability.

6. Gravitatsioonianduri režiim

Activate Gravity Sensor Mode via the smartphone app or controller. In this mode, you can control the drone's flight by tilting your smartphone or the controller, providing an intuitive and immersive flying experience.

Figure 7: Controlling the drone with Gravity Sensor Mode.

This image shows a hand holding the SIMREX X900 remote controller, with the drone flying in the background, illustrating how tilting the controller (or a smartphone) can control the drone's movement in Gravity Sensor Mode.

Hooldus

• Puhastamine: Use a soft, dry cloth to clean the drone and controller. Avoid using water or solvents.
• Propelleri hooldus: Regularly inspect propellers for cracks or damage. Replace any damaged propellers immediately to ensure safe flight.
• Aku hooldus: Do not overcharge or over-discharge the battery. Store batteries in a cool, dry place when not in use. Remove batteries from the drone and controller during long-term storage.
• Hoiustamine: When not in use, store the drone in a cool, dry environment, away from direct sunlight and extreme temperatures. Fold the drone arms for compact storage.

Veaotsing

Tehnilised andmed

Garantii ja tugi

For warranty information, technical support, or any inquiries regarding your SIMREX X900 drone, please contact SIMREX customer service directly. Refer to the product packaging or the official SIMREX webkontaktandmete sait.
