tectake 800635 Metal 6-Drawer Mobile Cabinet Instruction Manual

1. Sissejuhatus

This manual provides detailed instructions for the assembly, operation, and maintenance of your tectake 800635 Metal 6-Drawer Mobile Cabinet. Please read all instructions carefully before assembly and use to ensure safe and efficient operation. Keep this manual for future reference.

2. Ohutusalane teave

Olulised ohutushoiatused:

• Ensure the cabinet is correctly assembled to prevent tipping, especially when fully loaded.
• Exercise caution with potential pinch points between drawers and sharp edges on the cabinet during assembly and use.

3. Pakendi sisu

Enne kokkupaneku alustamist kontrollige, et kõik osad oleksid olemas ja kahjustamata. Kui mõni osa on puudu või kahjustatud, võtke ühendust klienditoega.

• Cabinet Frame (Side Panels, Top Panel, Back Panel)
• 6 Drawers (Front, Back, Side Panels, Bottom)
• 6 Drawer Handles
• 4 Wheels (with screws)
• Assembly Hardware (screws, expansion screws, etc.)
• Kasutusjuhend

4. Montaažijuhised

Follow these steps to assemble your tectake 6-Drawer Mobile Cabinet. While the video below demonstrates assembly for a 5-drawer unit, the process is largely similar for this 6-drawer model.

4.1. Cabinet Frame Assembly

1. Attach the crossbars to one side panel horizontally, then insert the other side of the crossbars vertically into the second side panel.
2. Install the two side panels into the base.
3. Secure the base to the side panels using the provided expansion screws.
4. Carefully align the top panel with the side and back of the cabinet, ensuring the card slots are correctly aligned, then press down to secure.
5. Bend the iron sheet tabs to fix the back panel of the cabinet.

4.2. Drawer Assembly

1. Fold the drawer panels according to the arrows, ensuring the arrows are on the inside of the drawer.
2. Press the iron sheet tabs to fix the drawer back and bottom panels.
3. Attach the handle to the front of each drawer.
4. Repeat for all 6 drawers.

4.3. Rataste paigaldamine

1. Turn the assembled cabinet frame upside down.
2. Install the four wheels into the designated holes on the bottom of the cabinet using the provided screws.

4.4. Lõplik kokkupanek

1. Slide each assembled drawer into its respective slot in the cabinet frame.
2. After inserting the drawers, press the iron pieces on both sides of the drawer opening inwards to prevent the drawer from sliding down unintentionally.

5. Kasutamine

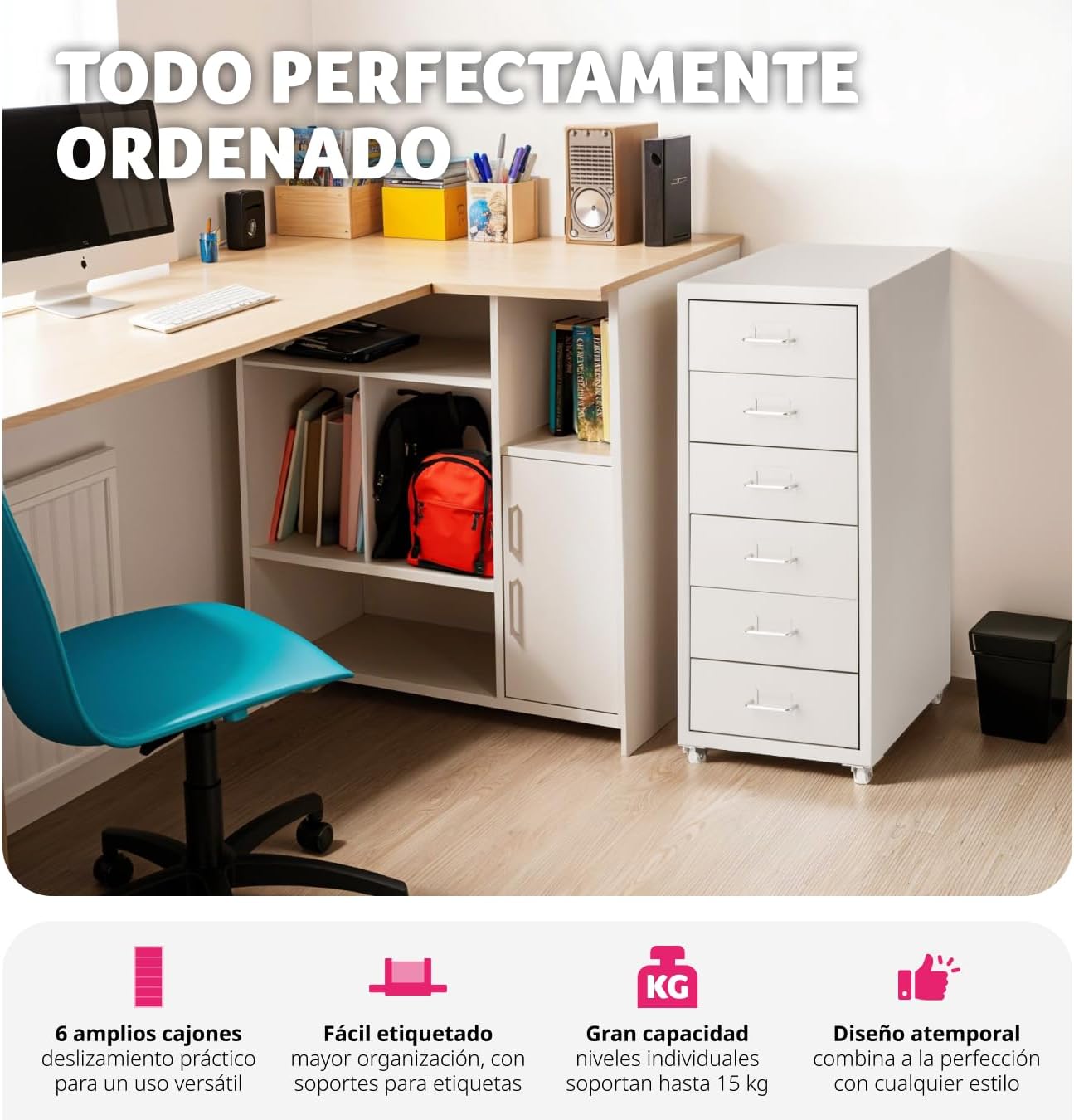

The tectake 800635 Mobile Cabinet is designed for versatile storage in various environments.

• Rikkalik hoiuruum: Each of the six drawers offers ample space for documents, hanging files, and other office accessories.
• Lihtne liikuvus: Equipped with 4 industrial-style wheels, the cabinet can be easily moved for rearrangement or cleaning.
• Tõhus märgistamine: Integrated slots on the handles allow for quick and efficient labeling of drawer contents, aiding in organization.
• Mitmekülgne paigutus: Its compact design makes it suitable for offices, homes, warehouses, and public facilities.

6. Hooldus

To ensure the longevity and appearance of your cabinet:

• Puhastamine: The cabinet can be easily cleaned with a damp or dry cloth. Avoid abrasive cleaners that may damage the powder-coated finish.
• Ülevaatus: Kontrollige perioodiliselt kõiki ühendusi ja kruvisid, et need oleksid kindlalt kinnitatud.

7. Veaotsing

If you encounter any issues with your tectake 800635 cabinet, consider the following:

• Sahtlid ei libise sujuvalt: Check if the cabinet is on a level surface. Ensure no objects are obstructing the drawer slides. Verify that the drawer assembly is correct and the iron pieces are properly pressed in.
• Kabineti ebastabiilsus: Confirm that all assembly screws and connections are securely tightened. Ensure the wheels are properly installed and locked if applicable. Avoid overloading drawers beyond their specified capacity.
• Puuduvad osad: Refer to the "Package Contents" section. If parts are missing, contact customer support with your product model and purchase details.

8. Tehnilised andmed

9. Garantii ja tugi

Garantiiteabe või tehnilise toe saamiseks lugege ostudokumente või võtke ühendust edasimüüjaga. Hoidke ostutõendit alles garantiinõuete esitamiseks.
