EVOLAND Foldable F-bike Exercise Bike User Manual

Sissejuhatus

Thank you for choosing the EVOLAND Foldable F-bike Exercise Bike. This manual provides essential information for the safe assembly, operation, and maintenance of your exercise bike. Please read it thoroughly before first use and keep it for future reference.

The EVOLAND F-bike is designed for effective cardiovascular exercise at home, helping to burn fat and tone muscles. Its foldable design allows for convenient storage.

Image: The EVOLAND Foldable F-bike Exercise Bike, showcasing its design and features like the digital display, non-slip pedals, and resistance rope.

Ohutusteave

Before starting any exercise program, consult with your physician. Improper or excessive training can lead to health injuries. Always follow these safety guidelines:

• Enne iga kasutamist veenduge, et kõik poldid ja mutrid on kindlalt kinni keeratud.
• Asetage treeningratas tasasele ja stabiilsele pinnale.
• Hoidke lapsed ja lemmikloomad kasutamise ajal seadmest eemal.
• Ärge ületage maksimaalset kandevõimet 200 kg (440 naela).
• Kanna sobivaid treeningriideid ja -jalatseid.
• Lõpetage kohe treening, kui tunnete valu, pearinglust või õhupuudust.
• The exercise bike is designed for indoor use only.

Pakendi sisu

Verify that all components are present and undamaged before assembly. If any parts are missing or damaged, contact customer support.

• Main frame (pre-assembled)
• Handlebars with digital monitor and pulse sensors
• Iste ja seljatugi
• Pedaalid
• Stabilisaatorivardad
• Resistance bands (2)
• Dumbbell (1)
• Monteerimisdetailid ja tööriistad
• Kasutusjuhend

Pilt: Detailne view of the EVOLAND F-bike components, including the digital monitor, pulse sensor, resistance knob, cushioned seat, caged pedals, transportation wheels, dumbbells, and pull ropes.

Seadistamine ja kokkupanek

The EVOLAND F-bike is designed for easy assembly, with most of the main frame pre-assembled. Follow these steps:

1. Pakkige lahti: Eemaldage ettevaatlikult kõik komponendid pakendist.
2. Stabilisaatorivardad: Attach the front and rear stabilizer bars to the main frame using the provided bolts and nuts. Ensure they are securely fastened.
3. Pedaalid: Identify the left (L) and right (R) pedals. Screw them into the corresponding crank arms. The left pedal screws counter-clockwise, and the right pedal screws clockwise. Tighten firmly.
4. Iste ja seljatugi: Attach the seat and backrest to the seat post. Adjust the seat height to your preference using the quick-release lever. The seat has 5 adjustable levels.
5. Handlebars and Monitor: Connect the handlebars to the main frame. Attach the digital monitor to the designated slot on the handlebars and connect the pulse sensor wires.
6. Vastupidavusribad: Attach the resistance bands to the designated points on the frame if desired for additional upper body workouts.
7. Lõplik kontroll: Enne esmakordset kasutamist kontrollige kõiki ühendusi ja veenduge, et jalgratas on stabiilne.

Image: Illustration of the 5-level adjustable seat and the foldable backrest feature, allowing for customization and compact storage.

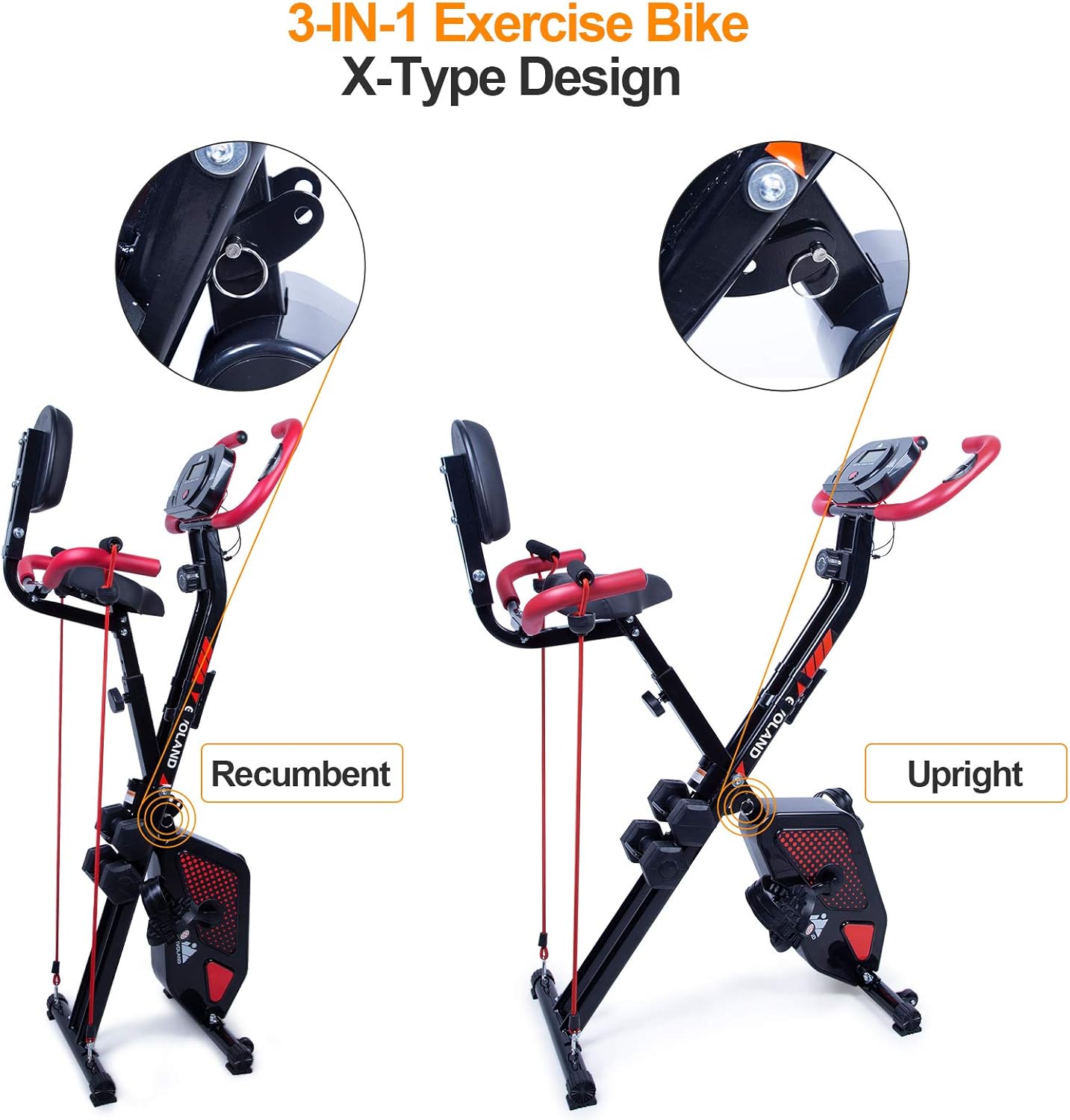

Image: The 3-in-1 X-Type design of the exercise bike, showing its configuration as both a recumbent and an upright bike.

Kasutusjuhised

Takistuse reguleerimine

The EVOLAND F-bike features 8 levels of magnetic resistance. To adjust the resistance, turn the tension control knob located on the main frame. Turn clockwise for higher resistance and counter-clockwise for lower resistance.

LCD monitori kasutamine

The integrated LCD monitor tracks your workout data. It displays:

• AEG (TMR): Treeningu kestus.
• KIIRUS (SPD): Praegune jalgrattasõidu kiirus.
• KAUGUS (DST): Treeningu ajal läbitud vahemaa.
• KALORID (CAL): Hinnanguliselt põletatud kalorid.
• PULSE (PUL): Your heart rate, measured by the hand pulse sensors on the handlebars.
• SKANNI: Lülitus automaatselt läbi kõigi kuvafunktsioonide.

To activate the monitor, simply start pedaling or press the mode button. The monitor will automatically turn off after a period of inactivity to save battery.

Image: Close-up of the LCD monitor, showing the display metrics (Time, Speed, Distance, Calories, Pulse) and the integrated phone holder and pulse sensors on the handlebars.

Adjusting Pedals

The pedals feature 4 adjustable speeds (widths) to accommodate different foot sizes. Adjust the pedal straps to ensure your feet are securely in place during your workout.

Using Resistance Bands and Dumbbell

The exercise bike comes with two resistance bands and a dumbbell for additional upper body and strength training. Integrate these into your workout routine as desired.

Hooldus

Regular maintenance ensures the longevity and safe operation of your EVOLAND F-bike.

• Puhastamine: Pühkige kuulutusega jalgratas mahaamp Puhastage higi ja tolmu eemaldamiseks pärast iga kasutuskorda lapiga. Vältige abrasiivseid puhastusvahendeid.
• Ülevaatus: Kontrollige regulaarselt kõigi poltide, mutrite ja liikuvate osade pingulolekut ja kulumist. Pingutage kõik lahtised kinnitusdetailid.
• Määrimine: The magnetic resistance system is generally maintenance-free. Do not lubricate the flywheel or resistance mechanism.
• Hoiustamine: When not in use, fold the bike for compact storage. Use the transportation wheels to move it easily. Store in a dry, cool place away from direct sunlight.

Image: The stable X-frame design and friction-free magnetic drive system, highlighting the bike's smooth and durable operation.

Veaotsing

Tehnilised andmed

Image: Diagram illustrating the product dimensions (height, width, length) and suitability for users, with a weight capacity of 200 kg (440 lbs).

Garantii ja tugi

Specific warranty information is not provided in this manual. For warranty details, product support, or to order replacement parts, please contact EVOLAND customer service through your retailer or the official EVOLAND websaidile.

Please have your model number (X1463) and purchase date ready when contacting support.
