EVH 5150III mikrovirna kasutusjuhend

Sissejuhatus

This manual provides essential information for the safe and effective use of your EVH 5150III Micro Stack. This compact guitar amplifier features 1 watt of power, a single 3-inch speaker, a 1/4-inch stereo headphone output, and a convenient tilt-back kickstand. It operates on an included 9V battery or an optional external power supply.

Ohutusjuhised

• Enne seadme kasutamist lugege läbi kõik juhised ampelujõulisem.
• Tulekahju- või elektrilöögiohu vältimiseks ärge jätke seadet vihma või niiskuse kätte.
• Ärge avage ampelujõud casing. Sees ei ole kasutaja poolt hooldatavaid osi. Pöörduge kogu hoolduse eest kvalifitseeritud hooldustöötaja poole.
• Use only the specified power supply (9V DC, center negative, not included) if not using battery power.
• Ensure proper battery polarity when installing. Remove batteries if the unit will not be used for an extended period.
• Kuulmiskahjustuste vältimiseks vältige pikka aega suure helitugevusega kuulamist.

Pakendi sisu

Palun kontrollige, kas teie pakend sisaldab järgmisi esemeid:

• EVH 5150III Micro Stack Ampelujõulisem
• 9 V patarei (eelinstallitud või eraldi kaasas)
• Kasutusjuhend (see dokument)

Juhtnupud ja funktsioonid

Familiarize yourself with the controls and connections on your EVH 5150III Micro Stack.

Joonis 1: Esipaneeli juhtnupud. This image displays the front of the EVH 5150III Micro Stack, highlighting the 1/4-inch input jack, Gain knob, Volume knob, Tone knob, and Power switch.

1. SISEND: Connect your guitar cable here.
2. KASUTAMINE: Adjusts the amount of overdrive/distortion. Higher settings produce more aggressive tones.
3. MAHU: Juhib üldist väljundtaset ampelujõulisem.
4. TOON: Adjusts the treble response, allowing you to brighten or darken your sound.
5. VÕIMSUS: Sisse/välja lüliti ampelujõulisem.

Seadistamine

Aku paigaldamine

The EVH 5150III Micro Stack operates on a single 9V battery, which is included. To install or replace the battery:

Figure 2: Rear Panel and Battery Compartment. This image shows the back of the amplifier, indicating the location of the battery compartment cover and the DC IN jack.

1. Locate the battery compartment cover on the rear of the ampelujõulisem.
2. Lükake kate lahti.
3. Connect a 9V alkaline battery to the battery clip, ensuring correct polarity (+ to + and - to -).
4. Asetage aku sahtlisse ja sulgege kaas kindlalt.

Kitarri ühendamine

Insert a standard 1/4-inch instrument cable from your guitar into the INPUT jack on the front panel of the ampelujõulisem.

Kõrvaklappide kasutamine

For silent practice, connect a 1/4-inch stereo headphone jack into the PHONES output located on the rear panel. This will mute the internal speaker.

Väline toiteallikas (valikuline)

The amplifier can also be powered by an optional 9V DC, center-negative power adapter (not included). Connect the adapter to the DC IN jack on the rear panel. Using an external power supply will bypass the internal battery.

Using the Tilt-Back Kickstand

The EVH 5150III Micro Stack features a built-in kickstand to angle the amplifier upwards for better sound projection during practice.

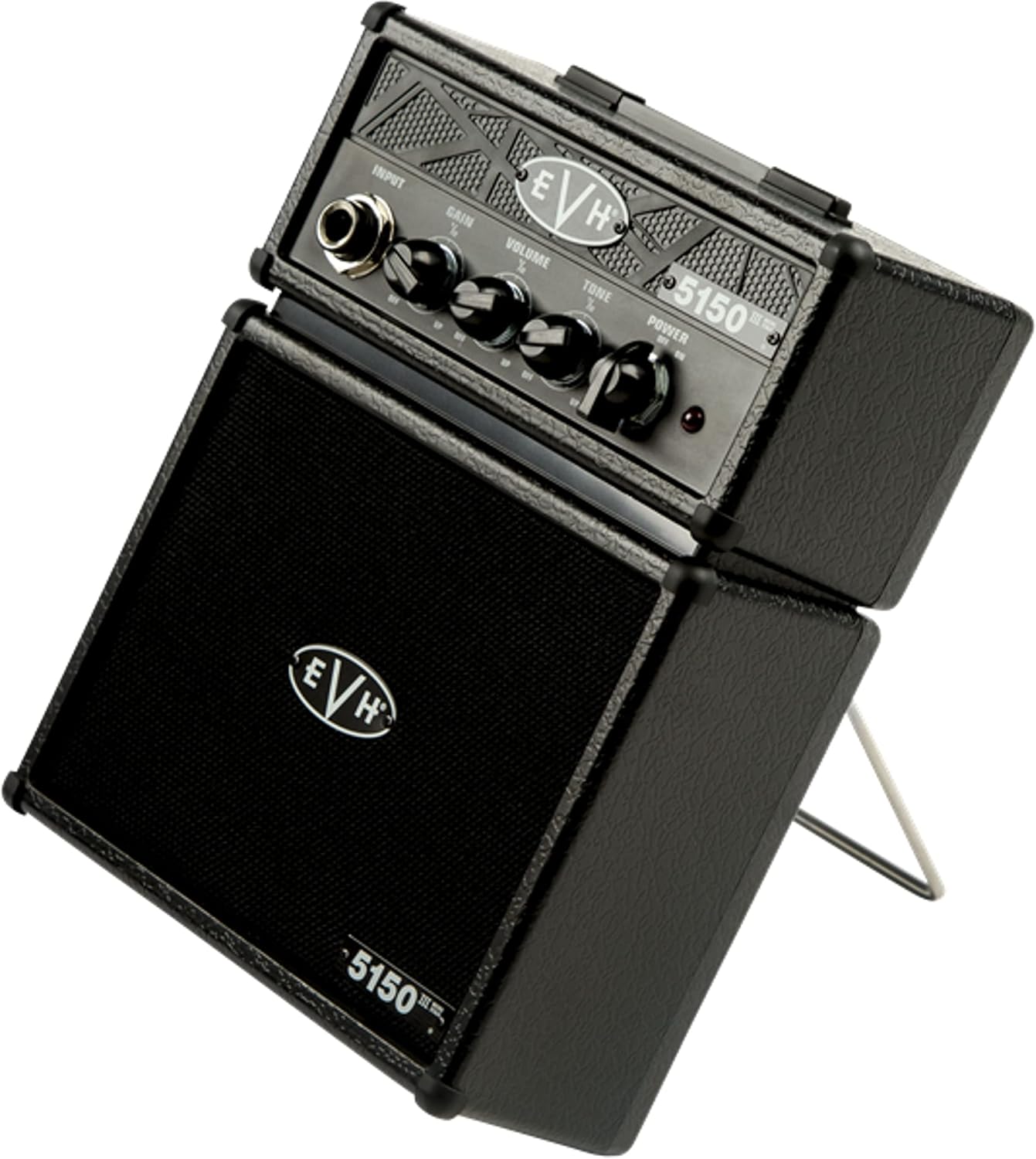

Joonis 3: Amplifier with Tilt-Back Kickstand Engaged. See pilt näitab amplifier angled upwards, demonstrating the use of the integrated kickstand for improved sound projection.

To engage the kickstand, simply pull it out from the rear bottom of the amplifier until it locks into position. To retract, push it back into its housing.

Operatsioon

1. Ensure your guitar is connected and the battery is installed or an external power supply is connected.
2. Turn the VOLUME and GAIN knobs to their minimum settings.
3. Flip the POWER switch to the "ON" position.
4. Suurendage HELITUGEVUST aeglaselt soovitud kuulamistasemeni.
5. Adjust the GAIN knob to achieve the desired amount of overdrive or distortion.
6. Use the TONE knob to fine-tune the brightness of your sound.
7. When finished, turn the VOLUME and GAIN knobs down, then flip the POWER switch to "OFF".

Hooldus

Puhastamine

Pühkige amplifier with a soft, dry cloth. Do not use liquid cleaners or abrasive materials, as they may damage the finish or internal components.

Aku hooldus

Kui amplifier will not be used for an extended period, remove the 9V battery to prevent leakage and potential damage to the unit.

Säilitamine

Säilitage ampHoida jahedas ja kuivas kohas, eemal otsesest päikesevalgusest ja äärmuslikest temperatuuridest.

Veaotsing

• Toide puudub:
  • Check if the 9V battery is correctly installed and not depleted.
  • If using an external power supply, ensure it is the correct voltage (9V DC, center negative) and properly connected.
  • Verify the POWER switch is in the "ON" position.
• Heli puudub:
  • Ensure your guitar cable is securely connected to both the guitar and the amplifier's INPUT jack.
  • Check that the VOLUME knob is turned up.
  • If headphones are connected, disconnect them to enable the internal speaker.
  • Test with a different guitar cable or guitar to rule out external equipment issues.
• Moonutatud või nõrk heli:
  • Adjust the GAIN and VOLUME knobs. High GAIN settings will naturally produce distortion.
  • Replace the 9V battery if the sound is weak or distorted at lower GAIN settings, as this can indicate a low battery.
  • Veenduge, et kitarri helitugevuse nupp on täis keeratud.

Tehnilised andmed

Garantii ja tugi

EVH products are designed for reliability and performance. For specific warranty information, please refer to the warranty card included with your purchase or visit the official EVH website. For technical support or service inquiries, please contact EVH customer service through their official channels.

Märkus: Hoidke ostutõendit garantiinõuete esitamiseks alles.
