Zealot S11 Waterproof Bluetooth Speaker User Manual

1. Sissejuhatus

The Zealot S11 is a portable, wireless Bluetooth speaker designed for versatile use, including outdoor activities. It features IP67 waterproofing, a multi-mode flashlight, a power bank function, and supports various audio input methods. This manual provides detailed instructions for its setup, operation, and maintenance.

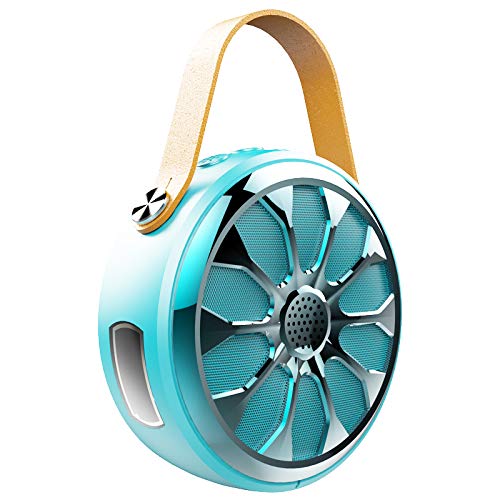

Image 1: Zealot S11 Waterproof Bluetooth Speaker

2. Pakendi sisu

Enne kasutamist veenduge, et pakendis on kõik esemed olemas:

• Zealot S11 Bluetooth Speaker
• Bike/Cycle Mount
• 3.5 mm helikaabel
• USB laadimiskaabel
• Kasutusjuhend

Image 2: Zealot S11 Speaker with included accessories

3. Toote paigutus

3.1 Portid ja konnektorid

Pilt 3: Külg view of the Zealot S11 showing the AUX-in port, USB-out port (for power bank), USB-in port (for charging), Power ON/OFF switch, and TF card slot.

• IN (USB-in): Micro USB-port kõlari laadimiseks.
• VÄLJA SISSE: Power switch to turn the speaker on or off.
• TF: Slot for a TF (MicroSD) card for local music playback.
• OUT (USB-out): Standard USB port for using the speaker as a power bank.
• AUX: 3.5mm audio input jack for wired connection.

3.2 juhtnuppu

Pilt 4: Ülemine osa view of the Zealot S11 showing the control buttons for Flashlight, Mode Switch, Volume Down/Previous Track, and Volume Up/Next Track.

• Taskulambi nupp: Activates and cycles through flashlight modes.
• M (režiimilüliti): Switches between Bluetooth, TF card, and AUX modes.
• Vol-/Pre Track: Lühike vajutus helitugevuse vähendamiseks, pikk vajutus eelmise loo kuulamiseks.
• Vol+/järgmine lugu: Lühike vajutus helitugevuse suurendamiseks, pika vajutus järgmise loo jaoks.

4. Seadistamine

4.1 Kõlari laadimine

1. Ühendage kaasasolev USB-laadimiskaabel IN kõlari port.
2. Connect the other end of the USB cable to a 5V/1A USB power adapter (not included) or a computer's USB port.
3. The charging indicator light will illuminate. Once fully charged, the light will change or turn off (refer to specific LED behavior in the quick start guide if available).
4. A full charge provides approximately 20 hours of music playback.

4.2 Mounting on a Bike/Cycle

The Zealot S11 includes a mount for attachment to a bike or cycle handlebar.

1. Locate the screw hole on the bottom of the speaker.
2. Attach the provided bike mount to the speaker using the screw.
3. Securely fasten the mount to your bike's handlebar. Ensure the speaker is stable before riding.

5. Kasutusjuhised

5.1 Toide sisse/välja

• Sisselülitamiseks libistage VÄLJAS/SISSE lüliti asendisse „ON”.
• Väljalülitamiseks libistage VÄLJAS/SISSE switch to the 'OFF' position.

5.2 Bluetoothi ​​sidumine

1. Ensure the speaker is powered on and in Bluetooth mode (indicated by a flashing LED, if applicable). If not, press the M nuppu Bluetooth-režiimi lülitumiseks.
2. Lubage oma nutitelefonis või tahvelarvutis Bluetooth ja otsige saadaolevaid seadmeid.
3. Select "Zealot S11" from the list of devices.
4. Pärast sidumist kostab helisignaal ja LED-indikaator lõpetab vilkumise.

5.3 Muusika taasesitus

Image 5: The Zealot S11 supports three major player modes: Bluetooth, TF card, and AUX input.

• Bluetoothi ​​esitus: Pärast edukat sidumist saate ühendatud seadmest muusikat esitada.
• TF kaardimäng: Sisestage muusikaga TF (MicroSD) kaart files sisse TF slot. The speaker will automatically switch to TF card mode or you can press the M nuppu selle valimiseks.
• AUX-esitus: Connect an audio device using the 3.5mm audio cable to the AUX port. Press the M nuppu, et lülituda AUX-režiimi.

5.4 Käed-vabad kõned

Image 6: The Zealot S11 allows for hands-free phone calls when connected via Bluetooth.

When connected via Bluetooth to your smartphone, the speaker can be used for hands-free calls.

• Vasta kõnele: Vajutage nuppu M sissetulevale kõnele vastamiseks nuppu üks kord.
• Kõne lõpetamine: Vajutage nuppu M kõne lõpetamiseks vajutage kõne ajal üks kord nuppu.
• Keeldu kõnest: Vajutage ja hoidke all nuppu M sissetulevast kõnest keeldumiseks nuppu.

5.5 Taskulambi kasutamine

The speaker features a 3-mode flashlight.

• Vajutage nuppu Taskulambi nupp once to turn on the flashlight.
• Press again to cycle through the different modes (e.g., high, low, SOS).
• Press a third time to turn off the flashlight.

5.6 Akupanga funktsioon

The Zealot S11 can act as a power bank to charge other devices.

1. Connect your mobile phone or other USB-powered device to the VÄLJAS (USB-out) port on the speaker using a compatible USB cable.
2. The speaker will begin providing 5V/1A current to charge your device.

6. Hooldus

• Veekindluse reiting: The Zealot S11 is IP67 waterproof and dustproof. This means it can withstand immersion in water up to 1 meter for 30 minutes and is protected against dust ingress. Ensure all port covers are securely closed before exposure to water or dust.
• Puhastamine: Pühkige kõlar pehme, damp riie. Ärge kasutage tugevatoimelisi kemikaale ega abrasiivseid puhastusvahendeid.
• Hoiustamine: Hoidke kõlarit jahedas ja kuivas kohas, eemal otsesest päikesevalgusest ja äärmuslikest temperatuuridest.
• Aku hooldus: To prolong battery life, fully charge the speaker before first use and at least once every three months if not used regularly. Avoid completely draining the battery frequently.

7. Veaotsing

• Kõlar ei lülitu sisse: Veenduge, et aku on laetud. Ühendage kõlar USB-laadimiskaabli abil toiteallikaga.
• Ei saa Bluetoothi ​​kaudu siduda:
  • Veenduge, et kõlar on Bluetoothi ​​sidumisrežiimis (vilkuv LED).
  • Veenduge, et teie seadme Bluetooth on lubatud ja asub leviala piires (tavaliselt 10 meetrit).
  • Forget "Zealot S11" from your device's Bluetooth list and try pairing again.
  • Taaskäivitage nii kõlar kui ka Bluetooth-seade.
• Heli puudub:
  • Kontrollige nii kõlari kui ka ühendatud seadme helitugevust.
  • Ensure the correct playback mode (Bluetooth, TF, AUX) is selected.
  • AUX-pordi kasutamisel veenduge, et kaabel on täielikult sisestatud ja töökorras.
• Taskulamp ei tööta: Ensure the speaker is powered on and press the flashlight button.
• Akupank ei lae seadet: Ensure the speaker has sufficient charge. Verify the USB cable and the connected device are functional.

8. Tehnilised andmed

9. Tootevideo ülekandmineview

See video annab visuaalse ülevaateview of the Zealot S11 speaker's features, including its flashlight, design, and various playback options. Please note that the video source URL is a placeholder as a direct m3u8 link was not provided in the product data.

10. Garantii ja tugi

For warranty information and customer support, please refer to the documentation included with your purchase or visit the official Zealot webveebisait. Hoidke ostutõendit alles garantiinõuete esitamiseks.
