Sissejuhatus
This manual provides comprehensive instructions for the installation, operation, and maintenance of your Terminator TCL 1070 Cylinder Door Lock. Please read these instructions carefully before installation and use to ensure proper function and longevity of the product.
Ohutusteave
- Paigaldamise ajal kandke alati sobivaid isikukaitsevahendeid, näiteks kaitseprille.
- Ensure the door frame and door are structurally sound before installing the lock.
- Do not attempt to modify the lock cylinder or keys, as this may compromise security and void the warranty.
- Hoidke võtmeid turvalises kohas ja eemal volitamata isikutest.
Pakendi sisu
Veenduge, et kõik allpool loetletud esemed on teie pakendis olemas:
- 1x Terminator TCL 1070 Cylinder Door Lock
- 3x Nickel Plated Keys
- 1x kinnituskruvi
Joonis 1: Contents of the Terminator TCL 1070 package, showing the brass cylinder lock, three nickel-plated keys, and the securing screw.
Paigaldusjuhised
Follow these steps to install your new cylinder door lock. Ensure you have the correct size cylinder for your door thickness.
- Measure Your Existing Cylinder (if applicable): If replacing an old cylinder, remove the fixing screw located on the door's edge, below the latch. Insert the key into the cylinder and turn it slightly (about 15-20 degrees) to align the cam with the cylinder body. Carefully pull the cylinder out. Measure the length from the center of the fixing screw hole to each end of the cylinder. The TCL 1070 has dimensions of 35mm x 35mm (70mm total length).
- Valmistage uks ette: Ensure the mortise lock body is correctly installed in the door and the cylinder hole is clear.
- Insert the New Cylinder: Insert one of the provided keys into the new Terminator TCL 1070 cylinder. Turn the key slightly to align the cam (the central rotating part) with the cylinder body.
- Position the Cylinder: Slide the cylinder into the mortise lock opening from the side of the door. Ensure it is centered and flush with both sides of the door.
- Silindri kinnitamine: Insert the long fixing screw through the screw hole on the door's edge and into the threaded hole in the center of the cylinder. Tighten the screw firmly but do not overtighten.
- Testoperatsioon: With the door open, insert a key from both sides and turn it to ensure smooth operation of the lock mechanism. The key should turn freely, and the cam should retract and extend without obstruction.
Joonis 2: Üksikasjalik view of the cylinder lock, highlighting the key entry point and the cam.
Joonis 3: Üles view of the cylinder lock, indicating the position of the fixing screw hole.

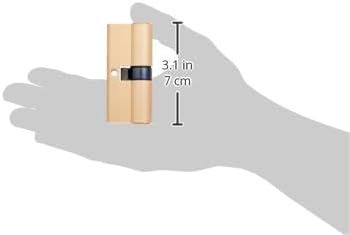

Joonis 4: The cylinder lock held in a hand, illustrating its approximate size and showing a length of 7 cm (3.1 inches).
Kasutusjuhised
To operate the Terminator TCL 1070 Cylinder Door Lock:
- Lukustama: Insert one of the provided keys into the keyhole. Turn the key clockwise until the deadbolt extends fully into the door frame. Remove the key.
- Avamiseks tehke järgmist. Insert the key into the keyhole. Turn the key counter-clockwise until the deadbolt fully retracts into the door. Remove the key.
Ensure the key is fully inserted before turning to prevent damage to the key or the lock mechanism.
Hooldus
Regulaarne hooldus aitab tagada teie luku tõrgeteta töö ja pikaealisuse.
- Määrimine: Periodically (e.g., once a year), apply a small amount of graphite-based lubricant or a specialized lock lubricant into the keyway. Avoid using oil-based lubricants as they can attract dust and debris.
- Puhastamine: Wipe the exterior of the lock cylinder with a soft, dry cloth to remove dust and grime. Do not use abrasive cleaners or solvents.
- Peamised hooldused: Avoid bending or damaging the keys. Store spare keys securely.
Veaotsing
| Probleem | Võimalik põhjus | Lahendus |
|---|---|---|
| Võtit on raske sisestada või keerata. | Dirt or debris in the keyway; lack of lubrication; bent key. | Clean the keyway with compressed air. Apply lock lubricant. Check if the key is bent and replace if necessary. |
| Lock mechanism feels stiff. | Lack of lubrication; internal wear. | Apply lock lubricant. If the problem persists, consider professional inspection or replacement. |
| Cylinder is loose in the door. | Fixing screw is loose. | Tighten the fixing screw on the door's edge. Do not overtighten. |
Tehnilised andmed
| Kaubamärk | Terminaator |
| Mudeli nimi | TCL 1070 |
| Luku tüüp | Pin Tumbler |
| Materjal | Messing |
| Viimistluse tüüp | Harjatud |
| Värv | Hõbedane |
| Kauba mõõtmed (P x L x K) | 10.1 x 2 x 2.7 tolli (umbes 25.6 x 5.1 x 6.9 cm) |
| Silindri pikkus | 70mm (35mm x 35mm from center screw) |
| Kauba kaal | 150 grammi (umbes 5.3 untsi) |
| Erifunktsioon | Nickel plated 3 keys and fixing screw |
| UPC | 038861652342 |
Joonis 5: Packaging detail showing dimensions (35mm x 35mm) and model number TCL 1070.
Garantii teave
Specific warranty details for the Terminator TCL 1070 Cylinder Door Lock are not provided in this manual. For warranty claims or information, please refer to the product packaging or contact the manufacturer directly.
Klienditugi
If you encounter any issues or have questions regarding your Terminator TCL 1070 Cylinder Door Lock that are not covered in this manual, please contact Terminator customer support through their official websaidil või jaemüüjal, kust toode osteti.
