KING GATES Dy Kit 24/600 Sliding Gate Automation System

1. Sissejuhatus

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your KING GATES Dy Kit 24/600 Sliding Gate Automation System. Please read all instructions carefully before beginning installation or operation. Keep this manual for future reference.

2. Oluline ohutusteave

Failure to follow these safety instructions may result in serious injury or property damage. Only qualified personnel should perform installation and maintenance.

• Enne hooldus- või remonditöid ühendage seade vooluvõrgust lahti.
• Veenduge, et kõik elektriühendused vastavad kohalikele eeskirjadele ja standarditele.
• Ärge lubage lastel värava lähedal ega kaugjuhtimispuldiga mängida.
• Install safety devices such as photocells and safety edges to prevent entrapment.
• Regularly inspect the gate and automation system for signs of wear or damage.
• Hoidke käed ja riided liikuvatest osadest eemal.

3. Pakendi sisu

Please verify that all components listed below are present in your package. If any items are missing or damaged, contact your supplier immediately.

• 1x Dy Kit 24/600 Motor Unit
• 1x Control Unit (integrated or separate)
• 2x kaugjuhtimispuldid
• 1x Set of Mounting Hardware (screws, anchors, base plate)
• 1x Pair of Photocell Sensors
• 1x Warning Light
• 1x Kasutusjuhend (käesolev dokument)

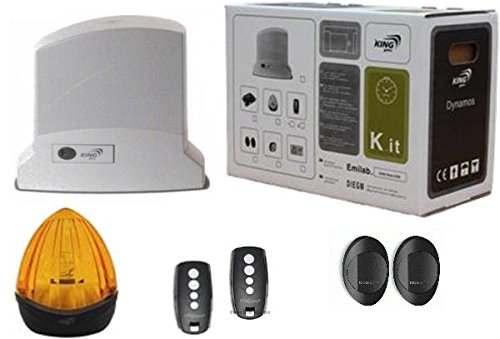

Pilt: Üleview of the KING GATES Dy Kit 24/600 Sliding Gate Automation System components, including the motor unit, control board, and accessories.

4. Seadistamine ja installimine

This section outlines the steps for installing the Dy Kit 24/600 system. Professional installation is recommended.

4.1. Mounting the Motor Unit

1. Prepare a stable, level concrete base next to the gate opening.
2. Position the motor unit base plate, ensuring correct alignment with the gate rack.
3. Secure the base plate to the concrete using appropriate anchors and bolts.
4. Mount the motor unit onto the base plate.

4.2. Elektriühendused

1. Veenduge, et peamine toiteallikas on kaitselülitist lahti ühendatud.
2. Connect the main power cable (230V AC) to the control unit terminals, observing live, neutral, and earth connections.
3. Connect the motor power cables to the designated terminals on the control unit.
4. Wire the photocell sensors and warning light to the control unit as per the wiring diagram.

4.3. Piirlüliti reguleerimine

1. Manually move the gate to its fully open and fully closed positions.
2. Adjust the mechanical or magnetic limit switches on the motor unit to correspond with these positions.
3. Ensure the gate stops precisely at the desired open and closed points.

4.4. Kaugjuhtimispuldi programmeerimine

1. Press and hold the programming button on the control unit (refer to the control unit's specific manual for exact location).
2. While holding the programming button, press the desired button on the remote control.
3. Release both buttons. The remote control should now be programmed.
4. Test the remote control to ensure proper operation of the gate.

5. Kasutusjuhised

Once installed and configured, operating your KING GATES Dy Kit 24/600 is straightforward.

5.1. Põhitoimingud

• Avatud: Press the programmed button on your remote control once. The gate will open completely.
• Sule: If the gate is open, press the programmed button again. The gate will close completely.
• Peatus: During opening or closing, press the programmed button to stop the gate at any position. Pressing again will resume motion in the opposite direction (if configured).

5.2. Käsitsi vabastamine

In case of a power failure or system malfunction, the gate can be operated manually.

1. Locate the manual release mechanism on the motor unit (usually a key-operated lever).
2. Insert the provided key and turn it to disengage the motor.
3. Väravat saab nüüd käsitsi lükata avada või sulgeda.
4. To re-engage, reverse the process and ensure the mechanism locks securely.

6. Hooldus

Regular maintenance ensures the longevity and reliable operation of your gate automation system.

• Igakuine: Inspect the gate's movement for any obstructions or unusual noises. Clean the photocell lenses with a soft, dry cloth.
• Iga 6 kuu tagant: Check all mounting bolts and screws for tightness. Lubricate the gate's moving parts (hinges, wheels, rack) with appropriate grease or lubricant.
• Aastas: Have a qualified technician inspect the electrical connections, motor, and control unit for wear or damage. Test all safety features (photocells, obstacle detection).

7. Veaotsing

Selles jaotises käsitletakse levinud probleeme, millega võite kokku puutuda. Probleemide korral, mida siin ei ole loetletud, võtke ühendust tehnilise toega.

8. Tehnilised andmed

The following are the technical specifications for the KING GATES Dy Kit 24/600 system.

9. Garantii ja tehniline tugi

Your KING GATES Dy Kit 24/600 system is covered by a manufacturer's warranty against defects in materials and workmanship. For specific warranty terms and conditions, please refer to the documentation provided with your purchase or contact your retailer.

For technical assistance, troubleshooting beyond this manual, or to inquire about spare parts, please contact your authorized KING GATES dealer or the customer support provided by your point of purchase. When contacting support, please have your product model (Dy Kit 24/600) and ASIN (B01MUGJ2UX) ready.
