TRINITY TXK-1701 Rolling Storage Bin Rack & Parts Organizer Instruction Manual

Sissejuhatus

Thank you for choosing the TRINITY TXK-1701 Rolling Storage Bin Rack & Parts Organizer. This versatile, dual-sided mobile bin rack is designed to provide efficient and accessible storage for various items in your home, garage, or workshop. With 94 color-coded bins, it simplifies organization and retrieval of small parts, tools, and hardware. This manual provides essential information for safe assembly, operation, and maintenance of your new storage solution.

Oluline ohutusteave

Palun lugege enne kokkupanekut ja kasutamist kõik juhised läbi ja mõistke neid. Nende juhiste eiramine võib põhjustada vigastusi või toote kahjustumist. Hoidke see juhend edaspidiseks kasutamiseks alles.

• Do not exceed the maximum weight capacity of 330 lbs for the entire unit.
• Each orange bin has a maximum capacity of 2 lbs.
• Each gray bin has a maximum capacity of 4 lbs.
• Enne kasutamist veenduge, et kõik komponendid on kindlalt kinnitatud.
• Kasutage ümberkukkumise vältimiseks tasasel pinnal.
• Engage locking wheels when the unit is stationary to prevent unintended movement.
• Hoidke lapsed ja lemmikloomad kogunemisalast eemal.
• See toode on mõeldud kasutamiseks ainult siseruumides.

Pakendi sisu

Verify that all components listed below are present before beginning assembly. If any parts are missing or damaged, please contact TRINITY customer support.

• 1 x Bin Rack Frame
• 64 x Orange Plastic Bins
• 30 x Gray Plastic Bins
• 4 x Wheels (2 locking, 2 non-locking)
• Hardware Kit (bolts, washers, etc.)
• 1 x Bottom Shelf
• 1 x Top Shelf
• 2 x postitust
• 4 x Post Supports
• 7 x Hanging Bars
• 1 x Hanging Bar Support

Paigaldus- ja kokkupanekujuhised

Assembly of the TRINITY TXK-1701 bin rack is designed to be straightforward and typically requires no tools, completing in approximately 20 minutes. Follow these steps carefully.

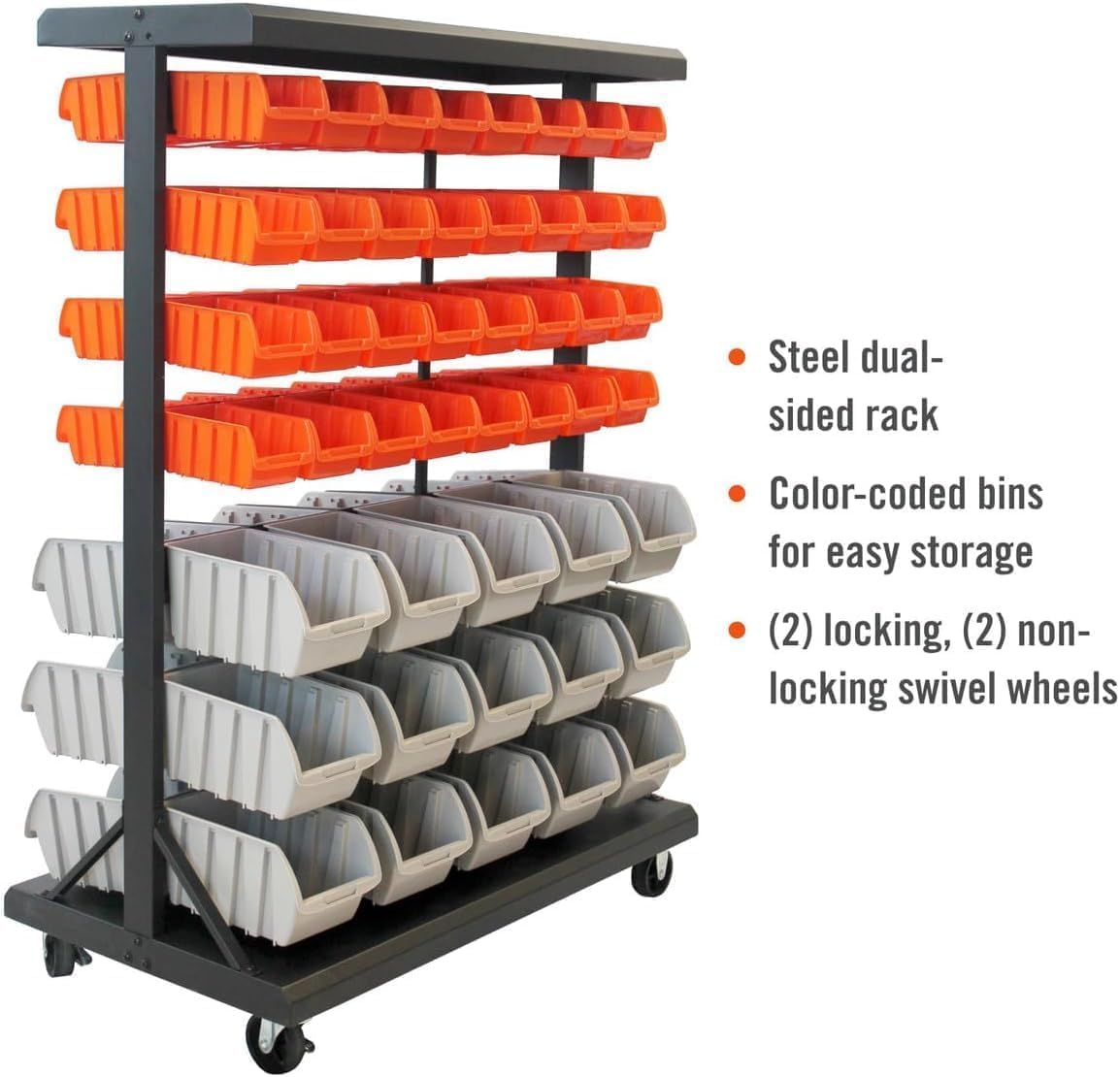

Image: The TRINITY Rolling Storage Bin Rack, showcasing its dual-sided design with orange and gray bins, and mobile wheels.

Kokkupanek lõppenudview Video

1. Pakkige komponendid lahti: Carefully remove all parts from the packaging and lay them out on a clean, flat surface. Refer to the 'Package Contents' section to ensure all items are present.
2. Rataste kinnitamine: Secure the four wheels to the bottom shelf. Ensure the two locking wheels are positioned on the same side for easy access.
3. Install Posts: Insert the two vertical posts into the designated slots on the bottom shelf.
4. Add Post Supports: Attach the four post supports to stabilize the vertical posts.
5. Mount Hanging Bars: Slide the seven hanging bars into the slots on the vertical posts. These bars will hold the storage bins.
6. Turvaline ülemine riiul: Place the top shelf onto the vertical posts and secure it using the provided hardware.
7. Organize Bins: Hang the 64 orange bins and 30 gray bins onto the hanging bars. The bins are color-coded for easy organization.

Image: Dimensions and weight capacities for the TRINITY Bin Rack and its individual bins.

Kasutusjuhised

The TRINITY TXK-1701 bin rack is designed for ease of use and mobility. Its dual-sided configuration allows for maximum storage and convenient access to your items.

• Loading Bins: Place items into the color-coded bins. The orange bins are suitable for smaller, lighter items (up to 2 lbs), while the gray bins accommodate larger, heavier items (up to 4 lbs).
• Juurdepääs üksustele: The dual-sided design allows you to access bins from either side of the rack. Simply rotate the unit to reach the desired side.
• Liikuvus: To move the bin rack, unlock the two locking wheels. Guide the unit to your desired location. Once positioned, engage the locking wheels to secure the rack in place.
• Ülemise riiuli kasutamine: The top shelf can be used for additional storage or as a temporary workspace for projects.

Image: Close-up of orange bins containing small parts, demonstrating their use for organizing hardware.

Hooldus

Regular maintenance will ensure the longevity and optimal performance of your TRINITY bin rack.

• Puhastamine: Wipe down the metal frame and plastic bins with a soft, damp cloth. Avoid abrasive cleaners or solvents that could damage the finish or plastic.
• Ülevaatus: Kontrollige regulaarselt kõiki polte ja ühendusi, et need oleksid kindlalt paigal. Vajadusel pingutage uuesti.
• Rattahooldus: Keep the wheels free of debris to ensure smooth movement. Lubricate wheel axles if they become stiff.
• Bin Condition: Inspect bins for cracks or damage. Replace any compromised bins to maintain storage integrity.

Veaotsing

If you encounter issues with your bin rack, refer to the following common problems and solutions.

• Unit is unstable/wobbly:
  • Veenduge, et kõik poldid ja ühendused on kindlalt kinni.
  • Veenduge, et seade on tasasel pinnal.
• Rattad ei veere sujuvalt:
  • Check for debris (e.g., hair, string) caught in the wheel casters and remove it.
  • Kandke rattatelgedele väike kogus määrdeainet.
• Bins fall off the rack:
  • Ensure bins are correctly seated on the hanging bars.
  • Do not exceed the individual weight capacity for each bin (2 lbs for orange, 4 lbs for gray).

Tehnilised andmed

Garantii ja tugi

TRINITY products are designed for durability and reliability. Your TRINITY TXK-1701 Rolling Storage Bin Rack & Parts Organizer comes with a 1-year hassle-free replacement warranty.

• Garantii kehtivus: This warranty covers defects in material and workmanship under normal use for one year from the date of purchase.
• Garantii taotlemine: For warranty claims or technical support, please contact TRINITY customer service directly. Refer to the contact information provided with your product packaging or visit the official TRINITY websaidile.
• Klienditugi: For assistance with assembly, missing parts, or any other inquiries, please reach out to TRINITY customer support.
