Marley 1874-5000W 208/240V Horizontal/Downflow Unit Heater Instruction Manual

1. Sissejuhatus

This manual provides essential instructions for the safe installation, operation, and maintenance of your Marley 1874-5000W 208/240V Horizontal/Downflow Unit Heater, Model MWUH5004. This heavy-duty electric heater is designed to provide comfort in various spaces such as garages, workshops, and basements. Please read this manual thoroughly before installation or use and retain it for future reference.

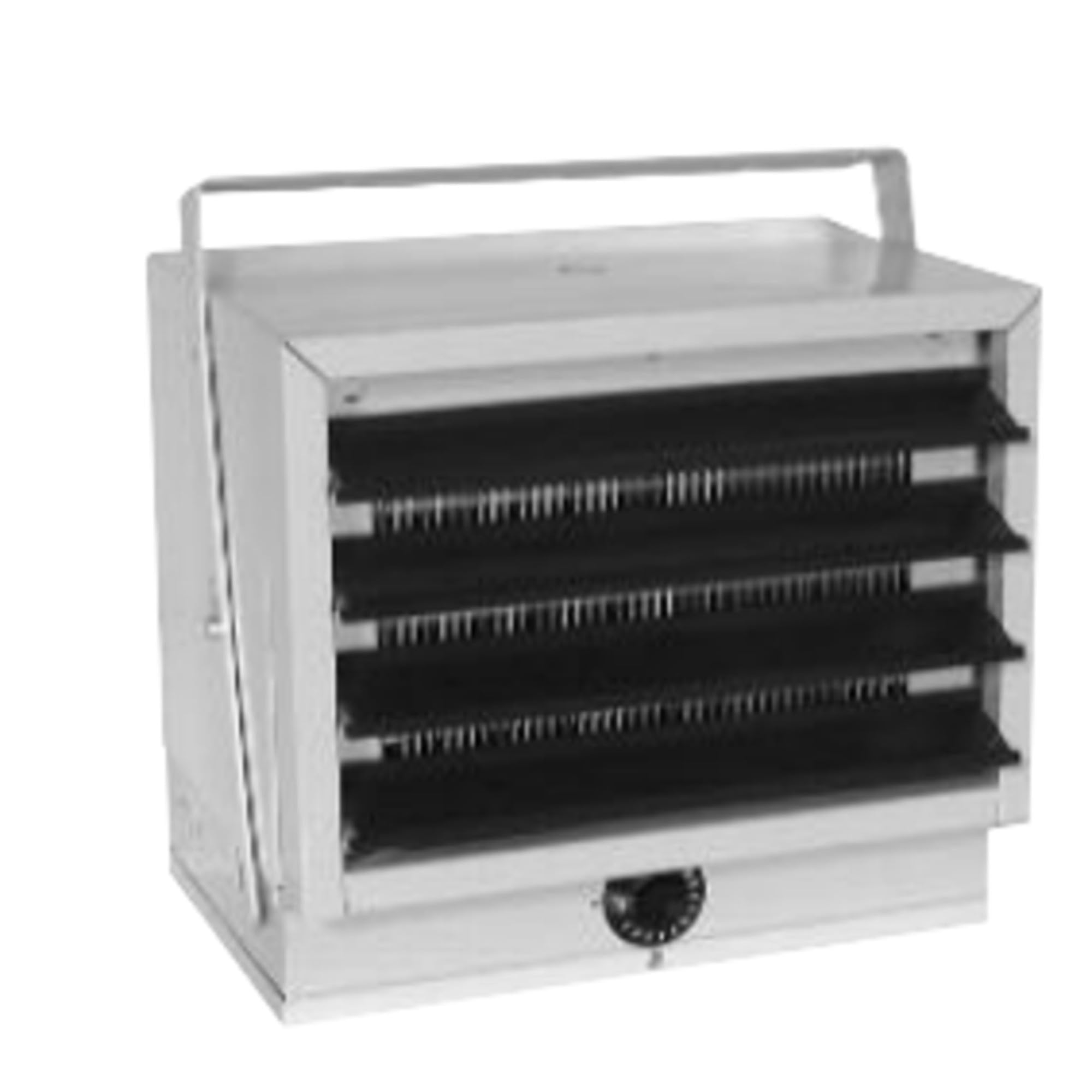

Image 1.1: Marley 1874-5000W Unit Heater. This image shows the beige-colored unit heater, typically mounted for horizontal air discharge, with its adjustable louvers visible.

2. Ohutusalane teave

HOIATUS: Nende ohutusjuhiste eiramine võib põhjustada tulekahju, elektrilöögi, tõsiseid vigastusi või surma.

• Enne selle kütteseadme paigaldamist või kasutamist lugege läbi kõik juhised.
• See kütteseade on kasutamise ajal kuum. Põletuste vältimiseks ärge laske paljal nahal kuumade pindadega kokku puutuda. Hoidke süttivaid materjale, nagu mööbel, padjad, voodipesu, paberid, riided ja kardinad, kütteseadme esiosast vähemalt 0.9 m kaugusel ning hoidke neid eemal külgedest ja tagaosast.
• Äärmiselt ettevaatlik on vajalik, kui mis tahes kütteseadet kasutavad lapsed või invaliidid või nende läheduses ning kui kütteseade jäetakse tööle ja järelevalveta.
• Ärge kasutage kütteseadet, mille juhe või pistik on kahjustatud või kui kütteseade on rikkis, maha kukkunud või muul viisil kahjustatud. Visake kütteseade ära või tagastage see volitatud teeninduskeskusesse kontrolli ja/või remondiks.
• Do not use outdoors. This heater is designed for indoor use in appropriate environments.
• To disconnect heater, turn controls to off, then turn off power to heater circuit at main disconnect panel.
• Ärge sisestage ventilatsiooni- või väljatõmbeavasse ega laske võõrkehadel sattuda, kuna see võib põhjustada elektrilöögi või tulekahju või kahjustada kütteseadet.
• Võimaliku tulekahju vältimiseks ärge mingil viisil blokeerige õhu sisse- ega väljalaskeavasid.
• Küttekeha sees on kuumad ja kaar- või sädemeid tekitavad osad. Ärge kasutage seda kohtades, kus kasutatakse või hoitakse bensiini, värvi või tuleohtlikke aure või vedelikke.
• Kasutage seda kütteseadet ainult selles juhendis kirjeldatud viisil. Mis tahes muu kasutamine, mida tootja ei soovita, võib põhjustada tulekahju, elektrilöögi või inimeste vigastusi.
• Ühendage alati korralikult maandatud pistikupesaga.
• Professional installation by a qualified electrician is highly recommended for this unit.

3. Toote omadused

The Marley MWUH5004 unit heater is engineered for robust performance and versatility:

• Tugev konstruktsioon: Designed for demanding environments like garages, workshops, and basements, offering a durable heating solution.
• Voltage Ühilduvus: Fully compatible with both 208V and 240V electrical systems, providing flexible installation options.
• Muutuv vatttage (Select Models): Allows adjustment of heat output to match specific heating requirements, optimizing energy use.
• Reguleeritavad lamellid: Direct heat precisely where needed, enabling efficient heating of targeted areas and adaptability to changing needs.
• Paindlik paigaldus: Equipped with a built-in bracket for both vertical (downflow) and horizontal mounting, maximizing space utilization and installation flexibility.
• Automaatne ventilaatori viivitus: Ensures uniform air discharge and efficient heat distribution.

4. Pakendi sisu

Lahtipakkimisel veenduge, et kõik komponendid on olemas ja kahjustamata:

• Marley MWUH5004 Unit Heater
• Integreeritud kinnitusklamber
• Kasutusjuhend (see dokument)

If any parts are missing or damaged, do not attempt to install or operate the heater. Contact Marley customer support immediately.

5. Paigaldamine

TÄHTIS: Installation must be performed by a qualified electrician in accordance with all local and national electrical codes. Ensure power is disconnected at the main circuit breaker before beginning any installation work.

5.1 Saidi valik

• Choose a location that allows for proper air circulation and is free from obstructions.
• Maintain a minimum clearance of 3 feet (0.9 m) from combustible materials (walls, furniture, curtains, etc.) to the front, sides, and top of the heater.
• Ensure the mounting surface is structurally sound and capable of supporting the heater's weight (approximately 25 lbs).

5.2 Paigaldusvalikud

The MWUH5004 heater features an integrated bracket for flexible mounting:

• Horisontaalne paigaldus: Ideal for directing heat across a wide area. The bracket allows the heater to be angled for optimal heat distribution.
• Vertical (Downflow) Mounting: Suitable for concentrated heating directly below the unit.

Securely fasten the mounting bracket to the chosen surface using appropriate hardware (not included). Ensure the heater is level and stable after mounting.

5.3 Elektriühendus

• This heater requires a dedicated 208V or 240V electrical circuit.
• Consult the wiring diagram provided with the unit for specific connection details.
• Veenduge, et kõik juhtmestiku ühendused on tihedad ja kindlad.
• The heater must be properly grounded to prevent electrical shock.

6. Operatsioon

Once installed and connected to power, operate your Marley unit heater as follows:

6.1 Sisse-/väljalülitamine

Turn on the circuit breaker supplying power to the heater. The heater will typically have a built-in thermostat or control switch. Set the control switch to the "ON" position to activate the heater.

6.2 Temperatuuri seadistamine

Adjust the thermostat dial to your desired temperature. The heater will cycle on and off to maintain the set temperature. For initial heating, set the thermostat to its highest setting, then reduce it once the room reaches a comfortable temperature.

6.3 Adjusting Louvers

Manually adjust the louvers on the front of the heater to direct the airflow. This allows you to aim the heat towards specific areas or distribute it more broadly throughout the space.

Image 6.1: Adjustable Louvers. This close-up view highlights the adjustable fins on the heater's front, which can be manually positioned to control airflow direction.

6.4 Variable Wattage (If Applicable)

If your model features variable wattage, refer to the specific controls on your unit to select the desired heat output level (e.g., 3000W, 4000W, 5000W). This allows for energy savings when full heating capacity is not required.

7. Hooldus

Regulaarne hooldus tagab kütteseadme optimaalse jõudluse ja pikaealisuse. Enne hooldustööde tegemist ühendage alati peakaitselülitist toide lahti.

• Puhastamine: Puhastage kütteseadme välispinda regulaarselt pehme lapigaamp lapiga. Ärge kasutage abrasiivseid puhastusvahendeid ega lahusteid. Veenduge, et niiskus ei satuks sisemistesse komponentidesse.
• Õhu sisselaske-/väljalaskeava: Keep the air intake and exhaust openings free from dust, lint, and other obstructions. Use a vacuum cleaner with a brush attachment to gently remove debris.
• Ülevaatus: Annually inspect the power cord (if applicable) and electrical connections for any signs of wear, damage, or loose connections. If any issues are found, contact a qualified electrician for repair.
• Kasutaja poolt hooldatavaid osi pole: This heater contains no user-serviceable parts. Do not attempt to open or repair the unit yourself. Refer all servicing to qualified service personnel.

8. Veaotsing

Enne klienditoega ühenduse võtmist vaadake üleview järgmised levinud probleemid ja lahendused:

If the problem persists after attempting these solutions, disconnect power to the heater and contact Marley customer support or a qualified electrician.

9. Tehnilised andmed

10. Garantii ja tugi

Marley products are manufactured to high-quality standards. For specific warranty information regarding your MWUH5004 unit heater, please refer to the warranty card included with your purchase or visit the official Marley webveebisait. Hoidke ostutšekk ostutõendina garantiinõuete korral.

For technical assistance, troubleshooting beyond this manual, or to inquire about replacement parts, please contact Marley customer support. Contact information can typically be found on the manufacturer's webveebilehel või toote pakendil.

Marley Official Websait: www.marleymeh.com
