Olulised ohutusjuhised
Please read these instructions carefully before installation and use. Keep this manual for future reference. Incorrect installation or use may cause damage to the product or injury.
- Enne kokkupanekut veenduge, et kõik komponendid on olemas ja kahjustamata.
- Ärge ületage kinnituse maksimaalset kandevõimet.
- Kasutage paigaldamiseks sobivaid tööriistu.
- If you are unsure about any part of the installation, seek professional assistance.
- Paigaldamise ajal hoidke lapsed ja lemmikloomad eemal.
- Kontrollige regulaarselt kõigi ühenduste ja kinnitusdetailide tihedust.
Toode läbiview

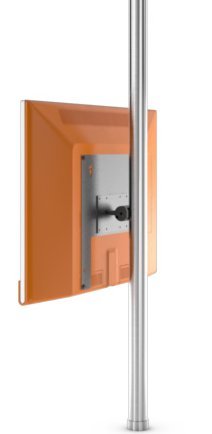

Image showing the Loewe Screen LIFT PLUS (65486B10) TV mount, designed for floor mounting. This image illustrates the overall design and structure of the product.
The Loewe Screen LIFT PLUS (65486B10) is a floor-standing mount designed to securely hold compatible Loewe televisions. It offers a stable and elegant solution for positioning your display.
Pakendi sisu
Before proceeding with the installation, please verify that all the following components are included in your package:
- Loewe Screen LIFT PLUS main assembly
- Mounting hardware kit (screws, washers, spacers)
- Kokkupanekujuhised (käesolev juhend)
- Tools required for assembly (not included): Phillips head screwdriver, Allen wrench set, level.
Seadistamine ja installimine
1. Lahtipakkimine ja ettevalmistamine
- Eemaldage ettevaatlikult kõik komponendid pakendist.
- Asetage kõik osad kriimustuste vältimiseks pehmele ja puhtale pinnale.
- Identify all components against the package contents list.
2. Assembling the Floor Stand
Follow the diagrams provided in the separate assembly guide (if applicable) to connect the base to the main support column. Ensure all screws are tightened securely but do not overtighten.
3. Attaching the VESA Mount to the TV
This mount supports VESA 75 x 75 standard. Refer to your television's manual for specific VESA mounting hole locations.
- Asetage teler ettevaatlikult pehmele ja puhtale pinnale, ekraaniga allapoole.
- Align the VESA mounting plate from the Screen LIFT PLUS with the mounting holes on the back of your TV.
- Secure the mounting plate using the appropriate screws and washers from the hardware kit. Ensure a snug fit without overtightening.
4. Mounting the TV onto the Stand
- With assistance, carefully lift the television with the attached VESA plate.
- Hook the VESA plate onto the corresponding bracket on the Screen LIFT PLUS stand.
- Secure the TV to the stand using the provided locking mechanism or screws, as detailed in the assembly guide.
- Ensure the TV is level and securely attached before releasing seda.
Kasutusjuhised
The Loewe Screen LIFT PLUS is primarily a static floor mount. Once installed, its operation involves ensuring the television is securely positioned.
- Positsioneerimine: Place the assembled unit in your desired viewing location. Ensure it is on a stable, level surface.
- Kaabli haldamine: Utilize any integrated cable management features of the stand to route power and signal cables neatly and safely.
Hooldus
Regular maintenance ensures the longevity and safety of your Loewe Screen LIFT PLUS.
- Puhastamine: Wipe the stand with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- Kinnitusvahendite kontroll: Kontrollige regulaarselt kõiki kruvisid ja polte, et need oleksid kindlalt kinni. Vajadusel pingutage uuesti.
- Stabiilsuskontroll: Ensure the stand remains stable and level. If it appears wobbly, re-check the assembly.
Veaotsing
See jaotis käsitleb levinud probleeme, millega võite kokku puutuda.
| Probleem | Võimalik põhjus | Lahendus |
|---|---|---|
| Alus on kõikuv. | Lahtised kinnitusdetailid; ebatasane põrand. | Ensure all screws are tightened. Move to a level surface or use shims under the base. |
| TV not securely attached. | Incorrect VESA plate attachment; locking mechanism not engaged. | Re-check VESA plate installation on TV. Ensure TV is properly hooked onto the stand and locking screws are tightened. |
| Scratches on TV during installation. | Lack of protective surface. | Always place TV face down on a soft, clean blanket or cloth during assembly. |
Tehnilised andmed
- Mudel: Loewe Screen LIFT PLUS (65486B10)
- Osa number: 65486B10
- Paigaldustüüp: Põranda kinnitus
- Maximum VESA Standard: VESA 75 x 75
- Ühilduvad seadmed: Loewe Individual 40 Compose, Loewe Individual 46 Compose
- Ekraani suuruse ühilduvus: Up to 46 Inch (as per compatible devices)
- Kaasas olevad patareid: Ei
- Esimene saadaolev kuupäev: 15. jaanuar 2020
Garantii ja tugi
For warranty information and technical support, please refer to the documentation provided with your original purchase or visit the official Loewe webveebisait. Hoidke ostutõendit garantiinõuete esitamiseks.
Tootja: Loewe
Websait: www.loewe.tv
