1. Sissejuhatus
The Generic S1 Ultra-Thin Bluetooth Pillow Speaker is designed to provide a comfortable and private audio experience for sleeping. Its slim profile allows it to be placed under a pillow, delivering clear sound directly to the user without disturbing others. This manual provides detailed instructions for setup, operation, and maintenance to ensure optimal performance and longevity of your device.
Image: The S1 Bluetooth Pillow Speaker positioned under a pillow, demonstrating its intended use for private listening during sleep. The image highlights the speaker's ultra-thin design and the concept of soft volume for auditory health.
2. Ohutusalane teave
- Ärge jätke seadet äärmuslike temperatuuride või niiskuse kätte.
- Keep the device away from water and other liquids. It is not water-resistant.
- Ärge proovige seadet ise lahti võtta ega parandada. Pöörduge kvalifitseeritud hooldustöötaja poole.
- Laadimiseks kasutage ainult kaasasolevat USB-laadimiskaablit.
- Avoid placing heavy objects directly on the speaker.
- Ensure the speaker is placed securely under the pillow to prevent accidental displacement during sleep.
- Listen at appropriate volume levels to prevent hearing damage.
3. Mis on karbis
Palun kontrollige pakendi sisu lahtipakkimisel:
- S1 Bluetooth Pillow Speaker
- USB laadimiskaabel
- Kasutusjuhend
4. Toote lõppview
The S1 Pillow Speaker features an ultra-thin design with intuitive controls for easy operation. It includes a power button, volume controls, and a timer function.
Pilt: detailne view of the S1 Bluetooth Pillow Speaker's control panel, showing the Power Button/White Noise, Next Track/Volume +, and Volume-/Timer buttons, along with LED indicators for the three-stage timer (30/60/90 minutes).
Juhtnupud ja indikaatorid:
- Power Button / White Noise: Press and hold to power on/off. Short press to cycle through white noise modes.
- Next Track / Volume +: Lühike vajutus järgmise loo avamiseks. Pikk vajutus helitugevuse suurendamiseks.
- Volume - / Timer: Short press to decrease volume. Long press to cycle through timer settings (30/60/90 minutes).
- LED indikaatorid: Display power status, charging status, and active timer setting.
5. Seadistamine
5.1 Kõlari laadimine
Before first use, fully charge the speaker. Connect the provided USB charging cable to the Type-C port on the speaker and to a USB power adapter (not included) or a computer USB port. The LED indicator will show charging status and turn off when fully charged. A full charge takes approximately 2 hours and provides up to 10 hours of playback.
Pilt: Lähivõte view of the S1 Bluetooth Pillow Speaker, highlighting its Type-C charging port and indicating a built-in 300mAh battery for long-lasting listening.
5.2 Bluetoothi sidumine
- Toide sisse: Press and hold the Power button until the LED indicator flashes, indicating it's in pairing mode.
- Bluetoothi lubamine: Avage oma nutitelefonis, tahvelarvutis või muus Bluetooth-toega seadmes Bluetoothi sätted ja veenduge, et Bluetooth oleks sisse lülitatud.
- Valige seade: Look for "S1 Pillow Speaker" (or similar name) in the list of available devices and select it to pair.
- Kinnitus: Once paired, the LED indicator on the speaker will stop flashing and remain solid, and you will hear an audible confirmation.
Kõlar loob sisselülitamisel automaatselt uuesti ühenduse viimase seotud seadmega, kui seade on leviala piires ja Bluetooth on lubatud.
Image: A visual representation of the S1 Bluetooth Pillow Speaker connecting to a smartphone, emphasizing its Bluetooth 5.4 technology for fast and stable connections, enabling diverse usage scenarios.
6. Kasutusjuhised
6.1 Placing the Speaker
For optimal sound and privacy, place the S1 Pillow Speaker directly under your pillow. The ultra-thin design ensures comfort and allows the sound to be transmitted effectively through the pillow, creating a personal audio zone.
Image: The S1 Bluetooth Pillow Speaker placed under a pillow next to a sleeping person, illustrating how it creates a private sleep oasis by transmitting sound without disturbing others.
Video: A demonstration of the S1 Bluetooth Pillow Speaker's unique sound conduction. The video shows the speaker playing music with no audible sound when held in the hand, but becoming clear when placed under a pillow, highlighting its private listening capability.
6.2 Heli taasesitus
- Esita/peata: Juhtige taasesitust otse ühendatud seadmest.
- Helitugevuse reguleerimine: Long press the "Volume +" button to increase volume. Long press the "Volume -" button to decrease volume.
- Raja navigeerimine: Short press the "Next Track" button to skip to the next audio track.
6.3 White Noise Function
The speaker includes built-in white noise sounds to aid in relaxation and sleep. Short press the Power button to cycle through available white noise options (e.g., ocean waves, babbling brooks, forest birdsong).

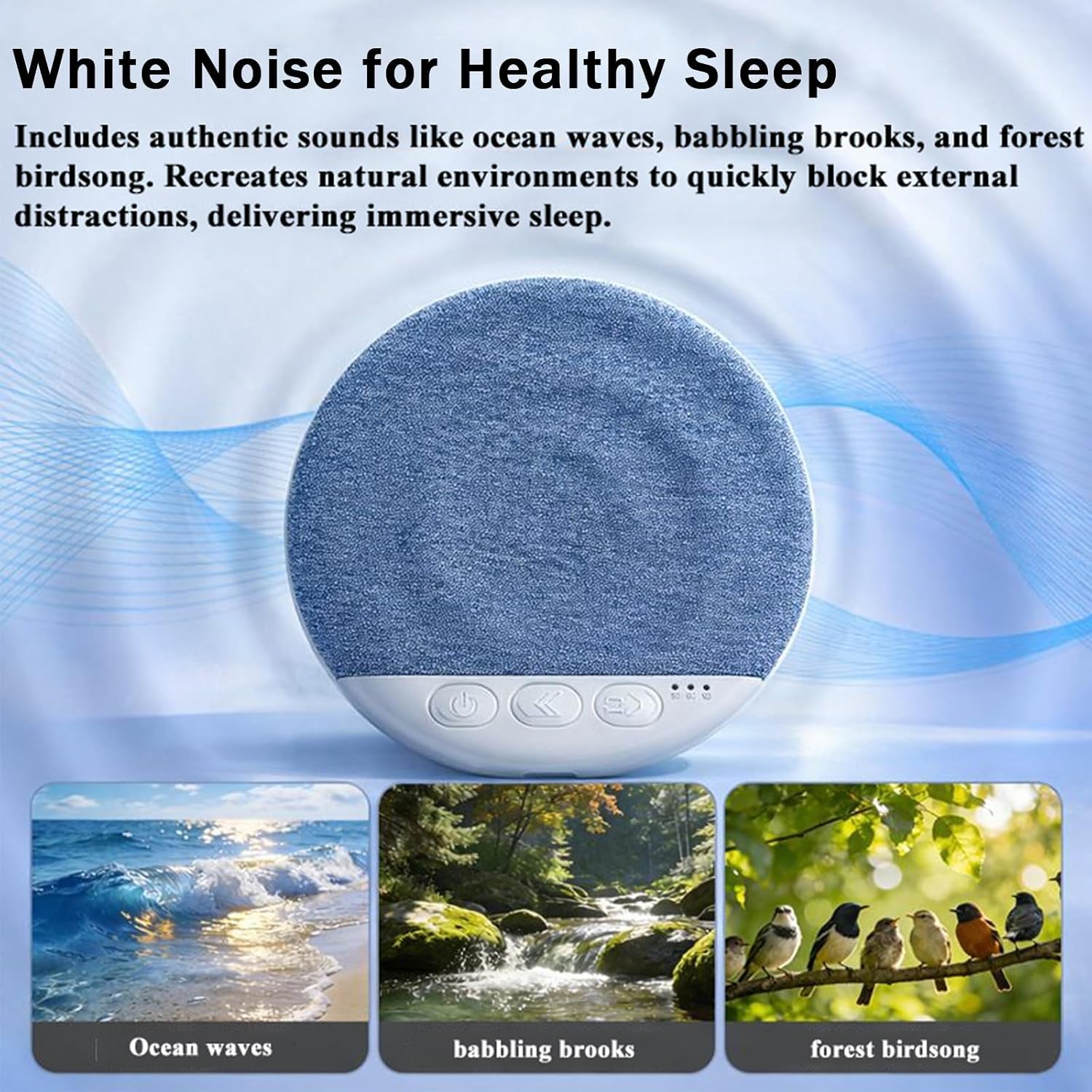

Image: The S1 Bluetooth Pillow Speaker showcasing its white noise feature, with visual representations of natural sounds such as ocean waves, babbling brooks, and forest birdsong, designed to block distractions and promote healthy sleep.
6.4 Unetaimer
To conserve battery and ensure uninterrupted sleep, the speaker features a three-stage timer. Long press the "Volume -" button to activate and cycle through the timer settings: 30 minutes, 60 minutes, and 90 minutes. The corresponding LED indicator will light up to show the active timer. The speaker will automatically power off once the set time has elapsed.
7. Hooldus
- Puhastamine: Wipe the speaker with a soft, dry cloth. Do not use liquid cleaners or abrasive materials.
- Hoiustamine: Kui kõlarit ei kasutata, hoidke seda jahedas ja kuivas kohas.
- Aku hooldus: Aku tööea pikendamiseks vältige aku sagedast täielikku tühjendamist. Laadige seadet regulaarselt, isegi kui seda pidevalt ei kasutata.
8. Veaotsing
| Probleem | Võimalik põhjus | Lahendus |
|---|---|---|
| Kõlarist ei kostu heli. | Speaker is off, not paired, or volume is too low. | Ensure speaker is powered on and paired. Increase volume on both speaker and connected device. Place speaker under pillow for optimal sound. |
| Seadmega ei saa siduda. | Bluetooth is off, speaker is out of range, or already paired to another device. | Ensure Bluetooth is enabled on your device. Bring speaker closer to your device. Disconnect from other devices or restart speaker and try pairing again. |
| Kõlar ei lae. | Vigane kaabel, toiteallikas või laadimisport. | Check the USB cable and power adapter. Try a different USB port or power source. Ensure the cable is securely connected. |
| Sound quality is poor or static. | Interference, low battery, or improper placement. | Move away from other electronic devices. Charge the speaker fully. Adjust speaker position under the pillow. |
9. Tehnilised andmed
| Funktsioon | Detail |
|---|---|
| Kaubamärk | Üldine |
| Mudel | S1 Bluetooth Pillow Speaker |
| Bluetoothi versioon | Bluetooth 6 (Note: Product description states Bluetooth 6, while an image indicates Bluetooth 5.4. We defer to the product description.) |
| Ühenduvustehnoloogia | Bluetooth, traadita |
| Kõlari tüüp | Ultra-thin, Pillow Speaker |
| Aku tüüp | Laetav liitiumaku (300 mAh) |
| Aku tööiga | Kuni 10 tundi (pidev taasesitus) |
| Laadimisaeg | Umbes 2 tundi |
| Laadimisport | Tüüp-C |
| Maksimaalne väljundvõimsus | 5 vatti |
| Sagedusvastus | 20 Hz |
| Heliväljundi režiim | Stereo, 360-degree Stereo |
| Veekindlus | Ei ole veekindel |
| Kauba kaal | 12 untsi |
| Kauba mõõtmed (P x L x K) | 4"D x 4.5"W x 5"H (Note: These dimensions may refer to packaging or overall product family, as the speaker itself is ultra-thin.) |
| Kontrollimeetod | Puudutage |
| Sisseehitatud meedia | White Noise Timer |
10. Garantii teave
This product comes with a Limited Manufacturer Warranty. For specific details regarding warranty coverage, duration, and claims process, please refer to the documentation provided with your purchase or contact the seller directly. The product data indicates "no" for a detailed warranty description, suggesting general manufacturer terms apply. Please retain your proof of purchase for any warranty claims.
11. Klienditugi
For any questions, technical assistance, or support regarding your Generic S1 Bluetooth Pillow Speaker, please contact the seller or retailer from whom you purchased the product. They will be able to provide the most accurate and up-to-date support information.
Seller: ChunjiangYuanjiu
