Philips Baristina Espresso Machine (BAR300/00) User Manual

1. Toote lõppview

The Philips Baristina Espresso Machine is designed for simple, fresh espresso preparation. It integrates grinding, tamping, and brewing into a single, streamlined process, utilizing a 16-bar pressure pump for optimal flavor extraction. Its compact design makes it suitable for various kitchen spaces.

Peamised omadused:

• Integreeritud veski: Freshly grinds whole coffee beans for each brew.
• 16-baarise pumba rõhk: Ensures robust flavor extraction for authentic espresso.
• One-Swipe Operation: Simplifies the brewing process from bean to cup in under 60 seconds.
• Kompaktne disain: Space-efficient for any kitchen counter.
• Adjustable Brews: Offers Espresso, Lungo, and Extra Intense options.

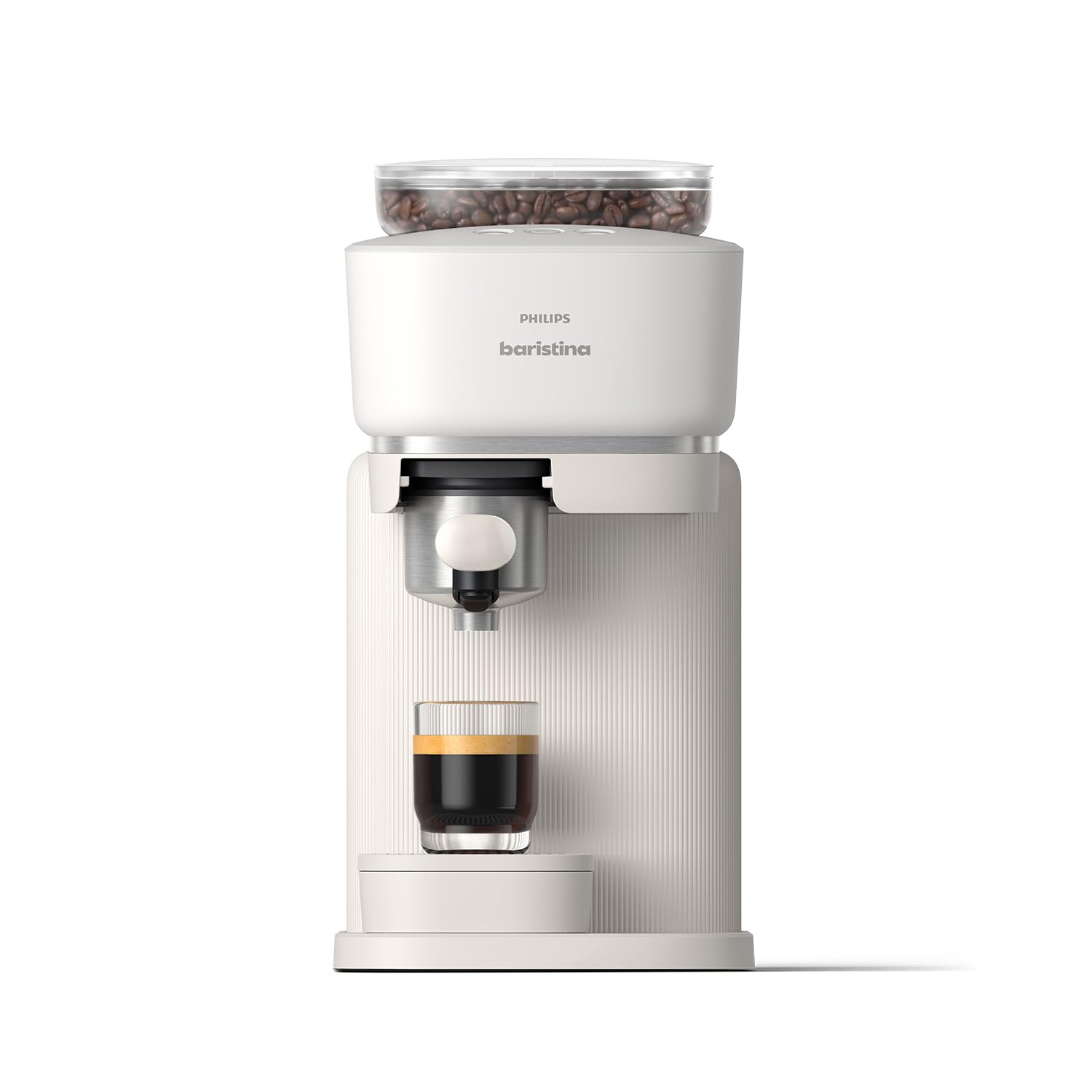

Figure 1: Philips Baristina Espresso Machine (BAR300/00)

2. Seadistamine

2.1 Lahtipakkimine ja paigutamine

Eemaldage ettevaatlikult kõik pakkematerjalid. Asetage masin stabiilsele ja tasasele pinnale, eemale soojusallikatest ja otsesest päikesevalgusest. Tagage seadme ümber piisav ventilatsioon.

Figure 2: Product Dimensions (14.96"D x 7.09"W x 13.58"H)

2.2 Esialgne loputustsükkel

Before first use, perform an initial rinse cycle to clean the internal components. This ensures optimal taste and hygiene.

1. Sisestage portafilter masinasse.
2. Eemaldage veepaak masina küljelt.
3. Fill the water tank with fresh, cold water up to the MAX level. Reinsert the water tank securely.
4. Place a large cup or coffee mug under the water spout.
5. Press and hold the Boost button (middle button with coffee beans and a plus sign) for 5 seconds to initiate the rinse cycle.
6. Wait until the boost light stops blinking and the water has dispensed.
7. Rinse the portafilter under running water while pressing the puck removal button several times to clear any residue.

3. Kasutusjuhised

3.1 Kohviubade anuma täitmine

Open the lid of the bean container located on top of the machine. Pour fresh, whole coffee beans into the container. Ensure the lid is securely closed after filling.

3.2 Espresso või lungo valmistamine

The Baristina machine simplifies brewing with its integrated grind, tamp, and brew function.

1. Veenduge, et veepaak on täidetud ja oamahutis on piisavalt ube.
2. Insert the clean portafilter into the machine.
3. Place your cup under the coffee spout.
4. Select your desired brew:
• Press the left button for Espresso (standard shot).
• Press the right button for Lungo (longer Italian-style mini-Americano).
• An Extra Intense brew, press the middle button (coffee beans with a plus sign).
5. The machine will automatically grind, tamp, and brew your coffee. The handle will move to the right and then return to its start position once brewing is complete.
6. Nautige oma värskelt valmistatud kohvi.

Figure 3: Grind, Tamp & Brew in One Swipe

Figure 4: The Baristina's integrated system ensures ideal grind size, precise pressure, and accurate dosing.

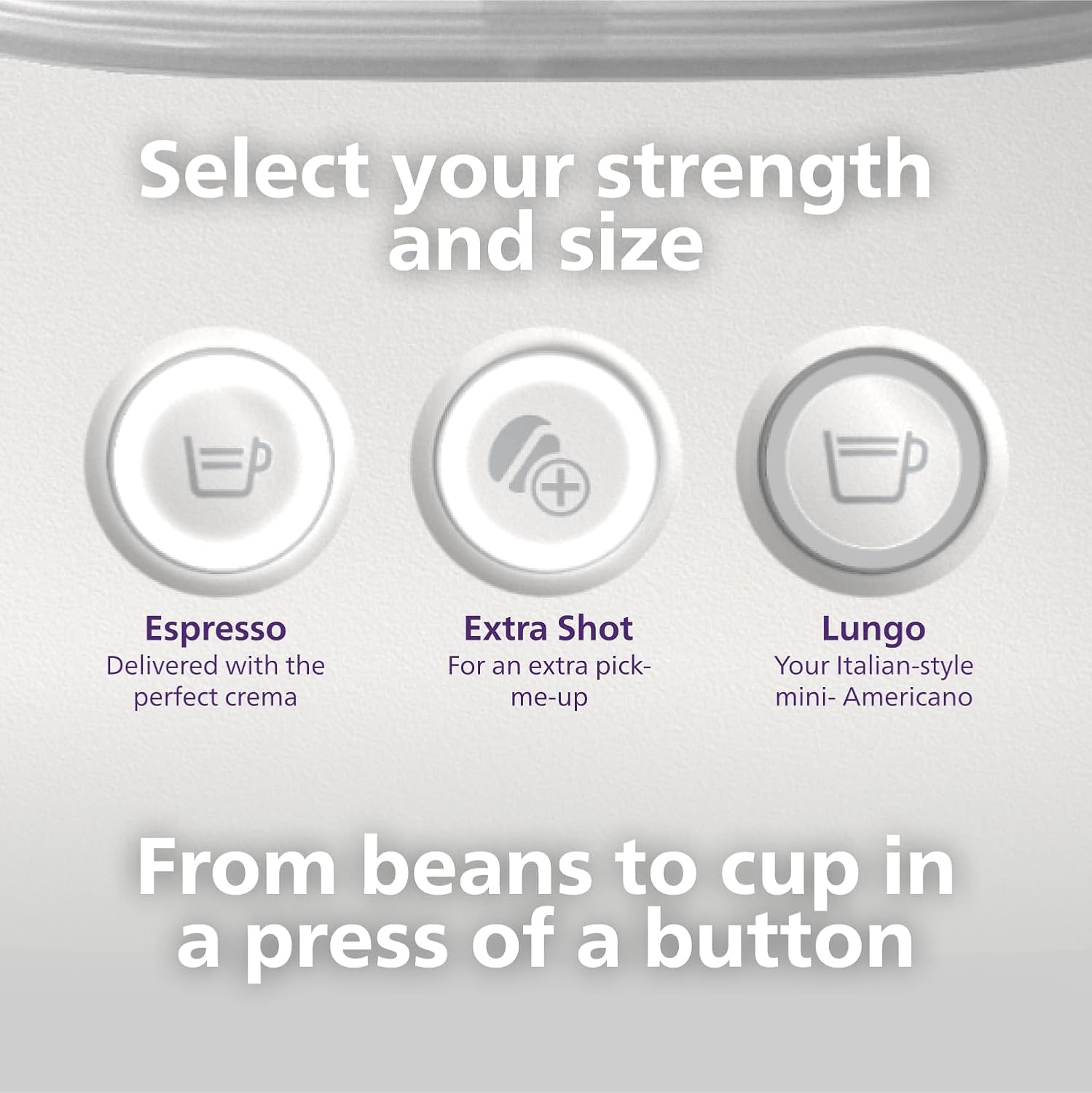

Figure 5: Select your desired strength and size from the control panel.

Figure 6: Swipe the handle to brew and enjoy.

4. Hooldus

4.1 Emptying and Cleaning the Portafilter

For best results and to prevent clogging, empty and rinse the portafilter after every brew.

1. After brewing, remove the portafilter from the machine.
2. Press the puck removal button to release the used coffee grounds (puck).
3. Rinse the portafilter under running water. You can also wipe it with a cloth.

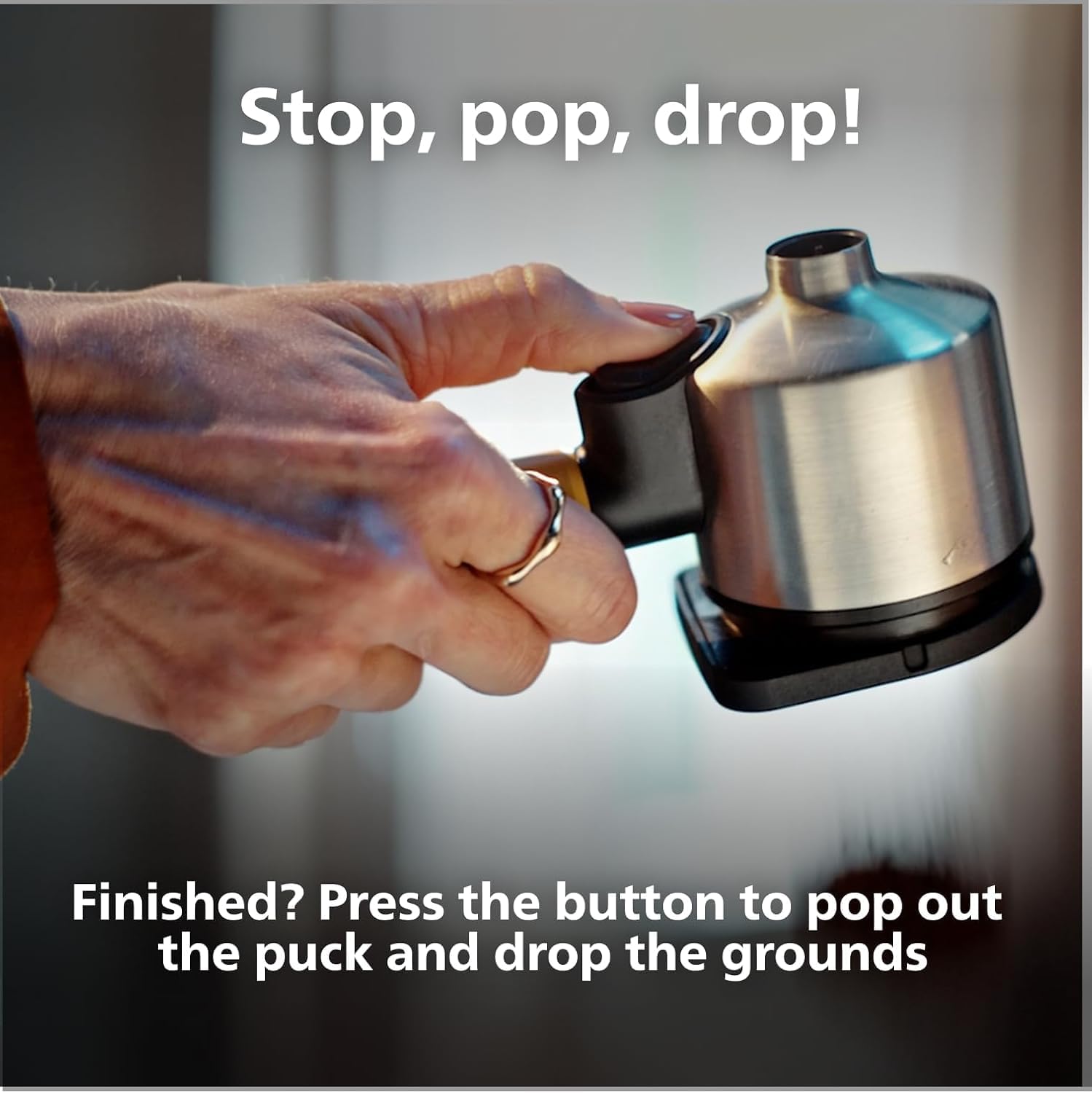

Figure 7: Stop, Pop, Drop! Press the button to release the coffee puck.

Figure 8: Used coffee grounds can be composted, reducing waste.

4.2 Üldpuhastus

Pühkige masina välispinda kuulutusegaamp cloth. The drip tray should be emptied and cleaned regularly. Do not immerse the machine in water.

5. Veaotsing

If you encounter issues with your Philips Baristina Espresso Machine, please refer to the following common solutions:

• Kohvi ei väljastata: Check if the water tank is filled and correctly inserted. Ensure the portafilter is properly seated.
• Nõrk kohv: Verify that the bean container has enough fresh coffee beans. Ensure the machine has completed its grinding and tamptsükkel.
• Masin ei lülitu sisse: Kontrollige, kas toitejuhe on kindlalt töötavasse pistikupessa ühendatud.
• Lekkimine: Ensure all removable parts, especially the water tank and portafilter, are correctly positioned and sealed.
• Ebatavaline müra: This may indicate a need for descaling or a blockage in the grinder. Refer to the full manual for descaling instructions.

For more detailed troubleshooting or persistent issues, please contact Philips customer support.

6. Tehnilised andmed

7. Garantii ja tugi

This Philips Baristina Espresso Machine comes with a standard manufacturer's warranty. For specific warranty details, registration, or to access customer support, please refer to the documentation included with your product or visit the official Philips website. For any technical assistance or service inquiries, please contact Philips customer service directly.

Optional protection plans are available for purchase separately, offering extended coverage beyond the manufacturer's warranty. These plans typically cover mechanical and electrical failures.
