Atosa Commercial Undercounter Freezer 4.8 cu. ft.

1. Oluline ohutusteave

Read all instructions thoroughly before operating this appliance to prevent injury or damage. Keep this manual for future reference.

• Elektriohutus: Ensure the freezer is connected to a properly grounded 115V/60Hz/1-ph electrical outlet with a NEMA 5-15P plug. Do not use extension cords or adapter plugs.
• Ventilatsioon: Maintain adequate clearance around the unit for proper airflow and heat dissipation. Blocked vents can lead to overheating and reduced efficiency.
• Tuleohtlik külmutusagens: This unit uses R290 Hydrocarbon refrigerant. Handle with care and ensure proper ventilation during servicing. Do not puncture the refrigerant circuit.
• Raske seade: The unit weighs approximately 137 pounds. Use appropriate lifting techniques and assistance during unpacking and installation to prevent injury.
• Puhastamine: Enne puhastamist või hooldustööde tegemist ühendage seade vooluvõrgust lahti.

2. Toote lõppview

The Atosa Undercounter Freezer (Model MGF24FGR) is a commercial-grade, one-section reach-in unit designed for efficient frozen storage. It features a durable stainless steel construction and precise temperature control.

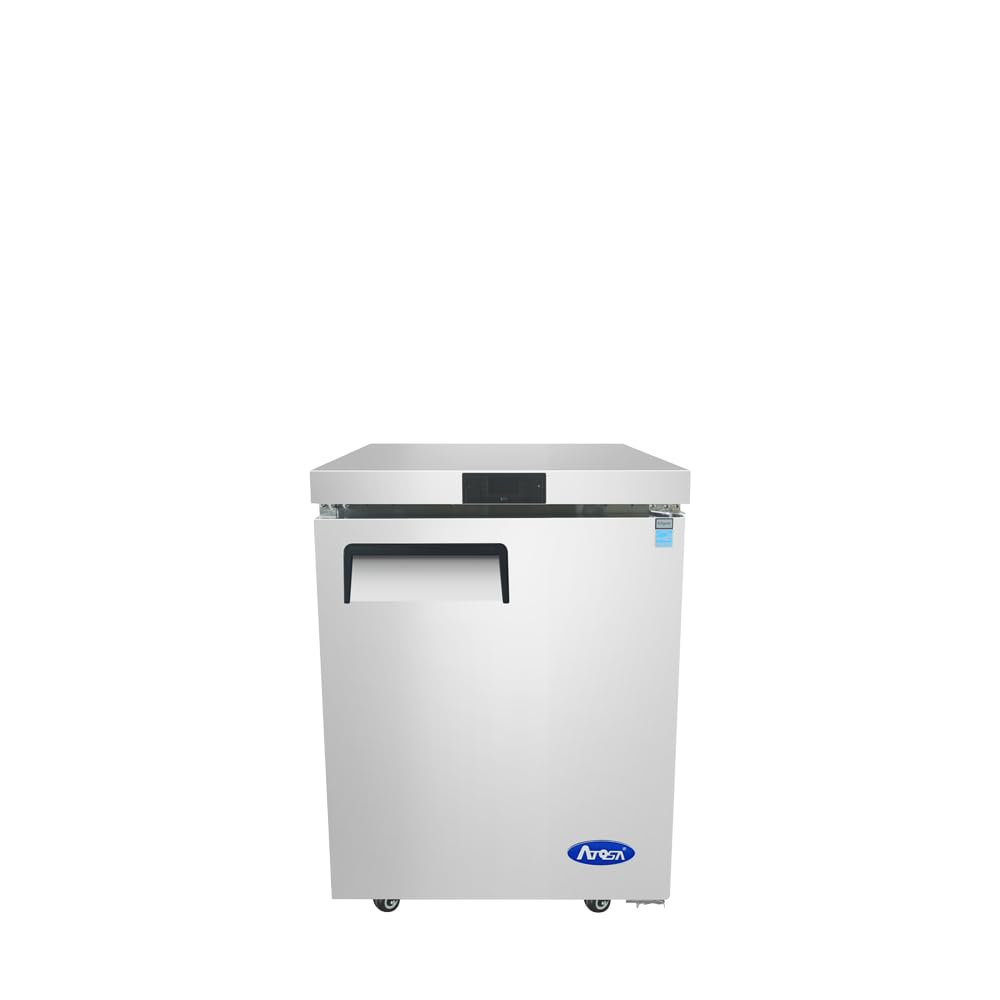

Pilt 2.1: esikülg view of the Atosa Commercial Undercounter Freezer. This image shows the compact design and stainless steel finish of the unit, suitable for undercounter placement.

Peamised omadused:

• Mahutavus: 4.8 cu. jalga
• Ehitus: Stainless steel interior and exterior, galvanized steel back.
• Jahutussüsteem: Rear-mounted, self-contained, with R290 Hydrocarbon refrigerant.
• Temperatuuri kontroll: Digital, maintaining -8°F to 0°F.
• Riiulid: Two adjustable shelves for flexible storage.
• Sulatamine: Automatic evaporation and electric defrost.
• Liikuvus: Equipped with 2-inch casters.

3. Lahtipakkimine ja paigaldamine

3.1 Lahtipakkimine

1. Carefully remove all packaging materials, including tape and protective film.
2. Inspect the freezer for any shipping damage. Report any damage to the carrier immediately.
3. Remove any internal packing materials and accessories.

3.2 Paigutus

• Place the freezer on a strong, level surface capable of supporting its weight (approximately 137 lbs when empty, more when loaded).
• Ensure adequate clearance for ventilation: at least 4 inches from walls and other appliances on all sides (rear, top, and sides).
• Vältige otsest päikesevalgust, soojusallikaid või kõrge õhuniiskusega alasid.
• The 2-inch casters allow for easy repositioning; ensure they are locked once the unit is in its final location.

3.3 Elektriühendus

• Connect the freezer to a dedicated 115V/60Hz/1-ph grounded electrical outlet.
• The unit draws 2.4 amps and is equipped with a NEMA 5-15P plug.
• Do not use multi-outlet adapters or extension cords.

4. Seadistamine

4.1 Esmane sisselülitamine

1. After positioning and connecting to power, allow the unit to stand for at least 2 hours before turning it on. This allows the refrigerant to settle.
2. Plug in the freezer. The digital display should illuminate.
3. Allow the freezer to run empty for 24 hours to reach its set temperature before loading with products.

4.2 Installing and Adjusting Shelves

• The freezer comes with two adjustable shelves.
• Locate the shelf clips on the interior side walls. Insert the clips at the desired height.
• Place the shelves onto the clips, ensuring they are level and securely seated.
• Adjust shelf positions as needed to accommodate different product sizes.

5. Kasutusjuhised

5.1 Digitaalne temperatuuri reguleerimine

• The freezer is equipped with a digital temperature controller, typically located on the front panel.
• The default temperature range is -8°F to 0°F.
• Refer to the specific controller's manual (if provided separately) for detailed instructions on setting and adjusting the temperature. Generally, there are 'SET' and arrow buttons to modify the desired temperature.
• Avoid frequent door openings to maintain consistent internal temperatures and energy efficiency.

5.2 Automatic Evaporation and Electric Defrost

• This freezer features an automatic evaporation system for condensate water, eliminating the need for manual draining.
• Electric defrost cycles are automatically initiated by the controller to prevent ice buildup on the evaporator coil. During a defrost cycle, the internal temperature may temporarily rise slightly, which is normal.

6. Hooldus

Regular maintenance ensures optimal performance and extends the lifespan of your freezer. Always disconnect power before cleaning or servicing.

6.1 Sisepuhastus

• Clean the interior regularly with a mild soap and warm water solution.
• Loputage hoolikalt puhta veega ja kuivatage pehme lapiga.
• Ärge kasutage abrasiivseid puhastusvahendeid, terasvilla ega karme kemikaale, kuna need võivad roostevabast terasest viimistlust kahjustada.

6.2 Välispuhastus

• Pühkige roostevabast terasest välispind pehme lapiga ja mitteabrasiivse roostevabast terasest puhastusvahendiga.
• For galvanized steel back, a damp riidest piisab.

6.3 Kondensaatori mähise puhastamine

• The condenser coil, located at the rear of the unit, should be cleaned every 30 days or more frequently in dusty environments.
• Katkestage toide.
• Kondensaatori ribidelt tolmu ja prahi eemaldamiseks kasutage jäika harja või harjaotsakuga tolmuimejat.
• A dirty condenser coil reduces cooling efficiency and increases energy consumption.

6.4 Uksetihendi hooldus

• Kontrollige regulaarselt uksetihendeid pragude või rebendite suhtes.
• Clean gaskets with mild soap and water to ensure a tight seal. A poor seal can lead to temperature fluctuations and increased energy use.

7. Veaotsing

Enne teenindusega ühenduse võtmist vaadake üleview need levinud probleemid ja lahendused.

8. Tehnilised andmed

9. Garantii ja tugi

For specific warranty details, please refer to the warranty card included with your purchase or contact your authorized Atosa dealer. Warranty terms typically cover manufacturing defects for a specified period from the date of purchase.

For technical support, parts, or service inquiries, please contact your product supplier or an authorized Atosa service center. Ensure you have your model number (MGF24FGR) and serial number available when contacting support.
