Instruction Manual for Generic Steel Core Right Hinge 3T17

Sissejuhatus

This manual provides instructions for the installation and maintenance of the Steel Core Right Hinge 3T17, designed as a direct replacement for the right-side hinge on Rubbermaid 6 ft. x 5 ft. Slide-Lid Resin Sheds (Shed Part # 5L40, Model # 1800005). This upgraded hinge features a steel-reinforced design for enhanced durability compared to original plastic components.

It is crucial to verify that your shed model matches the compatible model specified to ensure proper fit and function. This hinge is specifically for the right side of the shed door and will not work in other applications.

Toode läbiview

The Steel Core Right Hinge 3T17 is engineered for strength and longevity. It is constructed from a less brittle plastic and incorporates steel reinforcements in critical stress areas. This design aims to provide a more robust solution for the high-stress application of shed door hinges.

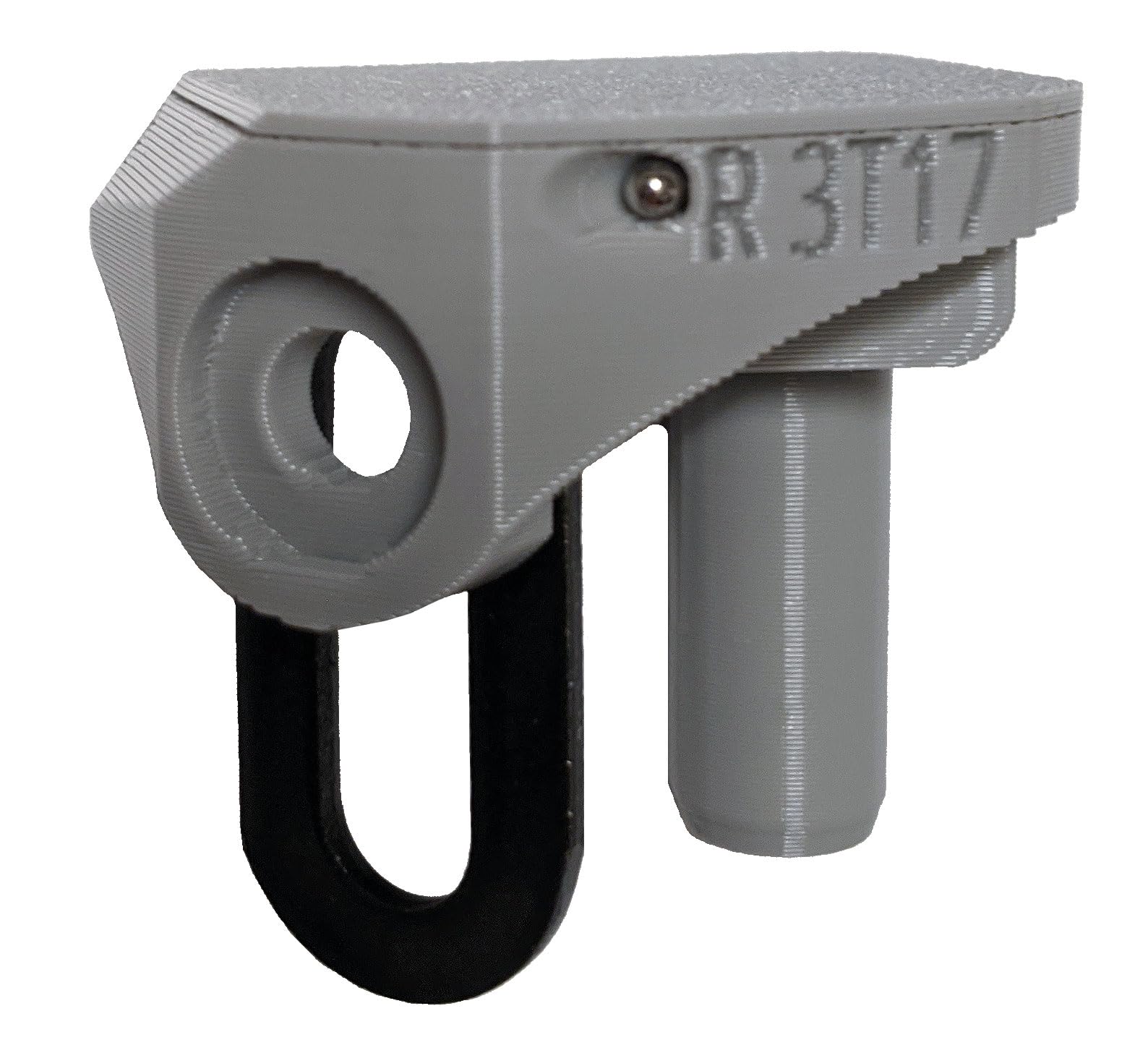

Image: Close-up of the Steel Core Right Hinge 3T17, highlighting its steel-reinforced design.

This replacement hinge is designed to replace original part numbers such as 3T17, 3T17 2, and 3T17 3. Ensure your existing hinge matches the design shown for compatibility.

Pilt: ntample of the original hinge design that this product replaces.

Ühilduvus

This hinge is specifically designed for the parem pool of the Rubbermaid 6 ft. x 5 ft. Slide-Lid Resin Shed, identified by Shed Part # 5L40, Internet # 203137956, and Model # 1800005. It replaces original hinge part numbers 3T17, 3T17 2, and 3T17 3.

Image: Compatible shed model with the right hinge location highlighted.

Tähtis: This hinge is not universal and will not function correctly with other shed models or for the left side of the door.

Paigaldusjuhised

Follow these steps to replace the right-side hinge on your Rubbermaid Slide-Lid Resin Shed.

1. Koguge tööriistu: You will need a screwdriver (appropriate for the existing hinge screws) and potentially a small pry tool if the old hinge is stuck.
2. Eemaldage vana hinge: Carefully open the shed door to access the existing right hinge. Using your screwdriver, remove the screws securing the old hinge to the shed structure and the door. Keep the screws if they are in good condition, otherwise, use new ones of the same type and size.
3. Kontrolli ala: Clean any debris or residue from the hinge mounting area on both the shed and the door. Ensure the surface is flat and clear for the new hinge.
4. Position New Hinge: Align the new Steel Core Right Hinge 3T17 with the screw holes on the shed door and the shed frame. Ensure the hinge is oriented correctly for the right side.


Pilt: Ülemine view of the hinge during installation, showing alignment.

5. Secure Hinge: Insert and tighten the screws to secure the hinge. Do not overtighten, as this can strip the plastic or damage the hinge. Ensure the hinge is firmly attached but still allows for smooth door movement.

Pilt: Külg view of the hinge after installation.
6. Testi ukse toimimist: Gently open and close the shed door several times to ensure the new hinge operates smoothly and the door aligns correctly. Make any minor adjustments to screw tightness if necessary.

Operating the Shed Door

After successful installation of the Steel Core Right Hinge 3T17, the shed door should operate as intended. Open and close the door by sliding it along its track. Avoid forcing the door if it encounters resistance. Ensure the door is fully closed to protect contents from weather and pests.

Hooldus

• Regulaarne ülevaatus: Periodically inspect the hinge for any signs of wear, cracks, or loose screws. Address any issues promptly to prevent further damage.
• Puhastamine: Keep the hinge and surrounding area clean from dirt, dust, and debris. A damp cloth can be used for cleaning. Avoid harsh chemicals that may degrade the plastic material.
• Määrimine (valikuline): If the door movement feels stiff, a small amount of silicone-based lubricant can be applied to the moving parts of the hinge and the shed door tracks. Avoid oil-based lubricants as they can attract dirt.
• Vältige mõju: Prevent impacts to the shed door and hinge, especially from lawn equipment or heavy objects, as this can cause damage.

Veaotsing

Tehnilised andmed

• Mudeli number: 3T17 3
• Part Number Replaced: 3T17, 3T17 2, 3T17 3
• Compatible Shed: Rubbermaid 6 ft. x 5 ft. Slide-Lid Resin Shed (Part # 5L40, Model # 1800005)
• Materjal: Reinforced Plastic (Nylon) with Steel Core
• Toote mõõtmed: 2 cm P x 1.5 cm L
• Paigaldustüüp: Näokinnitus
• Värv: Mottled Gray
• Kauba kaal: Ligikaudu 1 nael
• Tootja: MVAW
• UPC: 704751987022

Image: Hinge dimensions shown with a measuring tape.

Garantii ja tugi

This product is manufactured in the USA and comes with US-based support and warranty service. For any issues or questions regarding the Steel Core Right Hinge 3T17, please contact the manufacturer, MVAW, or the seller, Majestic Valley Artifact Works, through the platform where the purchase was made. Refer to your purchase documentation for specific warranty terms and contact information.

The standard return policy allows for returns within 30 days for refund or replacement, as per the seller's terms.
