Philips Uni Cone Compact Pendant Lamp MPK561 #68009600 Instruction Manual

1. Sissejuhatus

This manual provides essential instructions for the safe installation, operation, and maintenance of your Philips Uni Cone Compact Pendant Lamp, model MPK561 #68009600. Please read this manual thoroughly before installation and keep it for future reference.

2. Ohutusalane teave

HOIATUS: Electrical installation should only be performed by a qualified electrician. Disconnect power before installation or servicing.

  • Ensure the main power supply is switched off before commencing any work.
  • Veenduge, et tarnevoldtage vastab voltage specified on the luminaire label.
  • Do not install the luminaire on a damp või juhtiv pind.
  • Kasutage ainult määratud lamp tüübid ja midatages. This luminaire uses a G12 base metal halide lamp (70W).
  • Hoidke tuleohtlikud materjalid valgustist eemal.
  • Ärge puudutage lamp or luminaire housing immediately after use, as they may be hot.

3. Pakendi sisu

Enne paigaldamist veenduge, et kõik komponendid on olemas ja kahjustamata.

  • Philips Uni Cone Compact Pendant Lamp fixture (1 unit)
  • Paigaldusriistvara (kruvid, ankrud)
  • Paigaldusjuhised (käesolev juhend)
  • Märkus: Lamp bulb (G12, 70W metal halide) may be included or sold separately depending on the specific product package. Refer to your purchase details.

4. Paigaldusjuhised

Nõuetekohaseks paigaldamiseks järgige neid samme. Soovitatav on professionaalne paigaldus.

  1. Valmistage ette paigaldusala: Ensure the power supply to the installation area is switched off at the circuit breaker. Mark the desired mounting location on the ceiling.
  2. Paigaldage laeplaat: Secure the provided ceiling plate to the ceiling using appropriate screws and anchors. Ensure it is firmly attached to a structural element.
  3. Ühendage juhtmestik: Connect the electrical wires from the ceiling to the luminaire's terminal block. Ensure correct polarity (Live, Neutral, Earth). All connections must be secure.
  4. Valgusti kinnitamine: Carefully attach the pendant lamp fixture to the ceiling plate, ensuring all connections are properly seated and secured. Adjust the suspension cables to the desired height.
  5. Paigaldage Lamp Pirn: If not already installed, insert the G12 metal halide lamp l sisseamp holder. Ensure it is seated correctly and securely. Do not overtighten.
  6. Lõplik kontroll: Double-check all connections and ensure the luminaire is securely mounted. Restore power at the circuit breaker.
Philips Uni Cone Compact Pendant Lamp

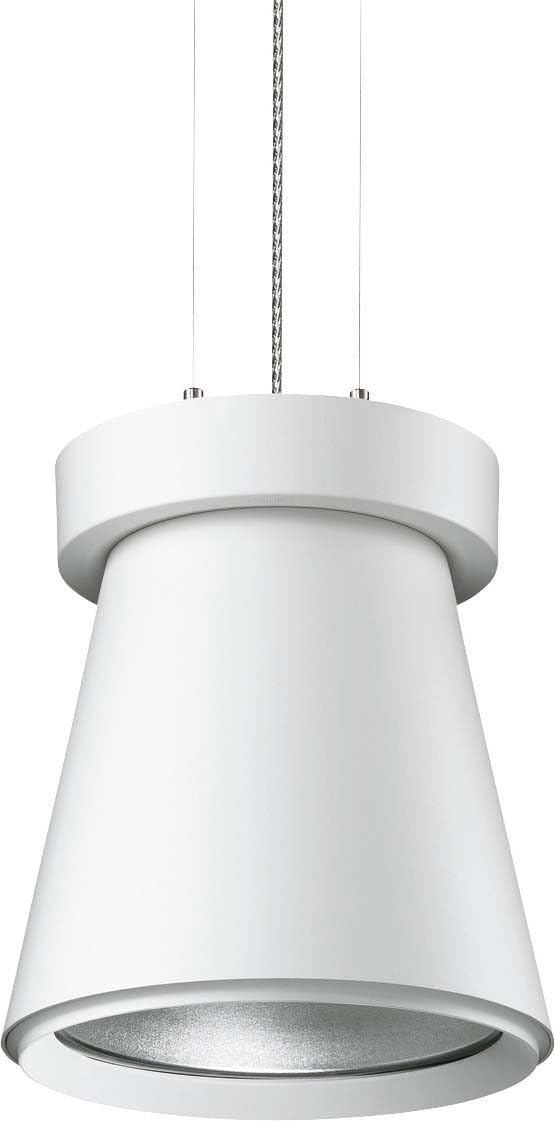

Image 1: Philips Uni Cone Compact Pendant Lamp. This image shows the white conical pendant lamp suspended by two thin wires and a braided power cable, highlighting its design and suspension mechanism.

5. Kasutusjuhised

The Philips Uni Cone Compact Pendant Lamp is designed for straightforward operation.

  • Toide sisse/välja: Once installed and wired correctly, the lamp is operated via a standard wall switch connected to its power supply.
  • Soojenemisaeg: Metallhalogeniid lamps require a short warm-up period to reach full brightness and color stability. This typically takes a few minutes.
  • Taaskäivitamise aeg: Kui lamp is switched off, it may require a cool-down period before it can be reignited. Attempting to switch it on immediately after turning it off may result in a delay before it lights up again.

6. Hooldus

Regular maintenance ensures optimal performance and longevity of your luminaire.

  • Puhastamine: Disconnect power before cleaning. Use a soft, dry cloth to wipe the exterior of the luminaire. Do not use abrasive cleaners or solvents.
  • Lamp Asendamine: Disconnect power and allow the lamp to cool completely before attempting replacement. Carefully remove the old G12 lamp and insert a new one of the same type and wattage (70W metal halide). Ensure proper seating.
  • Ülevaatus: Periodically inspect the suspension cables and electrical connections for any signs of wear or damage. If any damage is found, consult a qualified electrician.

7. Veaotsing

ProbleemVõimalik põhjusLahendus
Lamp ei sütti.Toiteallikas puudub.
Vigane lamp pirn.
Vale juhtmestik.		Kontrollige kaitselülitit ja seinakontakti.
Asenda lamp pirn.
Kontrollige juhtmestiku ühendusi (konsulteerige elektrikuga).
Lamp väreleb või tuhmub.Lamp elu lõpule lähenemas.
Lahtine ühendus.
Vale lamp tüüp.		Asenda lamp pirn.
Kontrollige elektriühendusi.
Ensure correct G12 70W metal halide lamp kasutatakse.
Lamp takes a long time to warm up.Normal operation for metal halide lamps.
Lamp elu lõpule lähenemas.		Allow sufficient warm-up time.
Kaaluge l-i väljavahetamistamp bulb if warm-up time becomes excessively long.

8. Tehnilised andmed

  • Kaubamärk: Philips
  • Mudeli number: MPK561 #68009600
  • Lamp Tüüp: Metallhalogeniid Lamp
  • Lamp Alus: G12
  • Lamp Wattage: 70 W
  • Pirnide arv: 1
  • Tööseade: Standard EVG (Electronic Ballast)
  • Materjal: Alumiiniumist
  • Toiteallikas: Juhtmega elekter
  • Paigaldustüüp: Monopunkt

9. Garantii ja tugi

For warranty information and technical support, please refer to the documentation provided with your purchase or visit the official Philips webveebisait. Hoidke ostutõendit garantiinõuete esitamiseks.

Philipsi ametlik Websait: www.philips.com
